CAM CHAIN
DR200SE 2007 (K7) USA (E03)

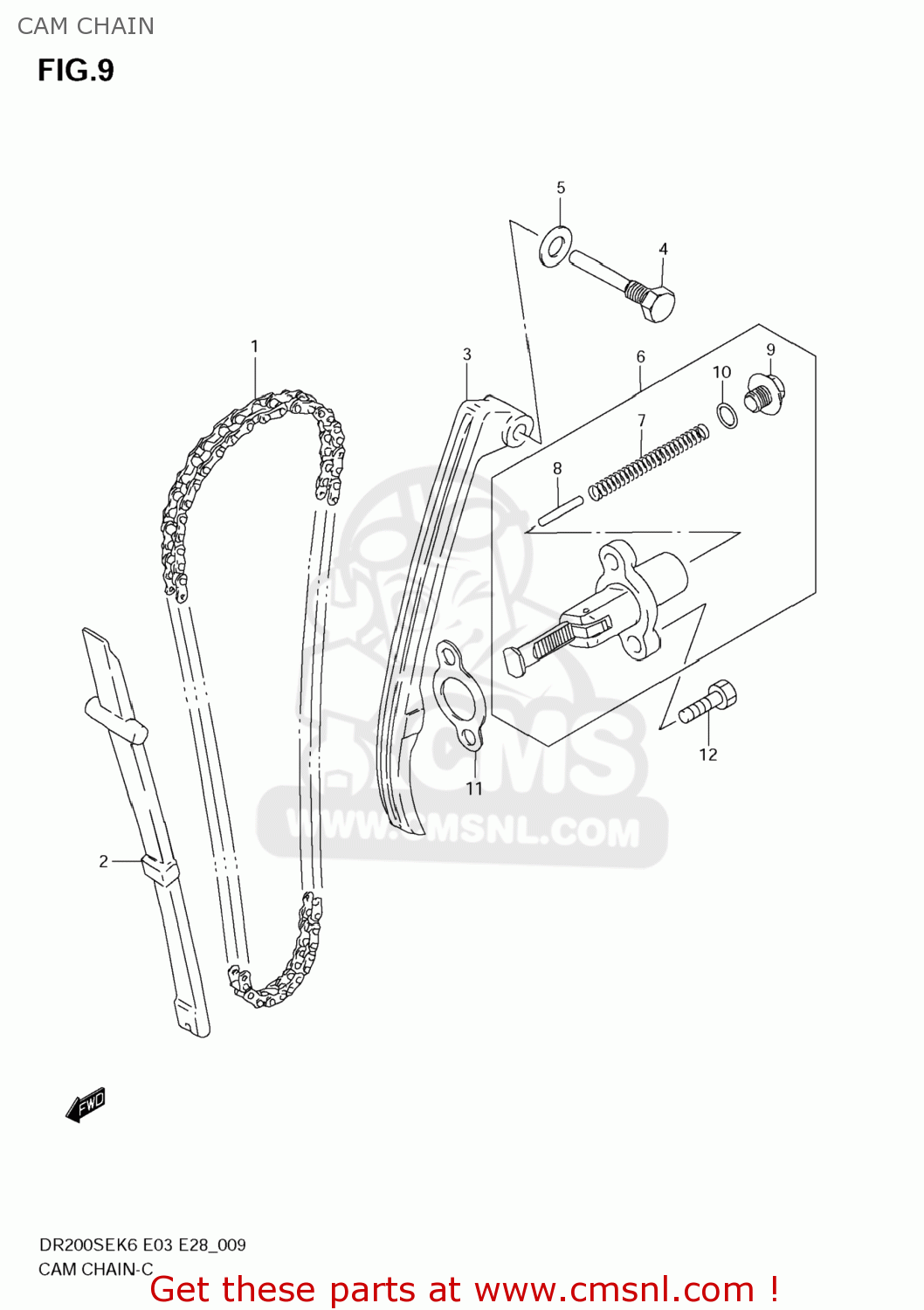

Cam chain diagram DR200SE 2007 (K7) USA (E03)
CAM CHAIN DR200SE 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1276042A00
ref: 1
CHAIN,CAMSHAFT DRIVE 102L
€ 46.00
2
1277118A00
ref: 2
GUIDE,CAM CHAIN
€ 19.50
3
1281118A01
ref: 3
TENSIONER,CAM CHAIN
€ 22.50
4
1281232410
ref: 4
BOLT,CAM CHAIN TENSIONER
€ 3.50
5
0916808016
ref: 5
GASKET(8.2X14X1) (NAS)
€ 1.00
6
1283019B02
ref: 6
ADJUSTER ASSY,TENSIONER
€ 54.50
7
1283319B00
ref: 7
SPRING
€ 2.00
8
1283519B00
ref: 8
BAR
€ 2.00
9
1283419B00
ref: 9
PLUG
€ 8.50
10
1283202A00
ref: 10
O RING
€ 2.00
11
1283719B10
ref: 11
GASKET,TENSIONER ADJUSTER (NAS)
€ 3.00
12
015000620B
ref: 12
BOLT
€ 1.50
