GEAR SHIFTING
DR200SE 2007 (K7) USA (E03)

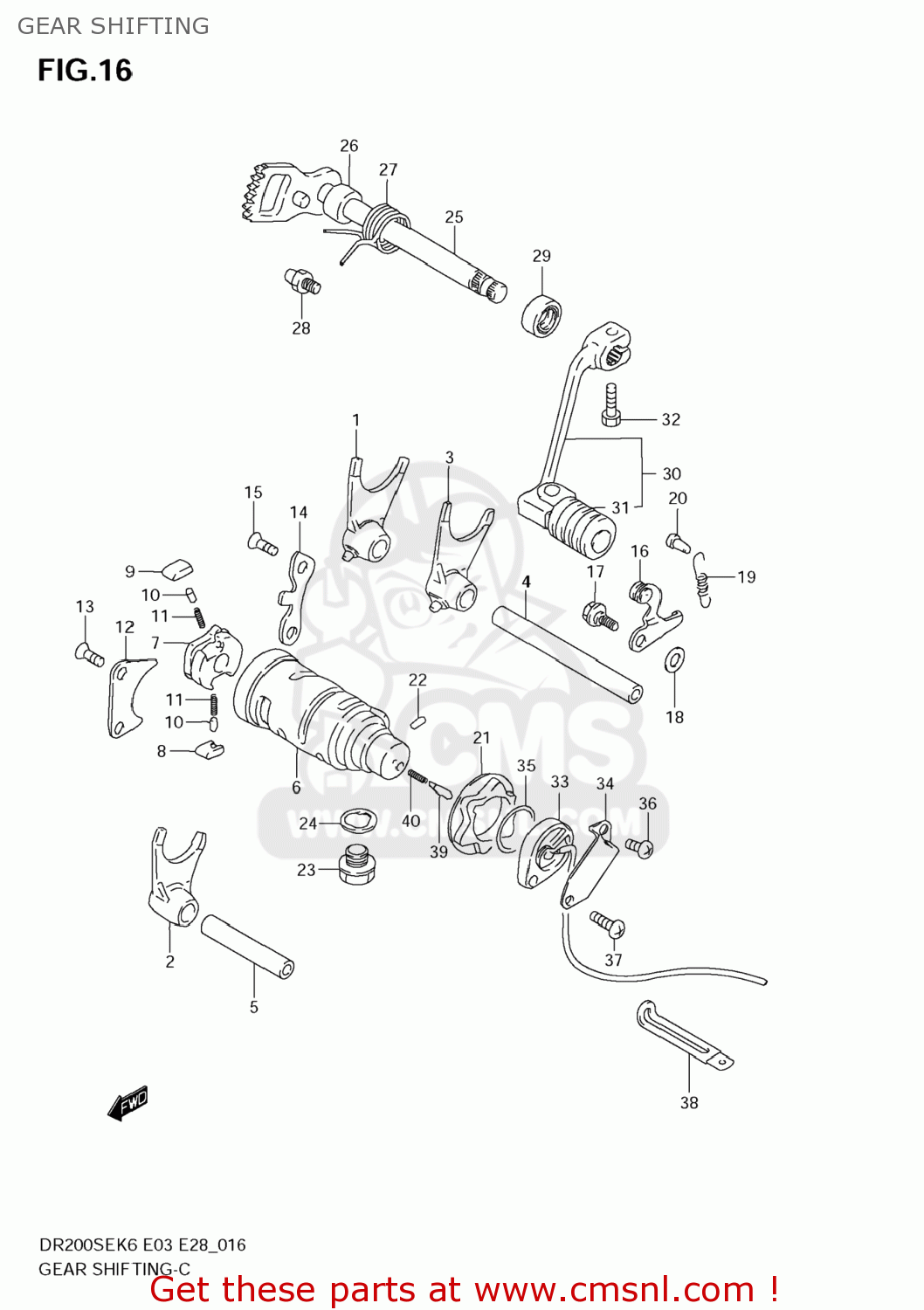

Gear shifting diagram DR200SE 2007 (K7) USA (E03)
GEAR SHIFTING DR200SE 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2521142A02
ref: 1
FORK,GEAR SHIFT NO.1
€ 47.50
2
2522142A02
ref: 2
FORK,GEAR SHIFT NO.2
€ 36.00
3
2523142A02
ref: 3
FORK,GEAR SHIFT NO.3
€ 34.00
4
2541116701
ref: 4
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
5
2542135410
ref: 5
SHAFT,GEAR SHIFT FORK NO.2
€ 19.00
6
2531042A00
ref: 6
CAM,GEAR SHIFT
€ 68.00
7
2532231310
ref: 7
GEAR,GEAR SHIFT CAM DRIVEN
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0912606011
ref: 13
SCREW(6X12)
€ 2.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0912606011
ref: 15
SCREW(6X12)
€ 2.00
16
2535042A01
ref: 16
STOPPER,GEAR SHIFT CAM
€ 10.00
17
0911106054
ref: 17
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944310036
ref: 19
SPRING
€ 3.50
20
0922304001
ref: 20
RIVET
€ 1.50
21
2538104700
ref: 21
PLATE,GEAR SHIFT CAM STOPPER
€ 13.00
22
0422104069
ref: 22
PIN
€ 2.00
23
0924714026
ref: 23
PLUG(14X12)
€ 3.50
24
0916814002
ref: 24
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
25
2551005201
ref: 25
SHAFT,GEAR SHIFT
€ 42.50
26
0918012068
ref: 26
SPACER(12X20X15.3)
€ 3.00
27
0944426023
ref: 27
SPRING
€ 3.00
28
2567101011
ref: 28
STOPPER,GEAR SHIFT ARM
€ 3.00
29
0928512002
ref: 29
09285-12006
OIL SEAL
€ 7.00
30
2560042A00
ref: 30
LEVER ASSY,GEAR SHIFT
€ 26.00
31
2565203D00
ref: 31
RUBBER,GEAR SHIFT PEDAL
€ 3.50
32
015000620B
ref: 32
BOLT
€ 1.50
33
3772042A30
ref: 33
BASE ASSY,NEUTRAL SW TERMINAL
€ 26.00
34
3772142A00
ref: 34
PROTECTOR,GEAR SHIFT SW
€ 3.00
35
0928022001
ref: 35
O RING(D:2.4,ID:21.8)
€ 2.00
36
021120508A
ref: 36
SCREW
€ 2.00
37
021120516A
ref: 37
SCREW
€ 2.00
38
0940406429
ref: 38
CLAMP(L:45)
€ 2.50
39
0920905011
ref: 39
PIN(5X15.5)
€ 2.00
40
0944004010
ref: 40
SPRING
€ 1.50
