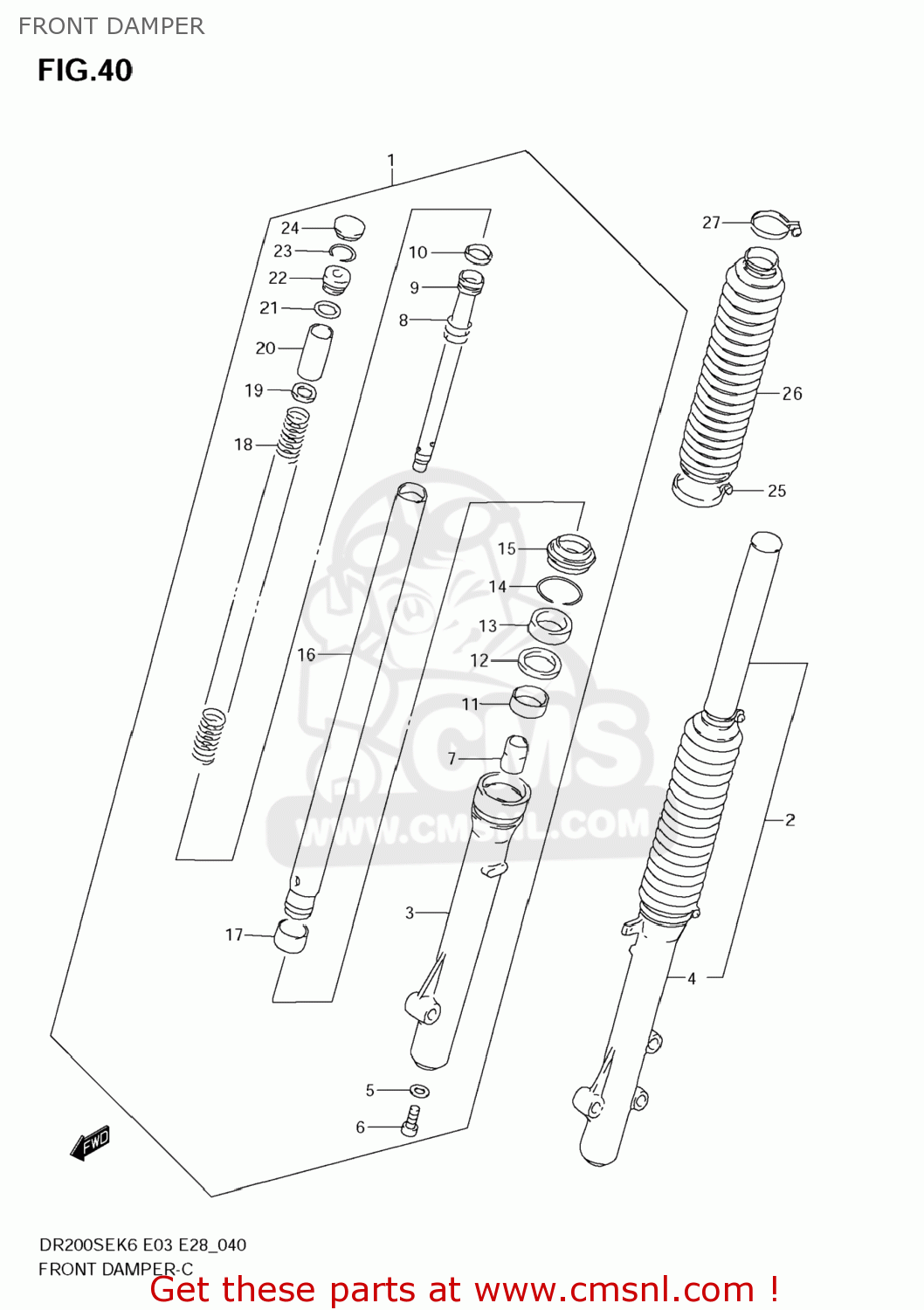

FRONT DAMPER

ref

part #

description

quantity

1

5110342AA0
ref: 1

DAMPER ASSY,FR FORK,R

€ 506.00

2

5110442AA0
ref: 2

DAMPER ASSY,FR FORK,L

€ 506.00

3

5113101A01
ref: 3

TUBE,OUTER,R

€ 195.00

4

5114101A01
ref: 4

TUBE,OUTER,L

€ 175.00

5

5114836011
ref: 5

GASKET (NAS)

€ 4.00

6

5114706F10
ref: 6

BOLT

€ 3.00

7

5119543530
ref: 7

PIECE,OIL LOCK

€ 12.50

8

5117701A00
ref: 8

SPRING,REBOUND

€ 2.50

9

5114642AA0
ref: 9

CYLINDER

€ 45.50

10

5119645200
ref: 10

RING,PISTON

€ 5.50

11

5115233300
ref: 11

BUSH,GUIDE

€ 11.50

12

5116830B00
ref: 12

SPACER,SEAL

€ 5.00

13

5115319D10
ref: 13

SEAL,OIL 35X48X11

€ 14.00

14

5115601A00
ref: 14

RING,OIL SEAL STOPPER

€ 3.50

15

5117301A00
ref: 15

SEAL,DUST

€ 10.00

16

5111001A30
ref: 16

TUBE,INNER

€ 242.00

17

5112133300
ref: 17

PISTON

€ 10.50

18

5117142AA0
ref: 18

SPRING,MAIN

€ 29.50

19

5119220510
ref: 19

SPRING,JOINT

€ 2.00

20

5117642AA0
ref: 20

SPACER,SPRING

€ 5.50

21

5118131030
ref: 21

O RING

€ 3.50

22

5117547400
ref: 22

SPRING SEAT B

€ 5.50

23

5116947400
ref: 23

RING,STOPPER

€ 2.50

24

5118931230
ref: 24

CAP

€ 6.50

25

5157642AA0
ref: 25

BAND,BOOT LWR

€ 5.00

26

5157101A00019
ref: 26

BOOT

€ 32.50

27

5157501A00
ref: 27

BAND

€ 6.50
