FRONT MASTER CYLINDER
DR200SE 2007 (K7) USA (E03)

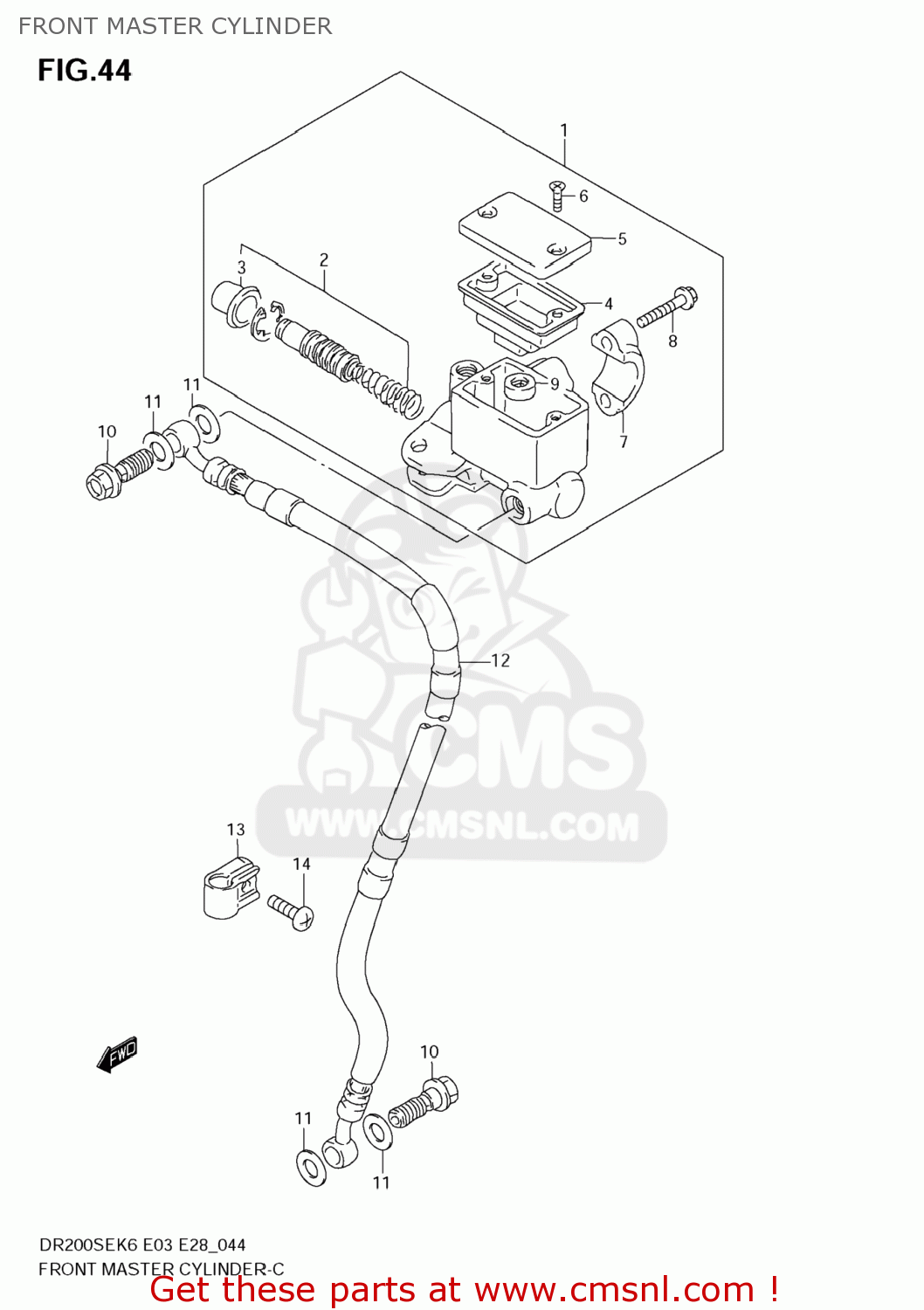

Front master cylinder diagram DR200SE 2007 (K7) USA (E03)
FRONT MASTER CYLINDER DR200SE 2007 (K7) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960003D01
ref: 1
CYLINDER ASSY,FR MASTER
€ 175.50
2
6960038810
ref: 2
PISTON/CUP SET
€ 42.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
5966903D00
ref: 5
CAP
€ 14.00
6
021220412B
ref: 6
SCREW
€ 2.00
7
5967103D00
ref: 7
HOLDER
€ 13.00
8
5967527C00
ref: 8
BOLT
€ 2.50
9-1
5974814500
ref: 9-1
SEPARATOR
€ 6.00
9-2
5974836E00
ref: 9-2
SEPARATOR
€ 5.00
10
0936010061
ref: 10
BOLT UNION
€ 6.50
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12
5948044AA1
ref: 12
HOSE,FR BRAKE
€ 183.00
13
5862107A10
ref: 13
58621-07A20
CLAMP,BRAKE HOSE
€ 3.50
14
021420616B
ref: 14
SCREW
€ 1.50
