CARBURETOR
DR250 1993 (P) USA (E03)

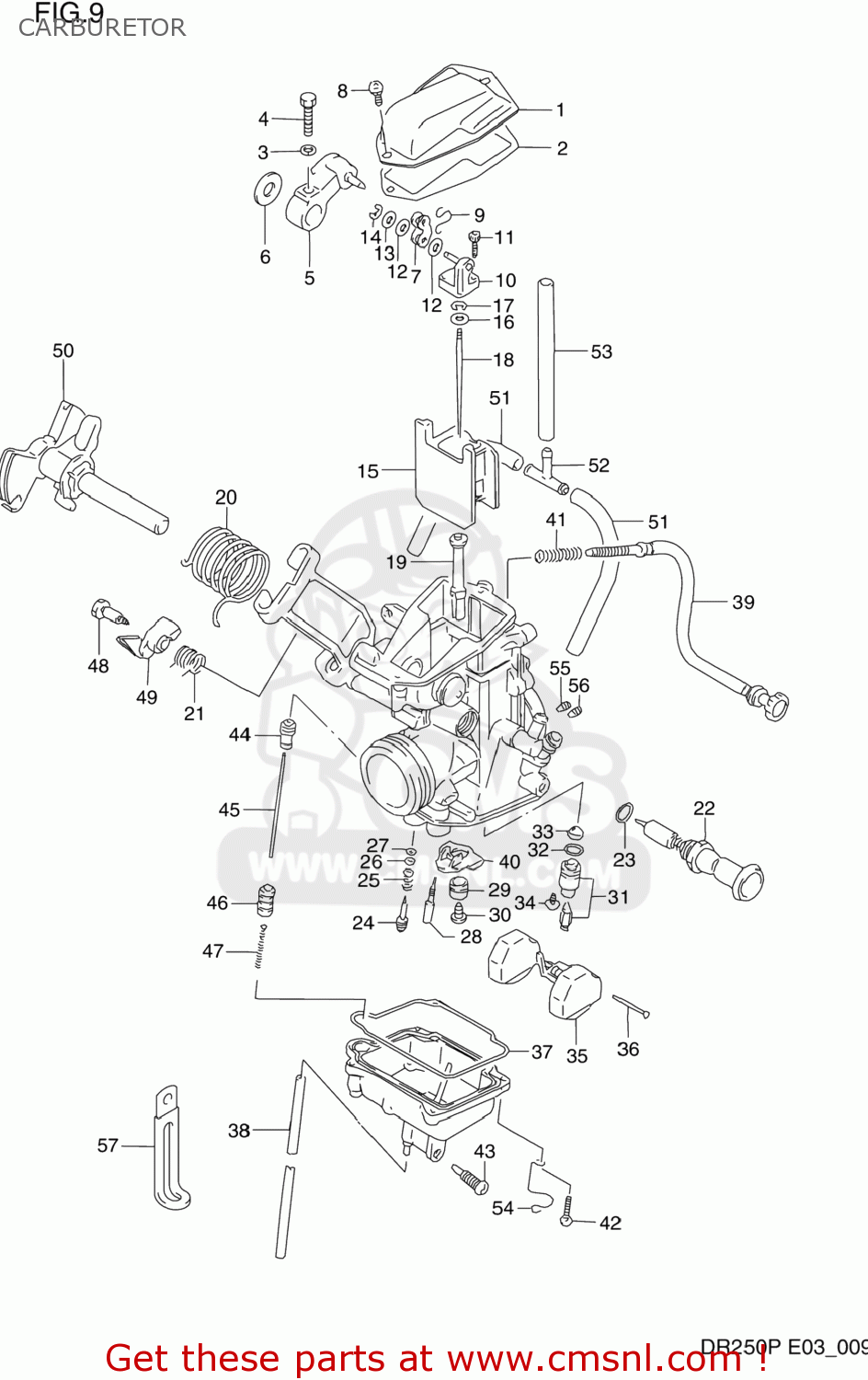

Carburetor diagram DR250 1993 (P) USA (E03)
CARBURETOR DR250 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320015D00
ref:
13200-15D01
CARBURETOR ASSEMBLY
€ 153.00
1320015D01
ref:
CARBURETOR ASSEMBLY
€ 153.00
1320015E80
ref:
CARBURETOR ASSEMBLY
€ 262.50
1
1326127A00
ref: 1
COVER,CARBURETOR,TOP
€ 14.50
2
1326627A00
ref: 2
GASKET,CARBURETOR TOP (NAS)
€ 6.00
3
1361445010
ref: 3
08321-0105A
WASHER
€ 2.50
4
1361343010
ref: 4
01500-0516B
BOLT
€ 1.50
5
1354114A00
ref: 5
13541-13E00
ARM,THROTTLE
€ 34.50
6
1357438200
ref: 6
13575-38200
RING,THROTTLE SHAFT
€ 4.00
7
1344714A00
ref: 7
PLATE
€ 16.50
8
0211234108
ref: 8
02112-3410A
SCREW
€ 2.00
9
1344614A00
ref: 9
SPRING
€ 4.00
10
1339827A02
ref: 10
CONNECTOR
€ 18.00
11
1356614A00
ref: 11
02112-0312B
SCREW
€ 2.50
12
1344514A00
ref: 12
GASKET (NAS)
€ 3.00
13
1344914A00
ref: 13
09160-04024
WASHER
€ 2.00
14
1329849000
ref: 14
13415-38300
E-RING
€ 2.00
15
1355114D00
ref: 15
VALVE,PISTON
€ 126.00
16
1338247010
ref: 16
WASHER,JET NEEDLE
€ 3.00
17
1339410010
ref: 17
CLIP
€ 4.50
18
1338315D00
ref: 18
NEEDLE,JET
€ 0.00
19
0949400683
ref: 19
JET,NEEDLE (P-9)
€ 0.00
20
1357342A20
ref: 20
SPRING
€ 9.00
21
1349414D00
ref: 21
SPRING
€ 7.00
22
1341114D00
ref: 22
PLUNGER ASSY
€ 39.00
23
1327847090
ref: 23
O RING
€ 2.00
24
1327947070
ref: 24
SCREW,PILOT
€ 11.50
25
1326847070
ref: 25
SPRING
€ 5.00
26
1329129900
ref: 26
WASHER
€ 2.00
27
1329529900
ref: 27
O RING,PILOT AIR SCREW
€ 4.00
28-1
0949235018
ref: 28-1
JET,PILOT (35)
€ 0.00
28-2
0949242017
ref: 28-2
JET,PILOT(42.5)
€ 12.50
29
1333113A00
ref: 29
RING,MAIN JET FIXING
€ 5.50
30-1
0949126011
ref: 30-1
JET,MAIN(130)
€ 11.50
30-2
0949125011
ref: 30-2
JET,MAIN(127.5)
€ 10.00
30-3
0949125001
ref: 30-3
09491-25010
JET
€ 8.50
31
1337014D00
ref: 31
13370-05530
VALVE ASSEMBLY,NEEDLE
€ 63.00
32
1337444080
ref: 32
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
33
1337684110
ref: 33
13376-19F00
FILTER
€ 6.50
34
1360243410
ref: 34
SCREW
€ 2.50
35
1325028A00
ref: 35
FLOAT
€ 33.00
36
1325492311
ref: 36
PIN,FLOAT
€ 2.00
37
1325127A00
ref: 37
O RING,FLOAT CHAMBER
€ 9.00
38
1368418900
ref: 38
09355-30705-600
HOSE
€ 13.50
39
1326714D00
ref: 39
ADJUSTER ASSY
€ 44.50
40
1333114D00
ref: 40
13331-13E00
RING
€ 5.50
41
1326814D00
ref: 41
SPRING
€ 4.00
42
1360104148
ref: 42
SCREW
€ 2.50
43
1324713A00
ref: 43
13247-02340
SCREW,DRAIN
€ 5.50
44
1349944500
ref: 44
BOOT, ACCELE PUMP ROD
€ 11.00
45
1348714A00
ref: 45
ROD,PLUNGER
€ 7.00
46
1349327A00
ref: 46
PLUNGER
€ 9.00
47
1327109400
ref: 47
SPRING
€ 4.50
48
1361314A00
ref: 48
BOLT
€ 8.00
49
1349014D00
ref: 49
13490-14A00
LEVER
€ 9.50
50
1355315D00
ref: 50
SHAFT ASSEMBLY
€ 42.00
51-1
1368342A20
ref: 51-1
44420-44AR0
HOSE
€ 13.00
51-2
1368438A20
ref: 51-2
44420-44AR0
HOSE
€ 13.00
52
0936706002
ref: 52
JOINT,3 WAY
€ 3.00
53-1
1368342A20
ref: 53-1
44420-44AR0
HOSE
€ 13.00
53-2
1368438A20
ref: 53-2
44420-44AR0
HOSE
€ 13.00
54
1369214D00
ref: 54
13692-19C00
CLIP
€ 6.00
55
0949360004
ref: 55
JET,AIR(0.6)
€ 11.00
56
0949326004
ref: 56
JET,AIR(1.3)
€ 14.50
57
0940406401
ref: 57
09404-06432
CLAMP L:35
€ 2.50
