DR250 1993 (P) USA (E03)

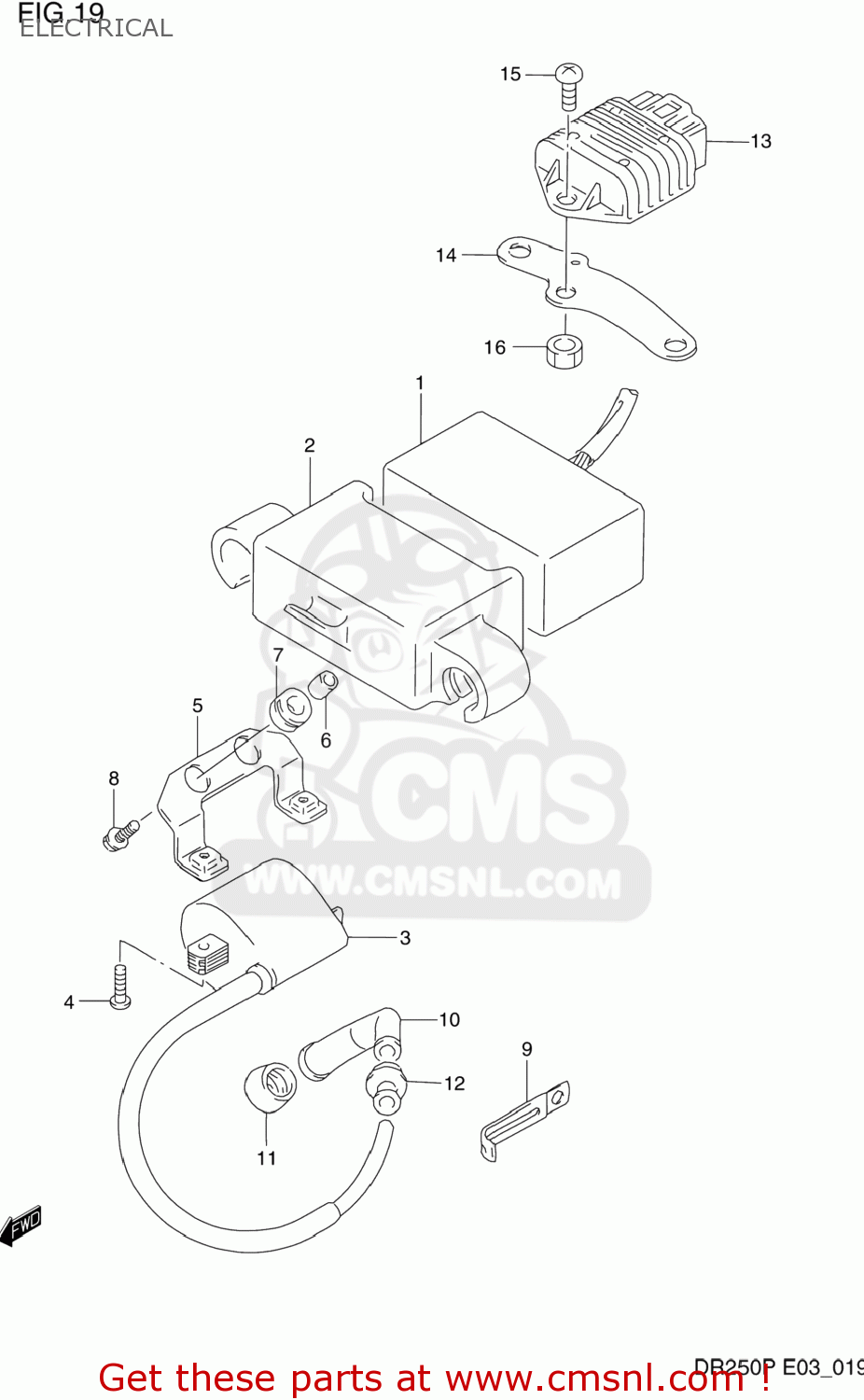

Electrical diagram DR250 1993 (P) USA (E03)
ELECTRICAL DR250 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3290014D00
ref: 1-1
CDI UNIT
€ 464.00
1-2
3290015D10
ref: 1-2
32900-14D00
CDI UNIT
€ 464.00
1-3
3290015D40
ref: 1-3
32900-14D30
CDI UNIT
€ 526.50
2
3298014D00
ref: 2
CUSHION,CDI UNIT
€ 15.50
3
3341014D00
ref: 3
COIL ASSY,IGNITION
€ 101.00
4
0211206206
ref: 4
02112-0620A
SCREW
€ 2.00
5
3341614D00
ref: 5
BRACKET,IGNITION COIL
€ 7.00
6
0918006027
ref: 6
09180-06258
SPACER (6.3X9.1X6.7)
€ 3.00
7
0932009036
ref: 7
CUSHION
€ 4.00
8
0111406166
ref: 8
BOLT
€ 2.50
9
0940406422
ref: 9
09404-06429
CLAMP
€ 2.50
10
3351043010
ref: 10
CAP,SPARK PLUG
€ 11.50
11
3354124510
ref: 11
33541-47D00
SEAL,SPARK PLUG CAP
€ 7.00
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
€ 4.50
13
3250014D00
ref: 13
REGULATOR ASSY
€ 99.00
14
3251114D00
ref: 14
BRACKET,REGULATOR
€ 0.00
15
0214206126
ref: 15
02142-0612A
SCREW
€ 2.00
16
0831012066
ref: 16
08310-0006A
NUT
€ 2.00
