WIRING HARNESS
DR250 1993 (P) USA (E03)

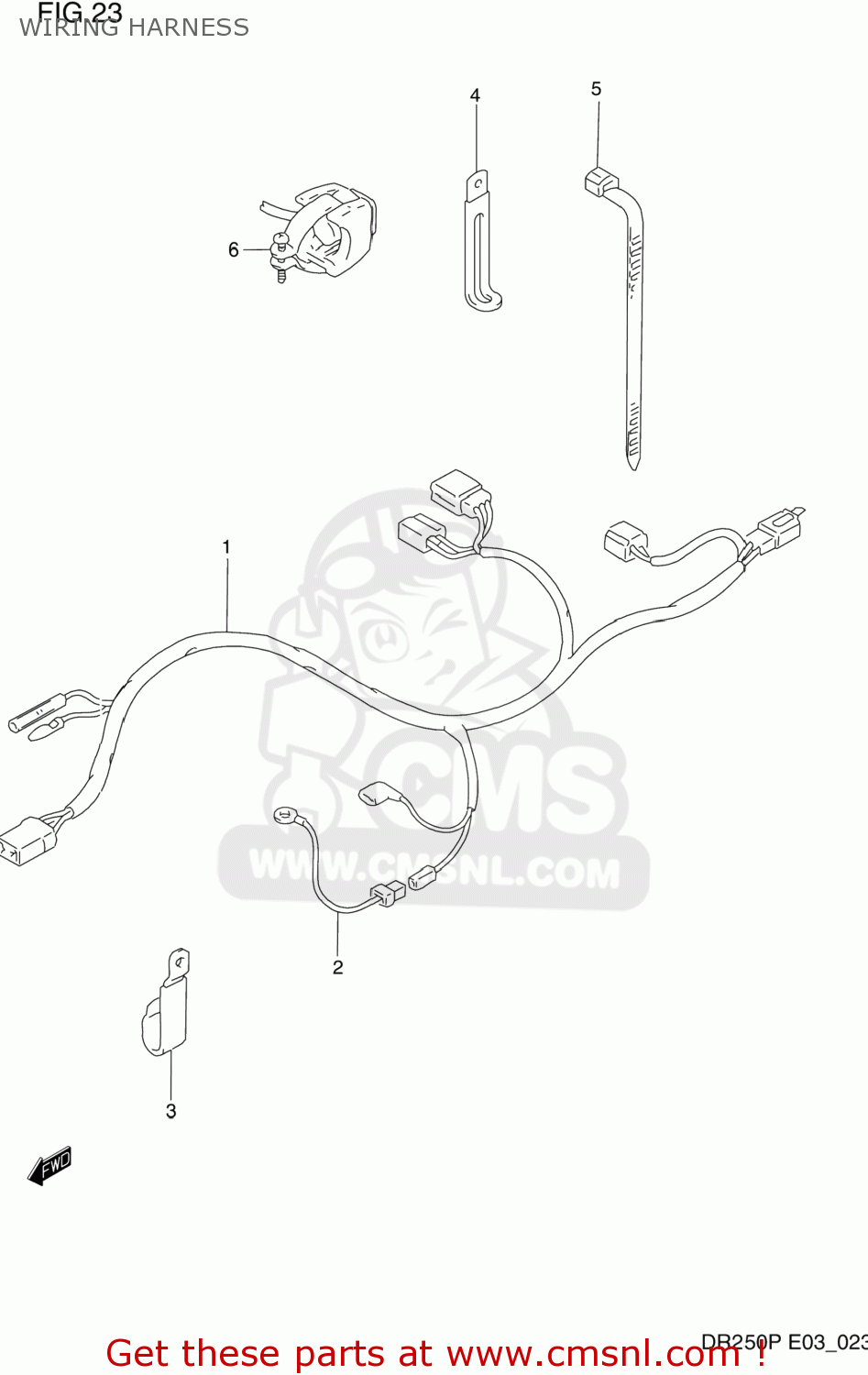

Wiring harness diagram DR250 1993 (P) USA (E03)
WIRING HARNESS DR250 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3661014D00
ref: 1
HARNESS,WIRING
€ 77.00
2
3685114D00
ref: 2
36851-05D00
WIRE
€ 3.00
3
0940306307
ref: 3
CLAMP
€ 4.50
4-1
0940406422
ref: 4-1
09404-06429
CLAMP
€ 2.50
4-2
0940406424
ref: 4-2
09404-06432
CLAMP
€ 2.00
4-3
0940408402
ref: 4-3
09404-08420
CLAMP
€ 3.50
5-1
0940714403
ref: 5-1
CLAMP(L:125)
€ 2.50
5-2
0940718402
ref: 5-2
CLAMP(L:165)
€ 2.50
5-3
0940725401
ref: 5-3
CLAMP(L:235)
€ 4.00
6
3782014D00
ref: 6
37820-14X50
SWITCH ASSEMBLY
€ 24.50
