CRANKCASE

DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

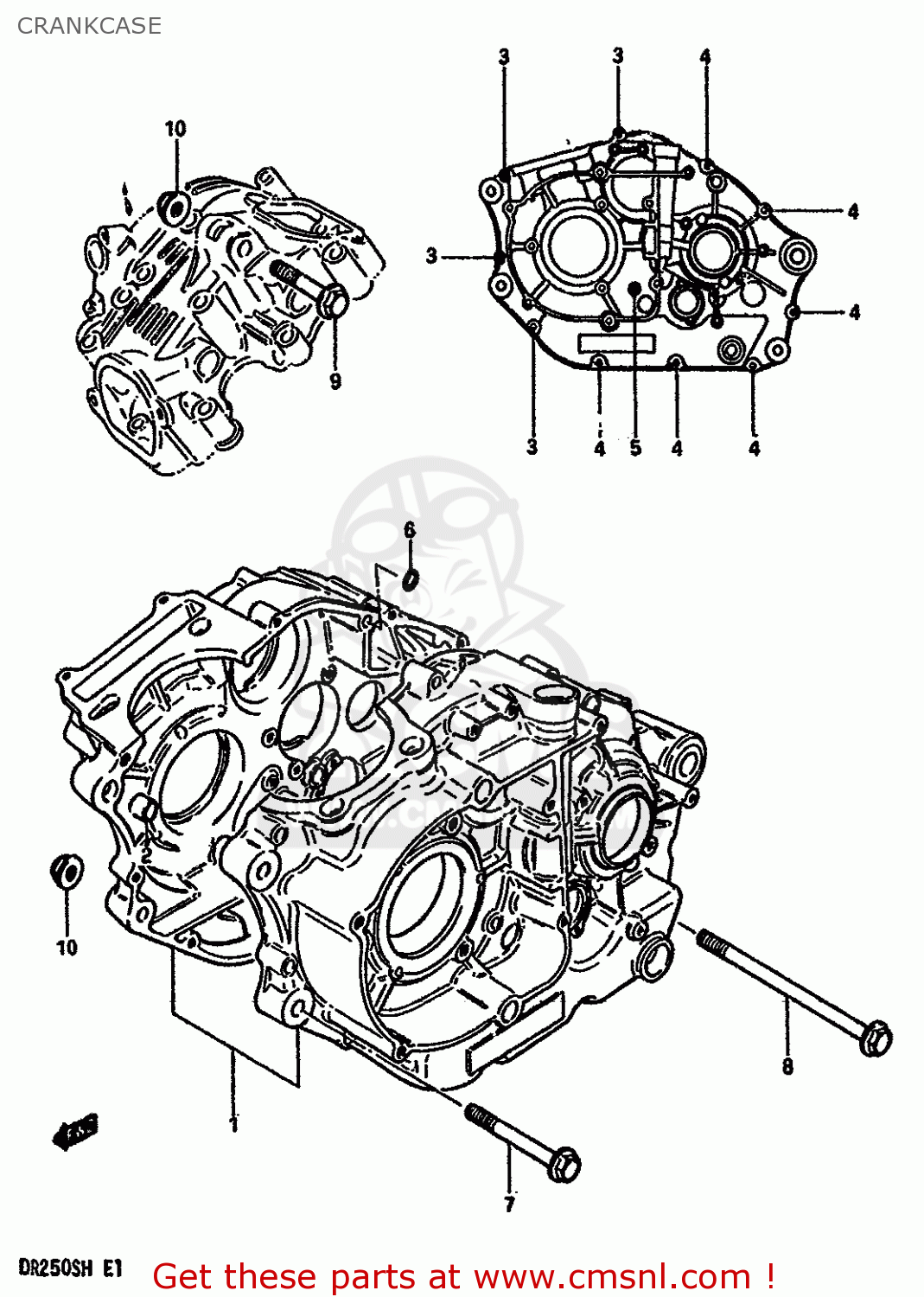

Crankcase diagram DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1130038850
ref: 1

CRANKCASE ASSEMBLY

€ 660.50

0920613001
ref: 2

PIN

€ 2.50

0154706354
ref: 3

BOLT 6X35

€ 3.00

0154706454
ref: 4

BOLT

€ 3.00

0154706555
ref: 5

BOLT (6X55)

€ 3.00

0928009004
ref: 6

O-RING

€ 4.00

0910308075
ref: 7

BOLT 8X67

€ 6.50

0910308080
ref: 8

BOLT

€ 5.50

9-1

0910308082
ref: 9-1
MODEL E

BOLT 8X50

€ 7.00

9-2

0910308081
ref: 9-2
MODEL F/G/H

BOLT(8X50)

€ 3.50

0831931085
ref: 10

NUT

€ 2.50
