CYLINDER

DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

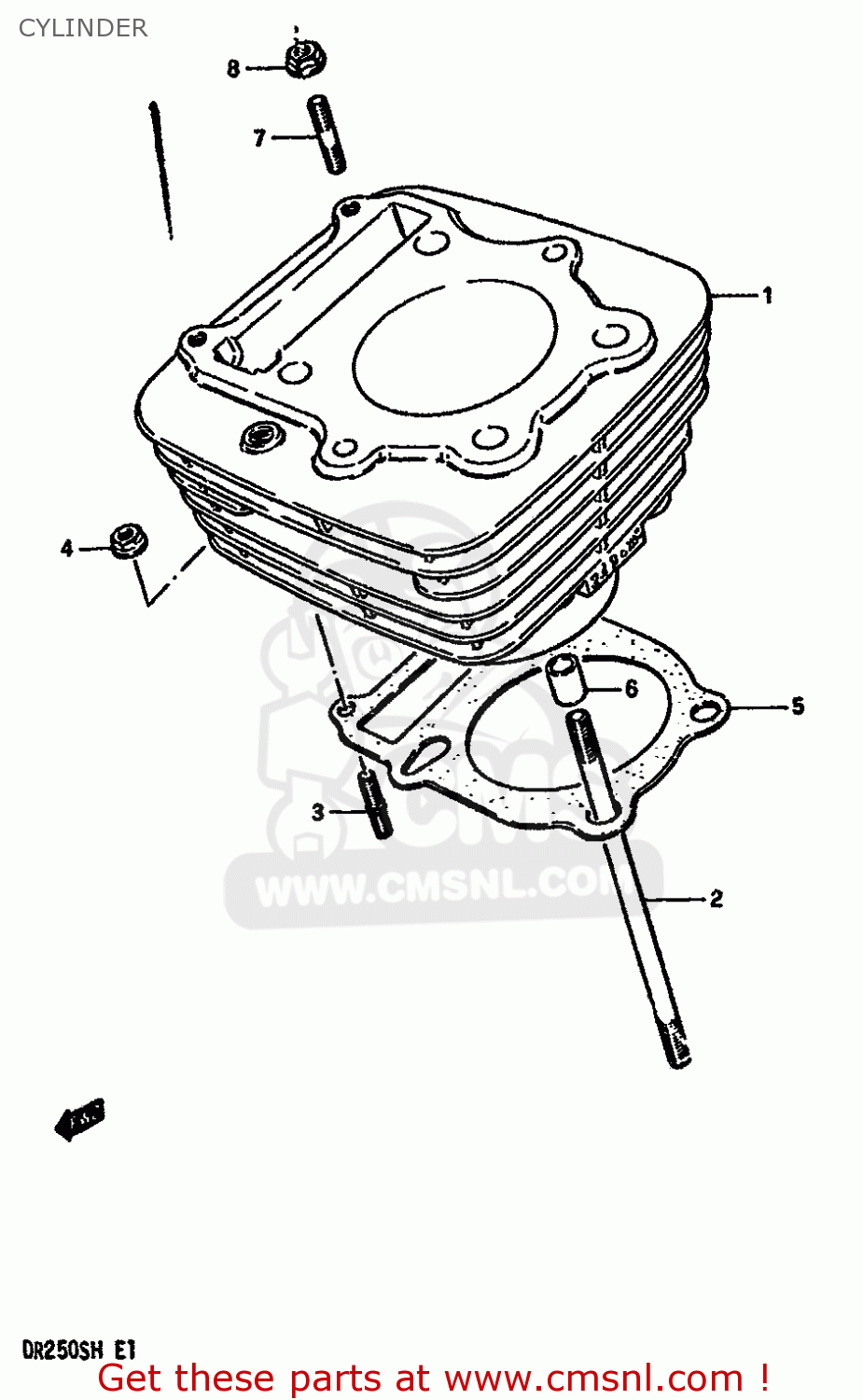

Cylinder diagram DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

CYLINDER DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

CYLINDER DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

prices are in EUR

ref

part #

description

quantity

1-1

1121038211
ref: 1-1

CYLINDER

€ 1,003.50

1-2

1121038231
ref: 1-2
E4

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106255
ref: 3

STUD 6X25

€ 2.00

4

0831616064
ref: 4

NUT 6MM

€ 2.50

5

1124138202
ref: 5

GASKET,CYLINDER (MCA)

€ 9.50

6

0920613001
ref: 6

PIN

€ 2.50

7

0142106305
ref: 7

BOLT (6X30)

€ 2.00

8

0831616064
ref: 8

NUT 6MM

€ 2.50
