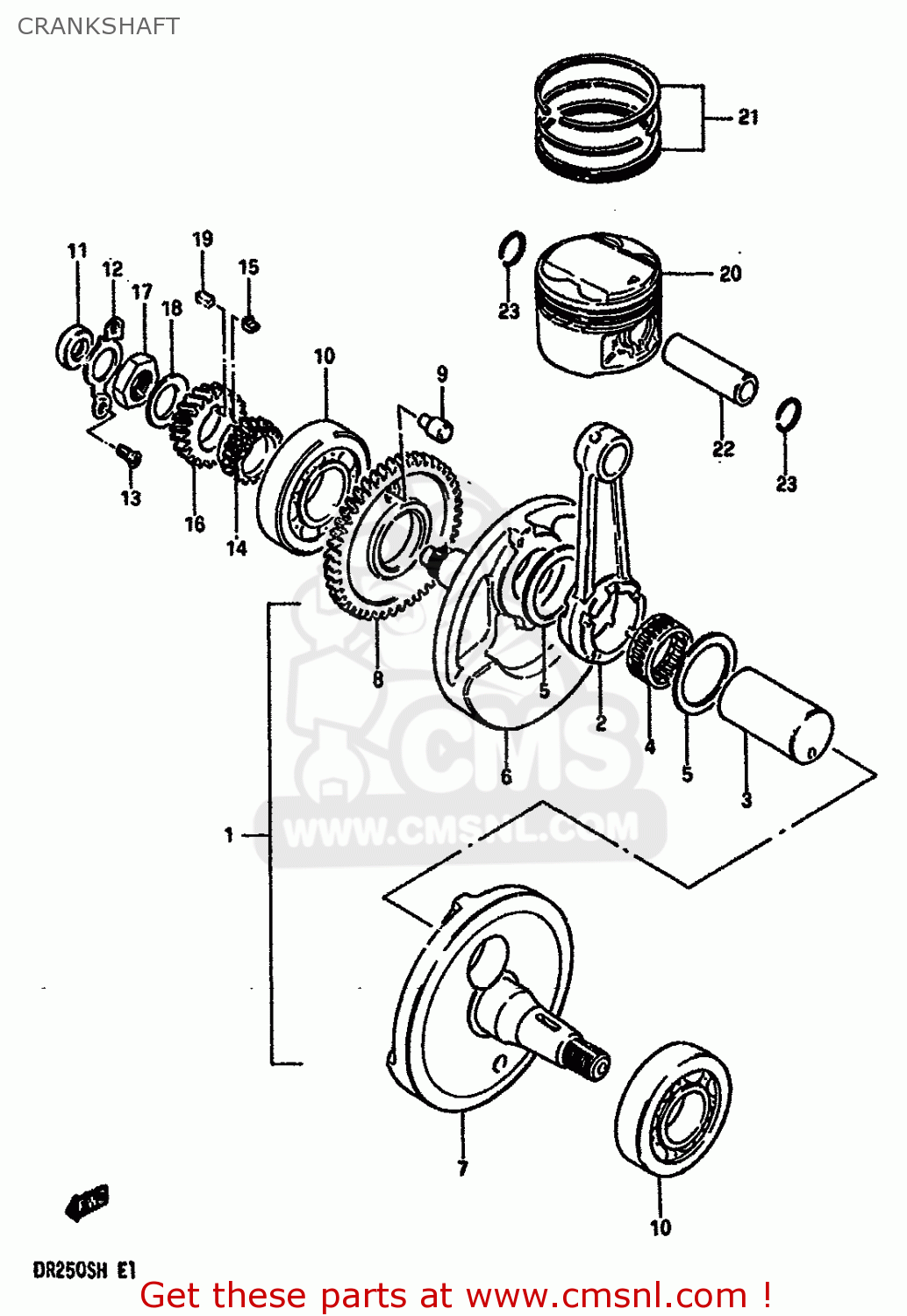

CRANKSHAFT

ref

part #

description

quantity

1

1220038201
ref: 1

CRANKSHAFT ASSEMBLY

€ 561.00

2

1216138201
ref: 2

ROD,CONNECTING

€ 129.50

3-1

1221138201
ref: 3-1
~E.NO.116058

PIN,CRANK

€ 38.00

3-2

1221138202
ref: 3-2
E.NO.116059~

PIN,CRANK

€ 38.00

4-1

0926331004
ref: 4-1
~E.NO.116058

BEARING(31X39X21)

€ 53.00

4-2

0926331007
ref: 4-2
E.NO.116059~

BEARING

€ 53.00

5

0916031002
ref: 5

WASHER(31X48.5X1)

€ 7.00

6

1222138200
ref: 6

CRANKSHAFT,R

€ 196.00

7

1226138200
ref: 7

CRANKSHAFT,LEFT

€ 148.00

8

1266138202
ref: 8

GEAR,CRANK BALANCER DRIVE

€ 128.00

9

0920912006
ref: 9

PIN

€ 6.50

10

0926230077
ref: 10

BEARING(30X72X19)

€ 47.50

11

0928214001
ref: 11

SEAL,OIL(14X26X6)

€ 38.00

12

1254838200
ref: 12

RETAINER,CRANKSHAFT BEARING,R

€ 4.50

13

0212205108
ref: 13

SCREW

€ 1.00

14

1273138200
ref: 14

SPROCKET,CAM CHAIN DRIVE(NT:21

€ 36.00

15

1274932400
ref: 15

KEY,SPROCKET

€ 13.50

16

2111138200
ref: 16

GEAR,PRIMARY DRIVE NO.21

€ 62.00

17

0914020008
ref: 17

NUT (20MM)

€ 4.00

18

0916420003
ref: 18

WASHER

€ 2.50

19

0942107002
ref: 19

KEY

€ 4.00

20-1

1211138201
ref: 20-1

PISTON (72.00MM)

€ 76.00

20-2

1211138201050
ref: 20-2
OPT

PISTON

€ 125.00

20-3

1211138201100
ref: 20-3
OPT

PISTON

€ 101.50

20-4

1211138211
ref: 20-4
E4

PISTON (STD)

€ 0.00

20-5

1211138211050
ref: 20-5
E4,OPT

PISTON (OS:0.5)

€ 100.50

20-6

1211138211100
ref: 20-6
E4,OPT

PISTON (OS:1.0)

€ 0.00

21-1

1214049221
ref: 21-1

RING SET,PISTON

€ 67.00

21-2

1214049221050
ref: 21-2
OPT

RING SET,PISTON (OS:0.5)

€ 59.00

21-3

1214049221100
ref: 21-3
OPT

RING SET,PISTON (OS:1.0)

€ 38.50

21-4

1214038240
ref: 21-4
E4

RING SET, PISTON (STD)

€ 0.00

21-5

1214038240050
ref: 21-5
E4,OPT

RING SET, PISTON (OS:0.5)

€ 0.00

21-6

1214038240100
ref: 21-6
E4,OPT

RING SET, PISTON (OS:1.0)

€ 0.00

22

1215115501A
ref: 22

PIN,PISTON

€ 15.00

23

0938118002A
ref: 23

CIRCLIP,PISTON PIN

€ 1.50

all assemblies
