FUEL COCK

DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

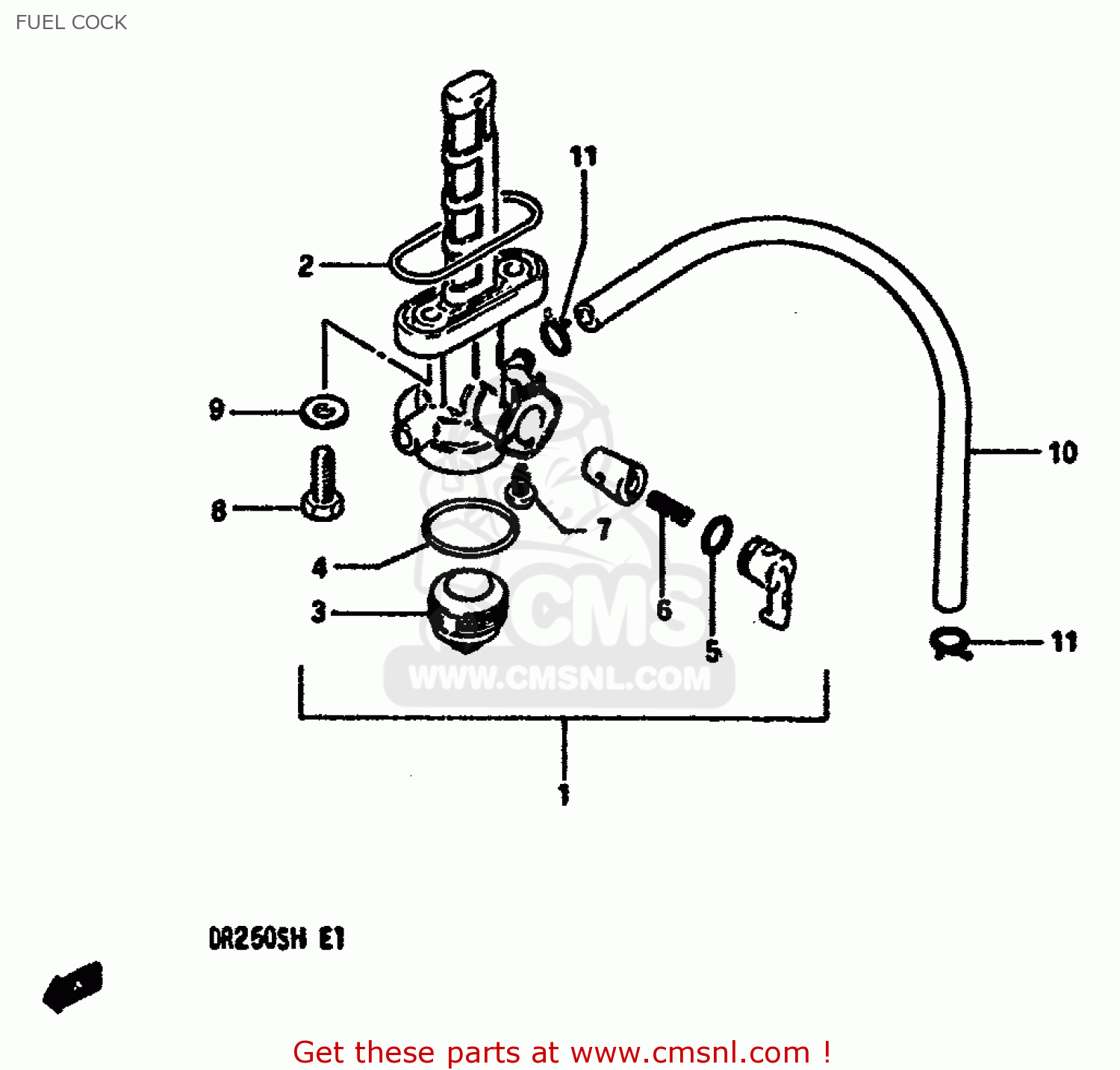

Fuel cock diagram DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)

FUEL COCK DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)
FUEL COCK DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)
FUEL COCK DR250S 1987 (H) (E01 E04 E06 E15 E21 E22 E24 E39)
prices are in EUR
ref
part #
description
quantity
1
4430038201
ref: 1
COCK ASSEMBLY,FUEL
4430038201
€ 64.50
2
4434828070
ref: 2
O RING,FUEL COCK
4434828070
€ 4.50
3
4434728071
ref: 3
CUP,STRAINER
4434728071
€ 7.50
4
4434628070
ref: 4
GASKET,FILTER (NAS)
4434628070
€ 2.50
5
4435332470
ref: 5
O-RING
4435332470
€ 7.50
6
4435732470
ref: 6
SPRING
4435732470
€ 2.00
7
4434341370
ref: 7
SCREW
4434341370
€ 2.00
8
8912806006
ref: 8
BOLT
€ 0.00
9
0916806018
ref: 9
GASKET(6.2X13X1.2) (NAS)
0916806018
€ 2.00
10
0934305129
ref: 10
HOSE
€ 13.00
11
0940108401
ref: 11
CLIP
0940108401
€ 1.50
