CARBURETOR (MODEL P/R/S)
DR250SE 1992 (N) USA (E03)

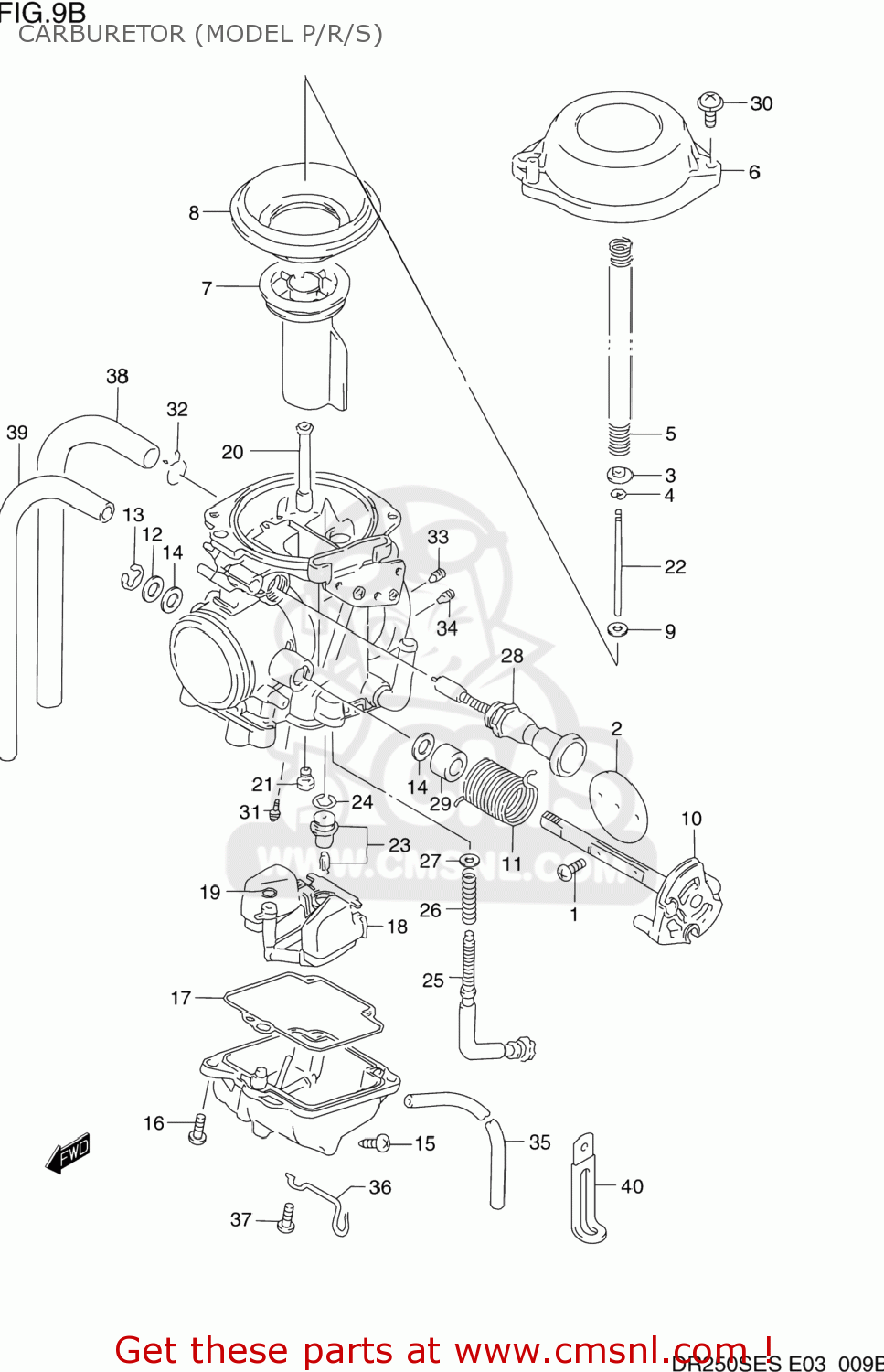

Carburetor (model p/r/s) diagram DR250SE 1992 (N) USA (E03)
CARBURETOR (MODEL P/R/S) DR250SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1320015E60
ref:
CARBURETOR ASSEMBLY
€ 311.50
1320015E70
ref:
CARBURETOR ASSEMBLY
€ 245.50
1
1360442A00
ref: 1
13604-44080
SCREW
€ 3.50
2
1355145B00
ref: 2
VALVE,THROTTLE (115)
€ 21.00
3
1338242A00
ref: 3
RING
€ 3.50
4
1339401D00
ref: 4
E RING
€ 4.50
5
1341744B00
ref: 5
SPRING
€ 6.00
6
1350245B00
ref: 6
13502-44B00
COVER,DIAPHRAGM
€ 36.00
7
1355144B10
ref: 7
VALVE PISTON
€ 74.50
8
1350744B00
ref: 8
DIAPHRAGM
€ 29.00
9
1338747010
ref: 9
RING
€ 7.50
10
1355014E00
ref: 10
SHAFT ASSEMBLY
€ 33.50
11
1326831D00
ref: 11
SPRING
€ 9.50
12
1355747070
ref: 12
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
13
1361744080
ref: 13
E RING
€ 3.50
14
1355644B00
ref: 14
SEAL
€ 3.50
15
1324713A00
ref: 15
13247-02340
SCREW,DRAIN
€ 5.50
16-1
1360205128
ref: 16-1
02112-05127
SCREW
€ 2.50
16-2
0211205127
ref: 16-2
SCREW
€ 2.50
17
1325844B00
ref: 17
GASKET,FLOAT CHAMBER (NAS)
€ 8.50
18
1324014D30
ref: 18
FLOAT ASSY
€ 46.50
19
1337446710
ref: 19
O RING
€ 4.50
20
0949400793
ref: 20
JET,NEEDLE (O-8)
€ 18.50
21
0949126011
ref: 21
JET,MAIN(130)
€ 11.50
22
1338315E00
ref: 22
NEEDLE JET (5CD22)
€ 0.00
23
1337044B00
ref: 23
13370-02D00
VALVE ASSEMBLY,NEEDLE
€ 46.50
24
1337444080
ref: 24
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
25
1326715E00
ref: 25
ADJUSTER
€ 42.50
26
1326831210
ref: 26
SPRING,THROTTLE SCREW
€ 4.00
27
1361543010
ref: 27
WASHER,STARTER SHAFT
€ 2.50
28
1341114E00
ref: 28
13411-14E10
PLUNGER ASSEMBLY
€ 51.00
29
1357428A00
ref: 29
RING
€ 4.50
30-1
1360234390
ref: 30-1
02112-7516A
SCREW
€ 2.50
30-2
0211275163
ref: 30-2
02112-7516A
SCREW
€ 2.50
31
0949235010
ref: 31
JET,PILOT(37.5)
€ 10.50
32-1
1367148B10
ref: 32-1
09401-10401
CLIP
€ 1.50
32-2
0940110410
ref: 32-2
09401-10401
CLIP
€ 1.50
33
0949325003
ref: 33
JET,AIR(1.25)
€ 11.00
34
0949360004
ref: 34
JET,AIR(0.6)
€ 11.00
35-1
1368336A00
ref: 35-1
09352-30503-600
HOSE
€ 8.00
35-2
0935230503600
ref: 35-2
HOSE(3X5X600)
€ 8.00
36
1367115D60
ref: 36
CLIP
€ 12.00
37-1
1360205088
ref: 37-1
02112-05087
SCREW
€ 2.00
37-2
0211205087
ref: 37-2
SCREW
€ 2.00
38-1
1368343410
ref: 38-1
09352-70113-600
HOSE
€ 17.50
38-2
0935270113600
ref: 38-2
HOSE(7X11X600)
€ 17.50
39-1
1368436510
ref: 39-1
09355-45855-600
HOSE
€ 14.00
39-2
0935445853600
ref: 39-2
09355-45855-600
HOSE (4.5X8.5X600)
€ 14.00
40
0940406402
ref: 40
09404-06432
CLAMP
€ 2.50
