WIRING HARNESS (MODEL L/M/N)
DR250SE 1992 (N) USA (E03)

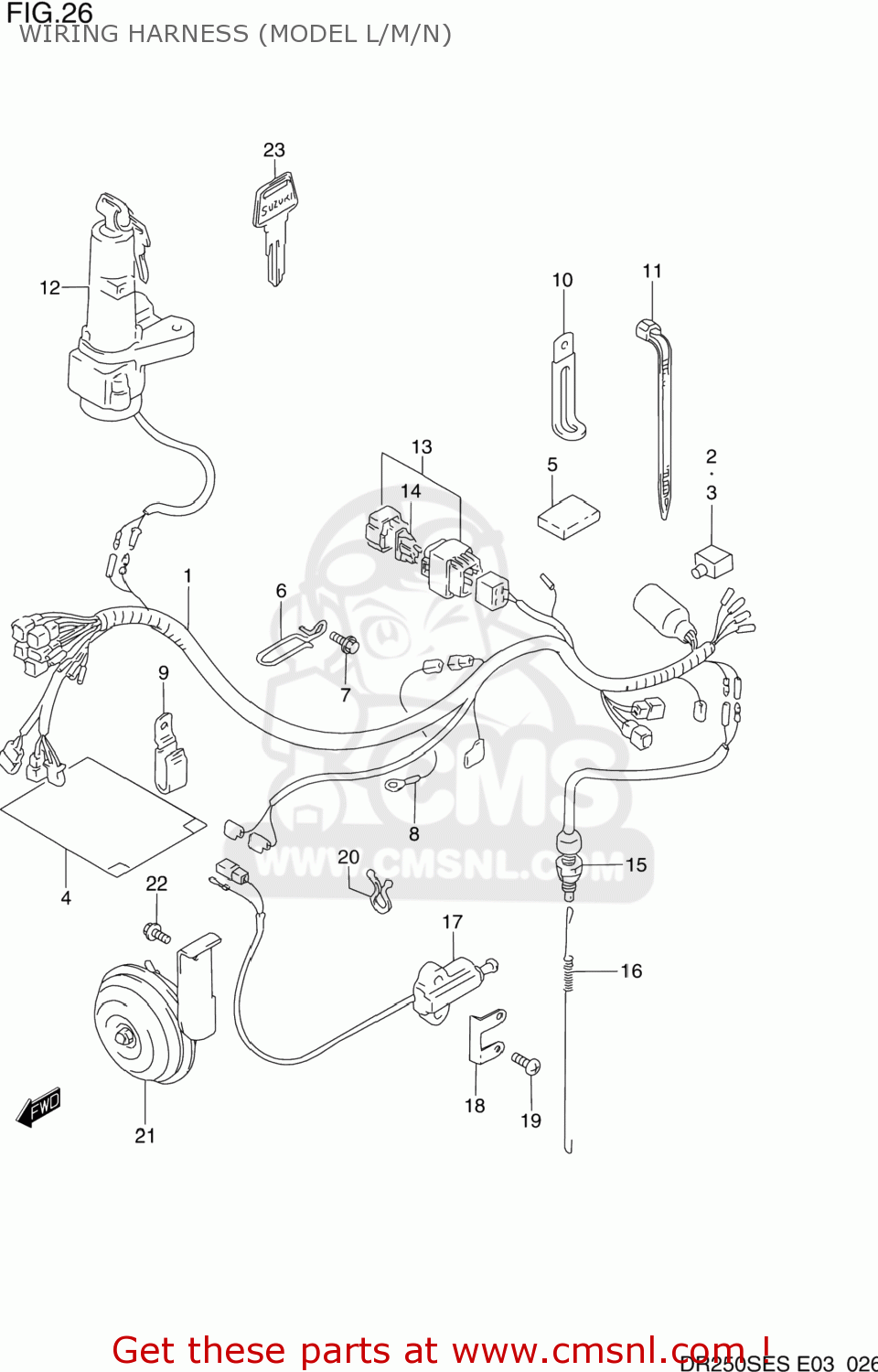

Wiring harness (model l/m/n) diagram DR250SE 1992 (N) USA (E03)
WIRING HARNESS (MODEL L/M/N) DR250SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661014D30
ref: 1-1
36610-14D21
HARNESS,WIRING
€ 296.50
1-2
3661014D31
ref: 1-2
36610-14D21
HARNESS,WIRING
€ 296.50
2
3362403D00
ref: 2
CAP,BATTERY PLUS TERMINAL
€ 6.00
3
3362411300
ref: 3
33624-03A00
CAP,BATTERY PLUS TERMINAL
€ 3.00
4-1
3661815D10
ref: 4-1
36618-15D20
COVER,WIRING HARNESS
€ 12.00
4-2
3661815D11
ref: 4-2
36618-15D20
COVER,WIRING HARNESS
€ 12.00
4-3
3661815D00
ref: 4-3
36618-15D20
COVER,WIRING HARNESS
€ 12.00
4-4
3661815D01
ref: 4-4
36618-15D20
COVER,WIRING HARNESS
€ 12.00
5-1
3365137000
ref: 5-1
PROTECTOR(170X95X3.0)
€ 5.00
5-2
3692014D00
ref: 5-2
PROTECTOR,WIRING HARNESS
€ 5.50
6
3661914D10
ref: 6
GUIDE,WIRING HARNESS
€ 5.00
7
0151706105
ref: 7
01550-0610A
BOLT
€ 2.50
8
3685114D00
ref: 8
36851-05D00
WIRE
€ 3.00
9
0940306307
ref: 9
CLAMP
€ 4.50
10-1
0940406429
ref: 10-1
CLAMP(L:45)
€ 2.50
10-2
0940406424
ref: 10-2
09404-06432
CLAMP
€ 2.00
10-3
0940408403
ref: 10-3
09404-08420
CLAMP
€ 3.50
10-4
0940408404
ref: 10-4
09404-08420
CLAMP
€ 3.00
11-1
0940702401
ref: 11-1
CLAMP
€ 2.50
11-2
0940710404
ref: 11-2
CLAMP(L:100)
€ 4.00
11-3
0940714403
ref: 11-3
CLAMP(L:125)
€ 2.50
11-4
0940714409
ref: 11-4
CLAMP
€ 2.50
11-5
0940718402
ref: 11-5
CLAMP(L:165)
€ 2.50
11-6
0940725401
ref: 11-6
CLAMP(L:235)
€ 4.00
12
3711003D00
ref: 12
37110-03D01
SWITCH ASSEMBLY,IGNITION
€ 58.50
13
3674004701
ref: 13
BOX ASSY,FUSE
€ 16.00
14
0948115101
ref: 14
FUSE(15A)
€ 1.50
15
3774014D00
ref: 15
SWITCH ASSY,STOP LAMP
€ 21.00
16
0944306080
ref: 16
SPRING
€ 4.00
17
3784048B21
ref: 17
37840-12X50
SWITCH ASSEMBLY,SIDE STAND
€ 76.00
18
3784114D00
ref: 18
PROTECTOR,SIDE STAND SWITCH
€ 4.50
19
0214206205
ref: 19
02142-0620A
SCREW, CENTER
€ 2.00
20
0940800012
ref: 20
CLIP(ID:11.5)
€ 2.00
21-1
3850014D00
ref: 21-1
38500-14D02
HORN ASSEMBLY
€ 54.50
21-2
3850014D01
ref: 21-2
38500-14D02
HORN ASSEMBLY
€ 54.50
22
0151706164
ref: 22
01550-0616A
BOLT
€ 2.50
23-1
3714624500
ref: 23-1
37146-03A00
KEY,BLANK
€ 6.00
23-2
3714624510
ref: 23-2
37146-03A10
KEY,BLANK
€ 6.00
