CRANKCASE (MODEL P/R/S)
DR250SE 1992 (N) USA (E03)

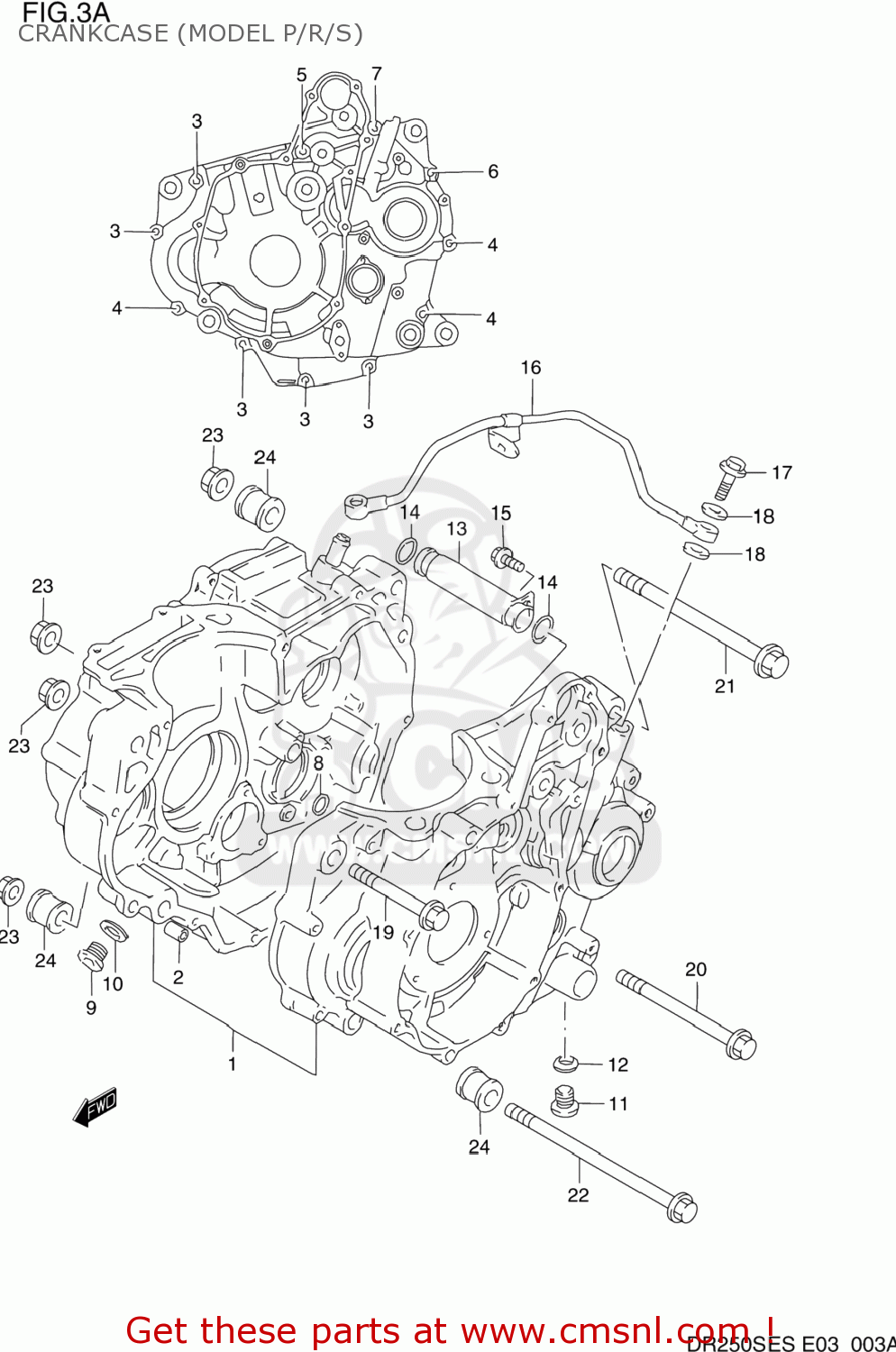

Crankcase (model p/r/s) diagram DR250SE 1992 (N) USA (E03)
CRANKCASE (MODEL P/R/S) DR250SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130115812
ref: 1-1
11301-15814
CRANKCASE SET
€ 671.50
1-2
1130115814
ref: 1-2
CRANKCASE SET
€ 671.50
2
0421109149
ref: 2
PIN
€ 2.00
3
0154706453
ref: 3
01547-0645B
BOLT
€ 3.00
4
0154706503
ref: 4
01547-0650B
BOLT
€ 3.50
5
0154706653
ref: 5
01547-0665B
BOLT
€ 2.00
6
0154706707
ref: 6
BOLT
€ 2.50
7
0154706903
ref: 7
01547-0690B
BOLT
€ 3.00
8-1
0928013007
ref: 8-1
09280-12009
O-RING
€ 2.50
8-2
0928012009
ref: 8-2
O RING(D:1.9,ID:12.6)
€ 2.50
9
0924814005
ref: 9
PLUG,14X12
€ 5.00
10-1
0916814004
ref: 10-1
GASKET(14X19.2X2) (NAS)
€ 2.50
10-2
0916814002
ref: 10-2
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
11-1
0110412205
ref: 11-1
01500-1220B
PLUG,OIL DRN.
€ 3.00
11-2
0150012203
ref: 11-2
01500-1220B
BOLT
€ 3.00
12
0916812002
ref: 12
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
13
1145014D01
ref: 13
PIPE,T/M OIL INNER
€ 11.50
14-1
0928016005
ref: 14-1
O RING(D:2.4,ID:15.8)
€ 1.50
14-2
0928015007
ref: 14-2
O RING(D:2.4,ID:15.8)
€ 2.00
15-1
0151706128
ref: 15-1
01550-06127
BOLT
€ 2.50
15-2
0155006123
ref: 15-2
01550-0612A
BOLT
€ 2.50
16
1128015D01
ref: 16
11280-15D10
PIPE,TRANSMISSION OIL,OUTER
€ 47.50
17
0936008011
ref: 17
BOLT UNION
€ 4.00
18
0916808008
ref: 18
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
19
0910310230
ref: 19
09103-10083
BOLT 10X85
€ 6.00
20
0910310242
ref: 20
BOLT(10X101.5)
€ 6.50
21
0910310063
ref: 21
BOLT(10X115)
€ 5.00
22
0910310241
ref: 22
BOLT(10X143)
€ 6.00
23
0915910058
ref: 23
09159-10115
NUT
€ 4.00
24
1161114D00
ref: 24
SPACER,ENGINE MOUNTING
€ 15.50
