CYLINDER HEAD
DR250SE 1992 (N) USA (E03)

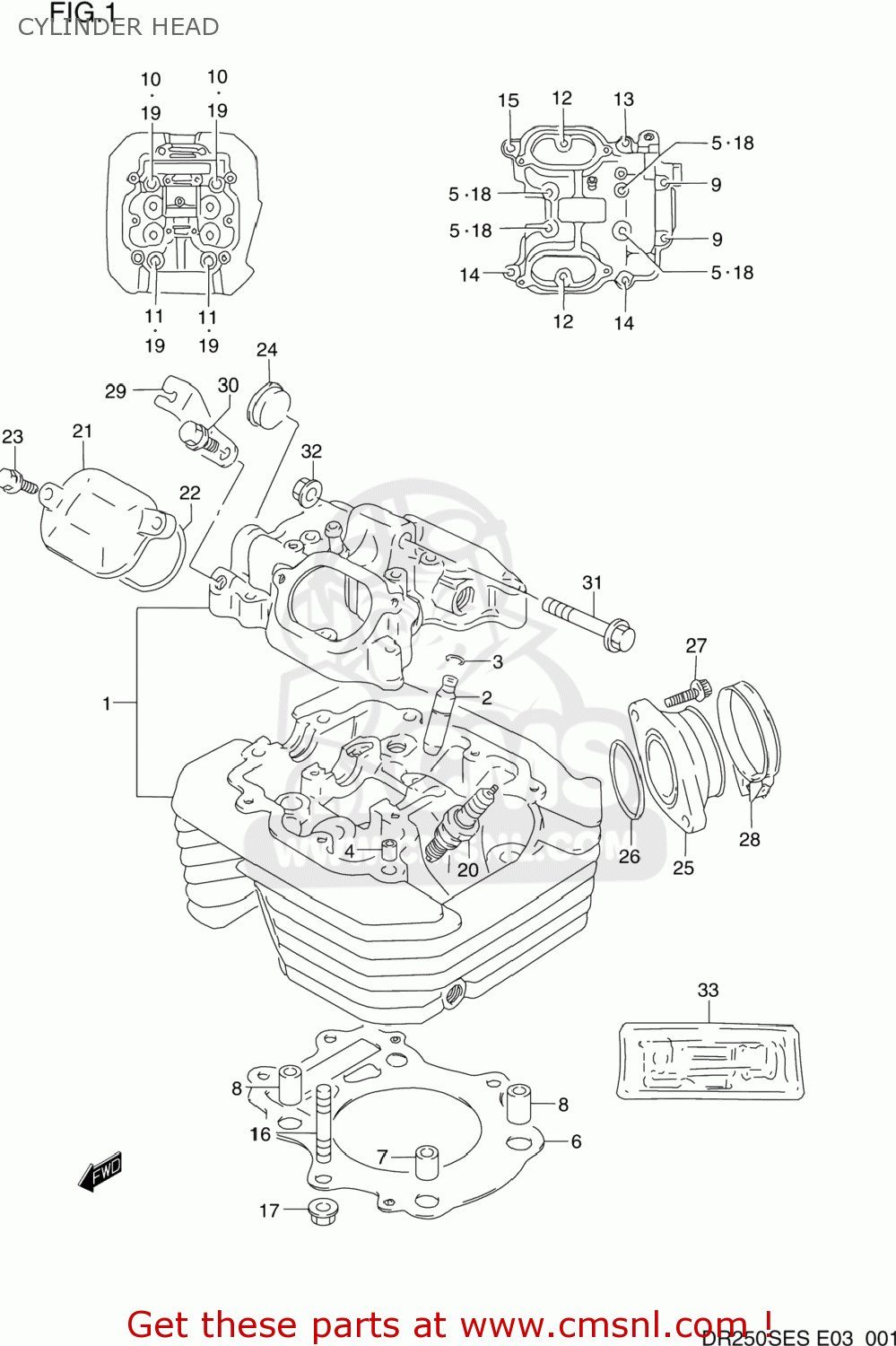

Cylinder head diagram DR250SE 1992 (N) USA (E03)
CYLINDER HEAD DR250SE 1992 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1110015D01
ref: 1-1
11100-15D20
HEAD ASSEMBLY,CYLINDER
€ 274.50
1-2
1110015D20
ref: 1-2
HEAD ASSEMBLY,CYLINDER
€ 274.50
1-3
1110015D31
ref: 1-3
HEAD ASSY,CYLINDER
€ 0.00
2-1
1111514D70
ref: 2-1
11115-14D71
GUIDE,VALVE
€ 19.50
2-2
1111514D71
ref: 2-2
GUIDE,VALVE
€ 19.50
3
0938110004
ref: 3
RING,SNAP
€ 1.50
4
0920608001
ref: 4
PIN(6.2X8X11)
€ 2.00
5
0910306102
ref: 5
BOLT(6X55)
€ 2.50
6
1114115D01
ref: 6
GASKET,CYLINDER HEAD (NAS)
€ 35.00
7-1
0920613001
ref: 7-1
04211-13189
PIN
€ 2.50
7-2
0421113189
ref: 7-2
PIN
€ 2.50
8
0920613004
ref: 8
PIN(10.4X13X22)
€ 3.00
9-1
0910306052
ref: 9-1
BOLT(6X115)
€ 5.00
9-2
0910306167
ref: 9-2
BOLT(6X115)
€ 4.50
10
0910310178
ref: 10
BOLT(10X180)
€ 12.50
11
0910310223
ref: 11
BOLT(10X155)
€ 14.50
12-1
0151706257
ref: 12-1
01550-06257
BOLT 6X25
€ 2.50
12-2
0155006253
ref: 12-2
01550-0625A
BOLT
€ 2.50
13-1
0151706307
ref: 13-1
01550-06307
BOLT
€ 2.00
13-2
0155006303
ref: 13-2
01550-0630A
BOLT
€ 2.50
14
0910306108
ref: 14
BOLT(6X35)
€ 2.00
15-1
0910306026
ref: 15-1
BOLT(6X39)
€ 2.00
15-2
0910306504
ref: 15-2
BOLT(6X39)
€ 3.50
16
0910808142
ref: 16
BOLT,STUD
€ 3.00
17-1
0831616088
ref: 17-1
08316-10087
NUT
€ 2.50
17-2
0831610083
ref: 17-2
08316-1008B
NUT
€ 3.00
18
0916806023
ref: 18
GASKET(5.8X13X1.2) (NAS)
€ 2.00
19
0916010060
ref: 19
09160-10039
WASHER (10.5X22X2.3)
€ 2.50
20-1
0948200330
ref: 20-1
PLUG,SPARK(DPR9EA-9)
€ 4.00
20-2
0948200331111
ref: 20-2
09482-00331
SPARK PLUG X27EPR-U9
€ 4.00
20-3
0948200334
ref: 20-3
PLUG,SPARK(DPR8EA-9)
€ 4.00
21-1
1117514D00
ref: 21-1
11175-47D00
CAP,INSPECTION
€ 12.00
21-2
1117547D00
ref: 21-2
CAP,INSPECTION
€ 12.00
22-1
1117714D00
ref: 22-1
11177-14D01
GASKET (NAS)
€ 4.00
22-2
1117714D01
ref: 22-2
O RING,INSPECTION CAP
€ 4.00
23-1
0151706207
ref: 23-1
01550-06207
BOLT 6X20
€ 2.50
23-2
0155006203
ref: 23-2
01550-0620A
BOLT
€ 2.50
24
0924125007
ref: 24
PLUG,OD:30
€ 6.00
25-1
1310115D10
ref: 25-1
PIPE ASSY,INTAKE
€ 28.50
25-2
1310115D20
ref: 25-2
PIPE ASSEMBLY,INTAKE
€ 27.50
26
0928040010
ref: 26
O RING(D:2.4,ID:39.7)
€ 3.50
27-1
0712006205
ref: 27-1
07120-0620B
PLUG ,6X20
€ 3.50
27-2
0712006203
ref: 27-2
07120-0620B
BOLT
€ 3.50
28
0940252208
ref: 28
CLAMP
€ 5.50
29
1294414A00
ref: 29
LEVER,DECOMP SHAFT RH
€ 6.50
30
0151708165
ref: 30
01550-0816A
BOLT, LOWER
€ 3.00
31
0910308280
ref: 31
BOLT(8X65)
€ 6.00
32
0831931087
ref: 32
NUT
€ 2.50
33-1
1140015850
ref: 33-1
11400-15857
GASKET (NAS)
€ 99.50
33-2
1140015851
ref: 33-2
11400-15857
GASKET (NAS)
€ 99.50
33-3
1140015861
ref: 33-3
11400-15865
GASKET (NAS)
€ 46.00
33-4
1140015865
ref: 33-4
GASKET SET (NAS)
€ 46.00
