FRONT DAMPER (MODEL R/S/T)
DR350 1993 (P) USA (E03)

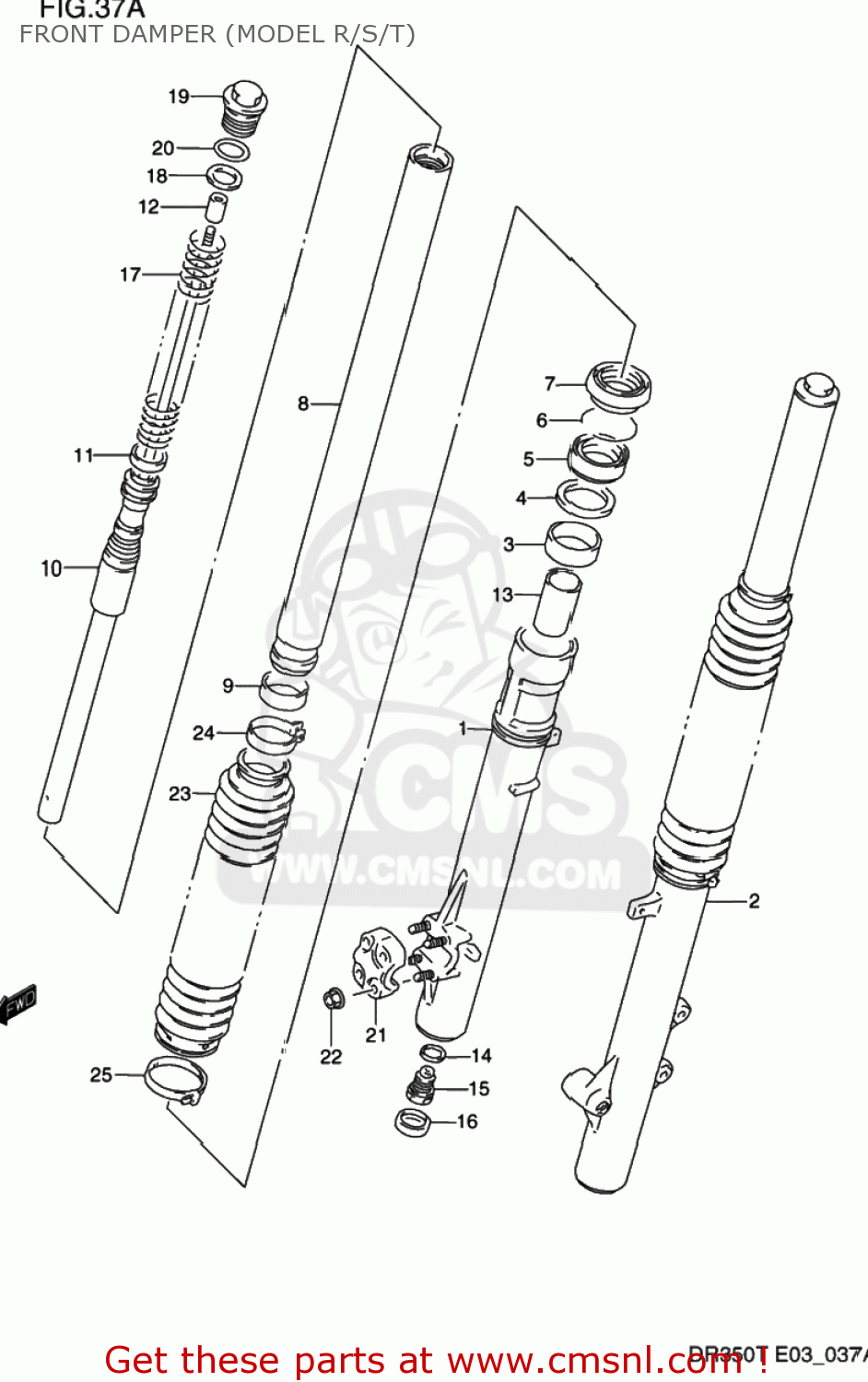

Front damper (model r/s/t) diagram DR350 1993 (P) USA (E03)
FRONT DAMPER (MODEL R/S/T) DR350 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
5110314E30
ref:
DAMPER ASSEMBLY,RIGHT
€ 0.00
5110414E30
ref:
DAMPER ASSEMBLY,LEFT
€ 349.50
1
5113014E30
ref: 1
TUBE,OUTER,RIGHT
€ 0.00
2
5114114E30
ref: 2
TUBE,OUTER,L
€ 0.00
3
5115207D00
ref: 3
BUSH,GUIDE
€ 24.50
4
5116817C00
ref: 4
SPACER,SEAL
€ 5.00
5
5115314D00
ref: 5
SEAL,OIL
€ 20.50
6
5155638B00
ref: 6
CIRCLIP,FORK OIL SEAL
€ 4.50
7
5117314D00
ref: 7
DUST SEAL
€ 19.50
8
5111014E30
ref: 8
TUBE,INNER
€ 284.50
9
5112114D00
ref: 9
BUSH,SLIDE
€ 16.50
10
5119014E30
ref: 10
CYLINDER
€ 49.50
11
5119714E30
ref: 11
BUSH,SLIDE
€ 8.50
12
5112914E30
ref: 12
NUT,ROD
€ 0.00
13
5119514E30
ref: 13
PIECE,OIL LOCK
€ 0.00
14
5114808D00
ref: 14
GASKET (NAS)
€ 5.50
15
5117008D00
ref: 15
CTR BOLT
€ 72.50
16
5118908D00
ref: 16
CAP
€ 7.50
17
5117114E30
ref: 17
SPRING,MAIN
€ 0.00
18
5118617C00
ref: 18
SEAT,SPRING LWR
€ 4.50
19
5135114E30
ref: 19
BOLT,FORK
€ 47.50
20
5111717C00
ref: 20
O RING
€ 3.50
21
5113214D00
ref: 21
HOLDER,AXLE
€ 30.50
22
5116814D00
ref: 22
NUT,HOLDER
€ 3.50
23
5157114D00163
ref: 23
BOOT
€ 62.50
24
5157514D00
ref: 24
BAND,BOOT UPR
€ 8.50
25
5157614D00
ref: 25
BAND,BOOT LWR
€ 10.00
