REAR CALIPER (MODEL L/M)
DR350 1993 (P) USA (E03)

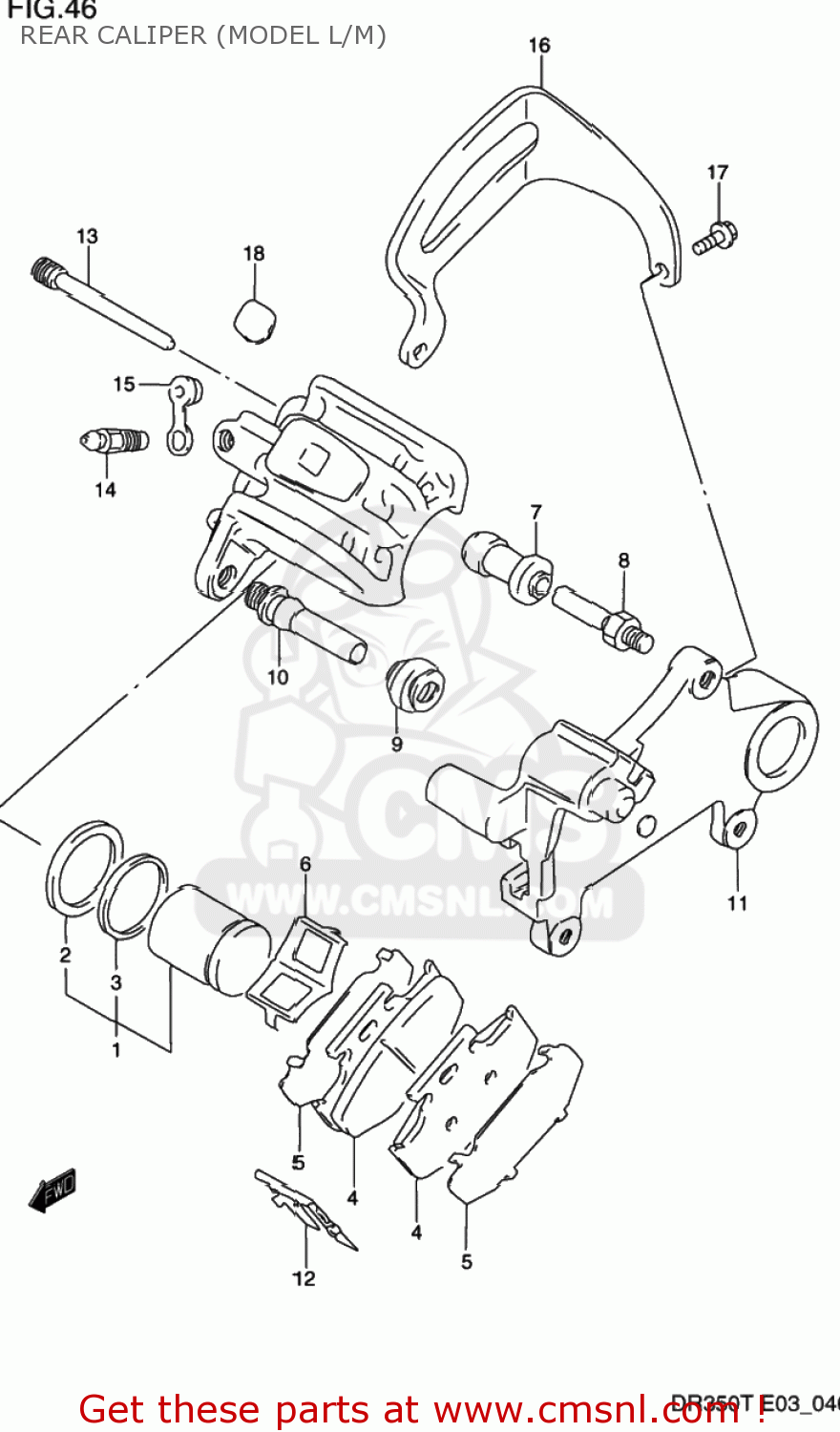

Rear caliper (model l/m) diagram DR350 1993 (P) USA (E03)
REAR CALIPER (MODEL L/M) DR350 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
6910027C10
ref:
CALIPER ASSEMBLY,REAR
€ 262.00
1
6910027830
ref: 1
PISTON SET
€ 34.50
2
5910700B20
ref: 2
69100-36810
SEAL,PISTON
€ 13.00
3
5910800B20
ref: 3
SEAL,DUST
€ 10.50
4
6914027C10
ref: 4
69100-05840
PAD
€ 69.00
5
6913228C00
ref: 5
SHIM
€ 6.50
6
5931527C10
ref: 6
SPRING,PAD
€ 6.00
7
5938613A00
ref: 7
BOOT
€ 6.50
8
5938214500
ref: 8
PIN,BOLT
€ 7.50
9
5930314500
ref: 9
BOOT
€ 5.50
10
5930527C00
ref: 10
PIN
€ 13.50
11
6935127C00
ref: 11
BRACKET
€ 88.00
12
6911327C00
ref: 12
RETAINER
€ 5.50
13
5934514600
ref: 13
PIN,HANGER
€ 10.50
14
5912101A00
ref: 14
BLEEDER
€ 8.50
15
5912201A00
ref: 15
CAP,BLEEDER
€ 4.50
16
6972527C20
ref: 16
GUARD,RR CALIPER
€ 22.00
17
0154706107
ref: 17
BOLT
€ 1.50
18
6917114D00
ref: 18
COVER,RR CALIPER BODY
€ 3.50
