REAR WHEEL (MODEL R/S/T)
DR350 1993 (P) USA (E03)

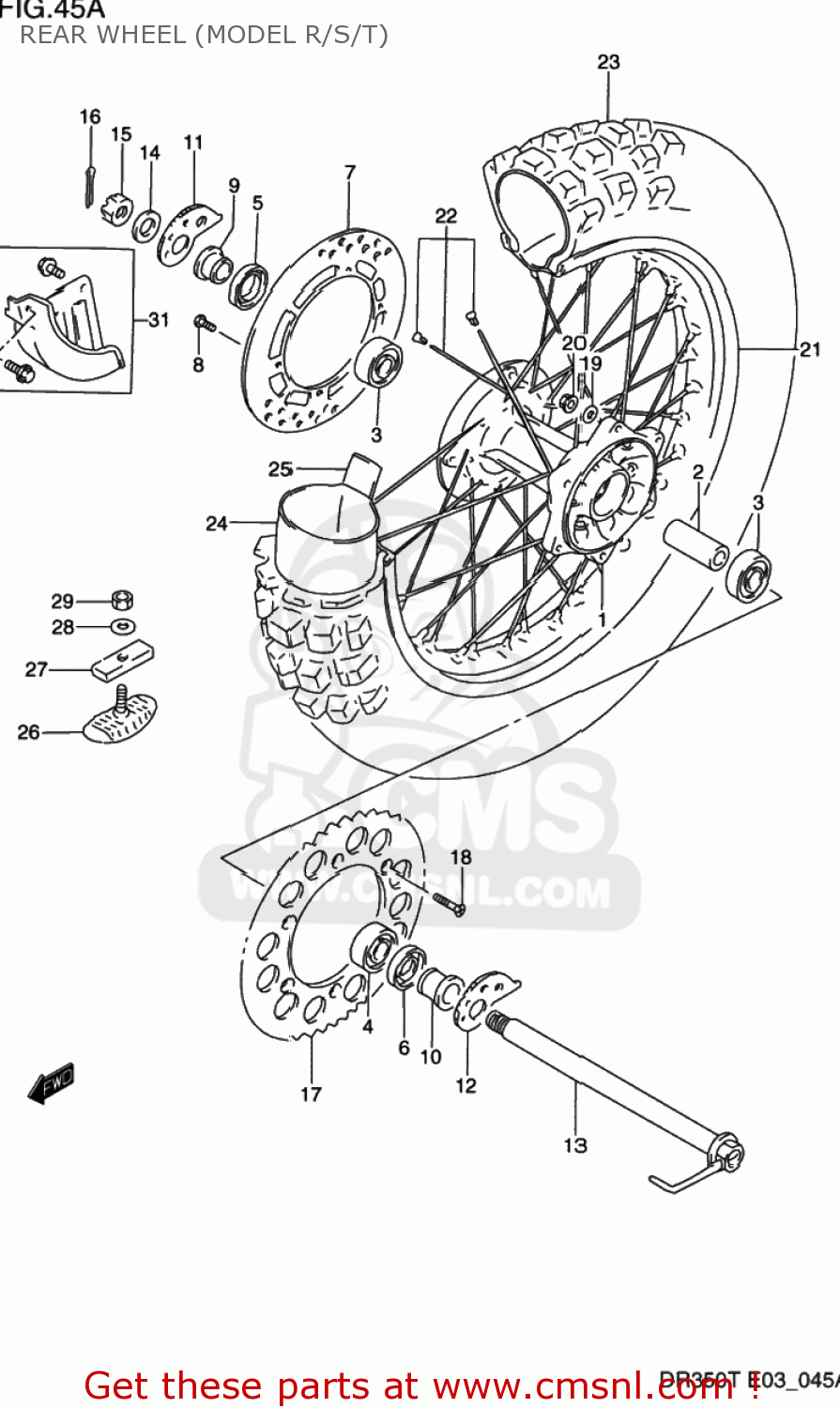

Rear wheel (model r/s/t) diagram DR350 1993 (P) USA (E03)
REAR WHEEL (MODEL R/S/T) DR350 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6411114D01
ref: 1-1
64111-03D00
HUB,REAR WHEEL
€ 768.00
1-2
6411114D20
ref: 1-2
HUB,REAR WHEEL
€ 275.50
2
6473114D00
ref: 2
SPACER,RR HUB BEARING
€ 17.50
3
0812360047
ref: 3
08133-60047
BALL BEARING
€ 21.00
4
0812362047
ref: 4
BEARING
€ 17.00
5
0928226001
ref: 5
SEAL,OIL(26X42X8)
€ 13.00
6
0928326019
ref: 6
SEAL,OIL(26X47X5)
€ 9.50
7-1
6921103D01
ref: 7-1
DISC,RR BRAKE
€ 160.00
7-2
6921103D10
ref: 7-2
DISC,RR BRAKE
€ 166.00
8-1
0910608091
ref: 8-1
09106-08128
BOLT
€ 4.00
8-2
5942103A10
ref: 8-2
09106-08155
BOLT,BRAKE DISC
€ 4.00
9
6474114D00
ref: 9
SPACER,RR AXLE,R
€ 13.00
10
6475114D00
ref: 10
SPACER,RR AXLE,L
€ 31.50
11
6141014D10
ref: 11
ADJUSTER,CHAIN,R
€ 31.50
12
6142114D10
ref: 12
ADJUSTER,CHAIN,L
€ 15.00
13
6471014D50
ref: 13
AXLE,RR
€ 61.50
14
0916019022
ref: 14
WASHER(19X32X3.2)
€ 5.00
15
0831440183
ref: 15
08314-4018A
NUT
€ 4.50
16
0411140308
ref: 16
04111-4030A
PIN,COTTER
€ 1.50
17-1
6451108D50
ref: 17-1
SPROCKET,RR(NT:44-520)
€ 138.50
17-2
6451108D40
ref: 17-2
SPROCKET,RR(NT:43)
€ 0.00
17-2
6451108D40
ref: 17-2
SPROCKET,RR(NT:43)
€ 0.00
17-3
6451108D60
ref: 17-3
SPROCKET,RR(NT:45)
€ 0.00
17-3
6451108D60
ref: 17-3
SPROCKET,RR(NT:45)
€ 0.00
17-4
6451114D70
ref: 17-4
SPROCKET,RR(43T,S45C)
€ 87.00
17-4
6451114D70
ref: 17-4
SPROCKET,RR(43T,S45C)
€ 87.00
17-5
6451114D80
ref: 17-5
SPROCKET,RR(44T,S45C)
€ 68.50
17-5
6451114D80
ref: 17-5
SPROCKET,RR(44T,S45C)
€ 68.50
17-6
6451114D90
ref: 17-6
SPROCKET,REAR (45T)(S45C)
€ 0.00
17-6
6451114D90
ref: 17-6
SPROCKET,REAR (45T)(S45C)
€ 0.00
18
0912008004
ref: 18
SCREW(8X33.5)
€ 3.00
19
0832201083
ref: 19
08322-0108A
WASHER
€ 1.50
20
0831931087
ref: 20
NUT
€ 2.50
21
6531114D00
ref: 21
RIM,RR WHEEL(18X2.15 AL)
€ 248.00
22
6532014D00
ref: 22
SPOKE SET,RR WHEEL
€ 64.50
23
6511014D00
ref: 23
TIRE COMP,REAR 110/100-1
€ 0.00
23
6511014D00
ref: 23
TIRE COMP,REAR 110/100-1
€ 0.00
24
6520040430
ref: 24
TUBE,INNER
€ 0.00
25
5526111010
ref: 25
PROTECTOR,INNER TUBE
€ 3.50
26-1
6527014200
ref: 26-1
65270-28E00
STOPPER,BEAD
€ 38.00
26-2
6527028E00
ref: 26-2
STOPPER,BEAD(2.15)
€ 38.00
27
6527127C00
ref: 27
CUSHION,BEAD STOPPER
€ 5.50
28-1
0832201087
ref: 28-1
WASHER
€ 2.00
28-2
0832201083
ref: 28-2
08322-0108A
WASHER
€ 1.50
29-1
0831000087
ref: 29-1
NUT
€ 2.00
29-2
0831000083
ref: 29-2
08310-0008A
NUT
€ 1.50
31
6920028C00
ref: 31
COVER SET,RR BRAKE DISC
€ 29.50
