FUEL TANK (MODEL N/P)
DR350 1993 (P) USA (E03)

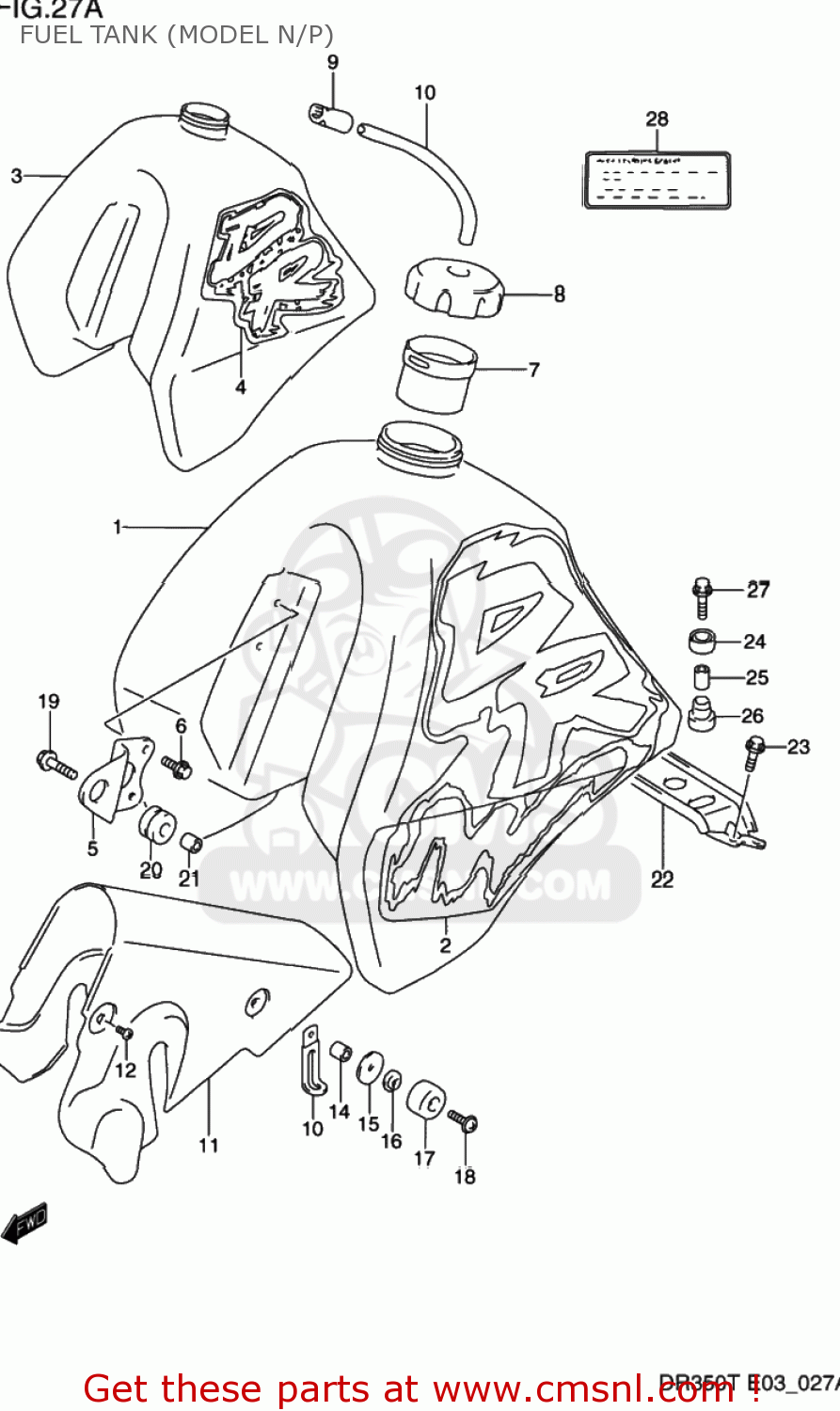

Fuel tank (model n/p) diagram DR350 1993 (P) USA (E03)
FUEL TANK (MODEL N/P) DR350 1993 (P) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4410014D7130H
ref: 1
TANK ASSEMBLY,FUEL
€ 540.50
2
6811014E00M78
ref: 2
TAPE SET,FUEL TANK
€ 230.00
3
4410014E3030H
ref: 3
TANK ASSEMBLY,FUEL
€ 0.00
4
6811015E10A8A
ref: 4
TAPE SET,FUEL TANK
€ 175.00
5
4413114D10
ref: 5
BRACKET,FUEL TANK,FRONT
€ 23.00
6
0154706127
ref: 6
BOLT
€ 2.00
7
4419919A00
ref: 7
TUBE,FILLER INLET
€ 4.00
8
4420019A01
ref: 8
CAP ASSY,FUEL TANK
€ 40.00
9
4448632101
ref: 9
CLAMP,FUEL TANK BREATHER HOSE
€ 3.50
10
0935250823600
ref: 10
44420-44AR0
HOSE(5X8.2X600)
€ 13.00
11
4913114D00
ref: 11
HEAT SHIELD,FUEL TANK
€ 16.00
12
0214205087
ref: 12
SCREW
€ 2.00
13
0940405404
ref: 13
09404-06432
CLAMP
€ 2.50
14
0918006122
ref: 14
SPACER(6.1X14X7.2)
€ 3.00
15
0916006096
ref: 15
09160-06135
WASHER (6.5X26X2.3)
€ 1.50
16
0916906040
ref: 16
WASHER
€ 2.00
17
4514914D00
ref: 17
CUSHION
€ 3.00
18
0211216253
ref: 18
02112-1625B
SCREW
€ 2.50
19
0911808119
ref: 19
BOLT(8X25)
€ 3.00
20
0932012053
ref: 20
CUSHION
€ 7.50
21
0918008147
ref: 21
09180-08190
SPACER (8.8X12X12.5)
€ 4.00
22
4415114D00
ref: 22
BRACKET,FUEL TANK RR
€ 8.00
23
0155006103
ref: 23
01550-0610A
BOLT
€ 2.50
24
0932014013
ref: 24
CUSHION
€ 3.00
25
0918006072
ref: 25
09180-06271
SPACER
€ 2.00
26
0932010020
ref: 26
CUSHION
€ 4.00
27
0911606078
ref: 27
09116-06172
BOLT
€ 2.50
28
6839314D10
ref: 28
LABEL,STARTING CAUTION
€ 4.50
