CRANKSHAFT
DR350 1996 (T) USA (E03)

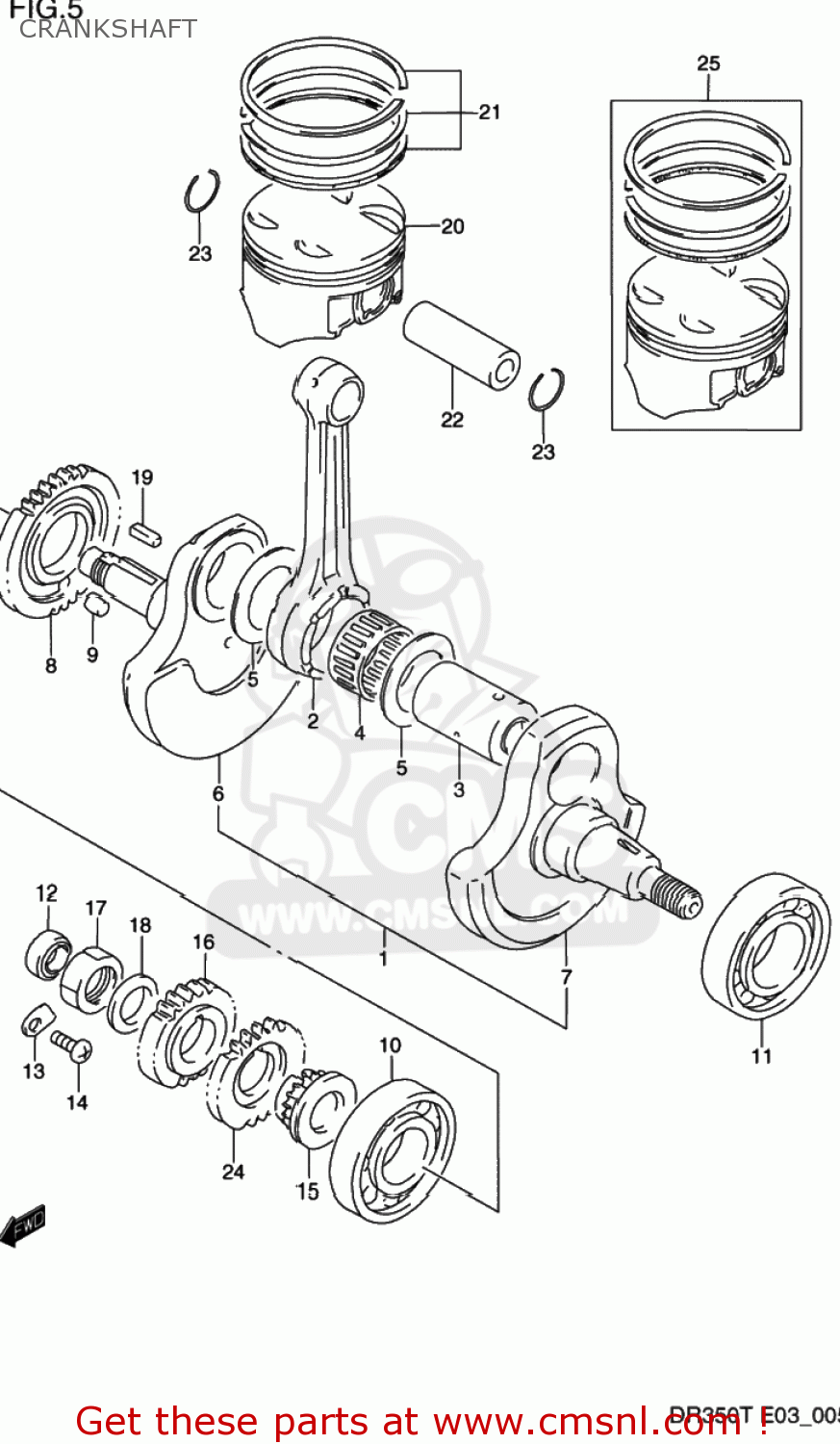

Crankshaft diagram DR350 1996 (T) USA (E03)
CRANKSHAFT DR350 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1220014D00
ref: 1
CRANKSHAFT ASSY
€ 695.50
2
1216114D00
ref: 2
ROD,CONNECTING
€ 98.50
3
1221014D02
ref: 3
12210-14D03
PIN COMP,CRANK
€ 56.00
4
0926334005
ref: 4
BEARING(34X43X22)
€ 45.50
5
0916034003
ref: 5
WASHER(34X52X1)
€ 6.50
6-1
1222114D00
ref: 6-1
12221-14D01
CRANKSHAFT
€ 302.50
6-2
1222114D01
ref: 6-2
CRANKSHAFT,R
€ 302.50
7
1226114D00
ref: 7
CRANKSHAFT,L
€ 179.50
8
1266114D00
ref: 8
GEAR,CRANK BAL DRIVE(NT:37)
€ 118.00
9
0422108149
ref: 9
PIN
€ 2.50
10
0926230077
ref: 10
BEARING(30X72X19)
€ 47.50
11
0926235038
ref: 11
BEARING(35X72X17)
€ 38.00
12
0928214003
ref: 12
SEAL,OIL(14X24X6)
€ 8.00
13
2474218A00
ref: 13
RETAINER,BEARING
€ 2.00
14
0211206123
ref: 14
02112-0612A
SCREW
€ 1.50
15
1273114D00
ref: 15
SPROCKET,CAM CHAIN DRIVE
€ 50.00
16-1
2111114D00
ref: 16-1
21111-14D01
GEAR,PRIMARY DRIVE
€ 41.00
16-2
2111115D20
ref: 16-2
21111-15D21
GEAR,PRIMARY DRIVE (NT:
€ 50.00
17
0914018012
ref: 17
NUT
€ 8.00
18-1
0916418001
ref: 18-1
WASHER
€ 3.00
18-2
0916418007
ref: 18-2
09164-18001
WASHER
€ 3.00
19
0942105009
ref: 19
KEY
€ 8.00
20-1
1211114D000F0
ref: 20-1
12111-14D03-0F0
PISTON (79.00MM)
€ 81.50
20-2
1211114D020F0
ref: 20-2
12111-14D03-0F0
PISTON
€ 81.50
20-3
1211114D030F0
ref: 20-3
PISTON
€ 81.50
21
1214014D10
ref: 21
RING SET,PISTON
€ 57.00
22
1215124A00
ref: 22
PIN,PISTON
€ 18.50
23
0938120004
ref: 23
CIRCLIP,PISTON PIN
€ 2.00
24
1632115D00
ref: 24
16321-15D01
GEAR,OIL PUMP DRIVE (NT
€ 36.00
25-1
1210014D00050
ref: 25-1
12100-14D01-050
PISTON SET (OS:0.5)
€ 133.00
25-2
1210014D00100
ref: 25-2
12100-14D01-100
PISTON SET (OS:1.0)
€ 107.00
25-3
1210014D01050
ref: 25-3
PISTON SET(OS:0.5)
€ 133.00
25-4
1210014D01100
ref: 25-4
PISTON SET (OS:1.0)
€ 107.00
