FRONT MASTER CYLINDER
DR350 1996 (T) USA (E03)

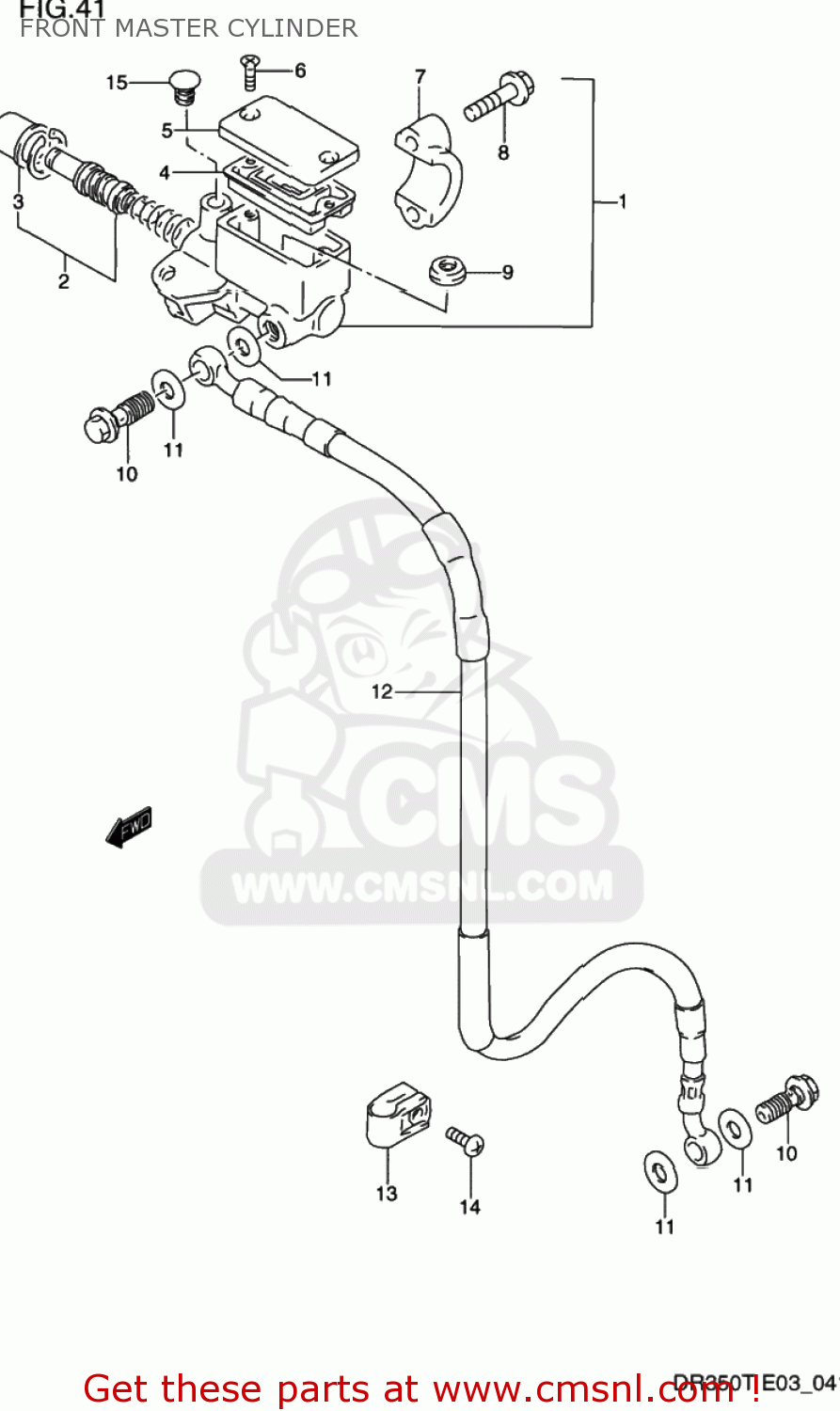

Front master cylinder diagram DR350 1996 (T) USA (E03)
FRONT MASTER CYLINDER DR350 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960005D00
ref: 1
59600-05D01
CYLINDER ASSEMBLY,FRONT MASTER
€ 150.00
2
5960027820
ref: 2
PISTON & CUP SET
€ 30.00
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
5966905D00
ref: 5
CAP
€ 13.50
6
6968949300
ref: 6
SCREW
€ 1.50
7
5967127C00
ref: 7
HOLDER
€ 9.50
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974814500
ref: 9
SEPARATOR
€ 6.00
10-1
0936010017
ref: 10-1
BOLT UNION
€ 6.50
10-2
0936010017
ref: 10-2
BOLT UNION
€ 6.50
10-2
0936010017
ref: 10-2
BOLT UNION
€ 6.50
10-3
0936010034
ref: 10-3
09360-10062
BOLT UNION
€ 5.00
10-4
0936010039
ref: 10-4
09360-10061
BOLT UNION
€ 6.50
10-4
0936010039
ref: 10-4
09360-10061
BOLT UNION
€ 6.50
10-5
0936010040
ref: 10-5
09360-10062
BOLT UNION
€ 5.00
11
0916110009
ref: 11
WASHER(10X15X1.5)
€ 2.00
12
5948014D01
ref: 12
HOSE,FR BRAKE
€ 136.00
13
5924314501
ref: 13
CLAMP,FR BRAKE HOSE
€ 6.50
14-1
0211216165
ref: 14-1
02112-1616A
SCREW
€ 2.00
14-2
0214206163
ref: 14-2
02142-0616A
SCREW
€ 2.50
15
0925009001
ref: 15
CAP(OD:14)
€ 1.00
