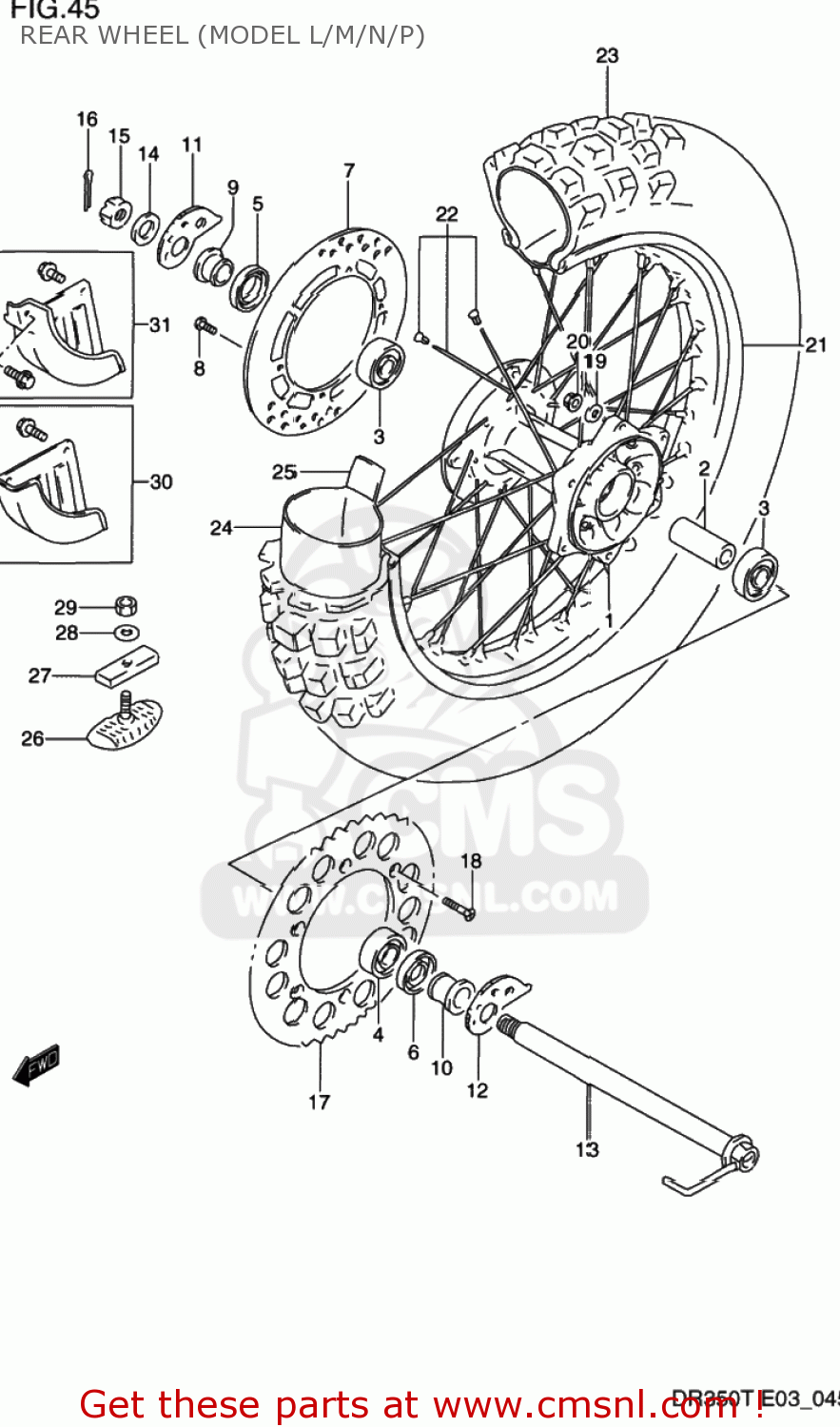

REAR WHEEL (MODEL L/M/N/P)

ref

part #

description

quantity

1

6411114D00
ref: 1
64111-03D00

HUB,REAR WHEEL

€ 768.00

2

6473114D00
ref: 2

SPACER,RR HUB BEARING

€ 17.50

3

0812360047
ref: 3
08133-60047

BALL BEARING

€ 21.00

4

0812362047
ref: 4

BEARING

€ 17.00

5

0928226001
ref: 5

SEAL,OIL(26X42X8)

€ 13.00

6

0928326019
ref: 6

SEAL,OIL(26X47X5)

€ 9.50

7

6921103D01
ref: 7

DISC,RR BRAKE

€ 160.00

8-1

0910608091
ref: 8-1
09106-08128

BOLT

€ 4.00

8-1

0910608091
ref: 8-1
09106-08128

BOLT

€ 4.00

8-2

0910608111
ref: 8-2
09106-08128

BOLT

€ 4.00

9

6474114D00
ref: 9

SPACER,RR AXLE,R

€ 13.00

10

6475114D00
ref: 10

SPACER,RR AXLE,L

€ 31.50

11-1

6141014D00
ref: 11-1
61420-05D00

ADJUSTER,CHAIN

€ 26.50

11-2

6141014D10
ref: 11-2

ADJUSTER,CHAIN,R

€ 31.50

12-1

6142114D00
ref: 12-1

ADJUSTER,CHAIN,LEFT

€ 12.00

12-2

6142114D10
ref: 12-2

ADJUSTER,CHAIN,L

€ 15.00

13-1

6471014D20
ref: 13-1

AXLE,REAR

€ 72.00

13-2

6471014D50
ref: 13-2

AXLE,RR

€ 61.50

14

0916019022
ref: 14

WASHER(19X32X3.2)

€ 5.00

15

0831441188
ref: 15
08314-40187

NUT 18MM

€ 6.00

16

0411140308
ref: 16
04111-4030A

PIN,COTTER

€ 1.50

17-1

6451114D00
ref: 17-1

SPROCKET,RR(47T)

€ 100.00

17-2

6451114D40
ref: 17-2

SPROCKET,RR(NT:46)

€ 0.00

17-2

6451114D40
ref: 17-2

SPROCKET,RR(NT:46)

€ 0.00

17-3

6451114D60
ref: 17-3

SPROCKET,RR(NT:48)

€ 195.00

17-3

6451114D60
ref: 17-3

SPROCKET,RR(NT:48)

€ 195.00

17-4

6451114D30
ref: 17-4
64511-14D31

SPROCKET,REAR

€ 0.00

17-4

6451114D30
ref: 17-4
64511-14D31

SPROCKET,REAR

€ 0.00

17-5

6451114D20
ref: 17-5
64511-14D00

SPROCKET,REAR

€ 100.00

17-5

6451114D20
ref: 17-5
64511-14D00

SPROCKET,REAR

€ 100.00

17-5

6451114D20
ref: 17-5
64511-14D00

SPROCKET,REAR

€ 100.00

17-6

6451114D50
ref: 17-6
64511-14D60

SPROCKET,REAR

€ 195.00

17-6

6451114D50
ref: 17-6
64511-14D60

SPROCKET,REAR

€ 195.00

17-6

6451114D50
ref: 17-6
64511-14D60

SPROCKET,REAR

€ 195.00

18

0912008004
ref: 18

SCREW(8X33.5)

€ 3.00

19

0832211088
ref: 19
08322-01087

WASHER

€ 2.00

20

0831931087
ref: 20

NUT

€ 2.50

21

6531114D00
ref: 21

RIM,RR WHEEL(18X2.15 AL)

€ 248.00

22

6532014D00
ref: 22

SPOKE SET,RR WHEEL

€ 64.50

23

6511014D00
ref: 23

TIRE COMP,REAR 110/100-1

€ 0.00

23

6511014D00
ref: 23

TIRE COMP,REAR 110/100-1

€ 0.00

24

6520040430
ref: 24

TUBE,INNER

€ 0.00

25

5526111010
ref: 25

PROTECTOR,INNER TUBE

€ 3.50

26

6527014200
ref: 26
65270-28E00

STOPPER,BEAD

€ 38.00

27

6527127C00
ref: 27

CUSHION,BEAD STOPPER

€ 5.50

28

0832211088
ref: 28
08322-01087

WASHER

€ 2.00

29

0831022088
ref: 29
08310-00087

NUT 8MM

€ 2.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

30

6920027C00
ref: 30

COVER SET,REAR BRAKE DRUM

€ 27.00

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50

31

6920028C00
ref: 31

COVER SET,RR BRAKE DISC

€ 29.50
