REAR SWINGING ARM (MODEL R/S/T)
DR350 1996 (T) USA (E03)

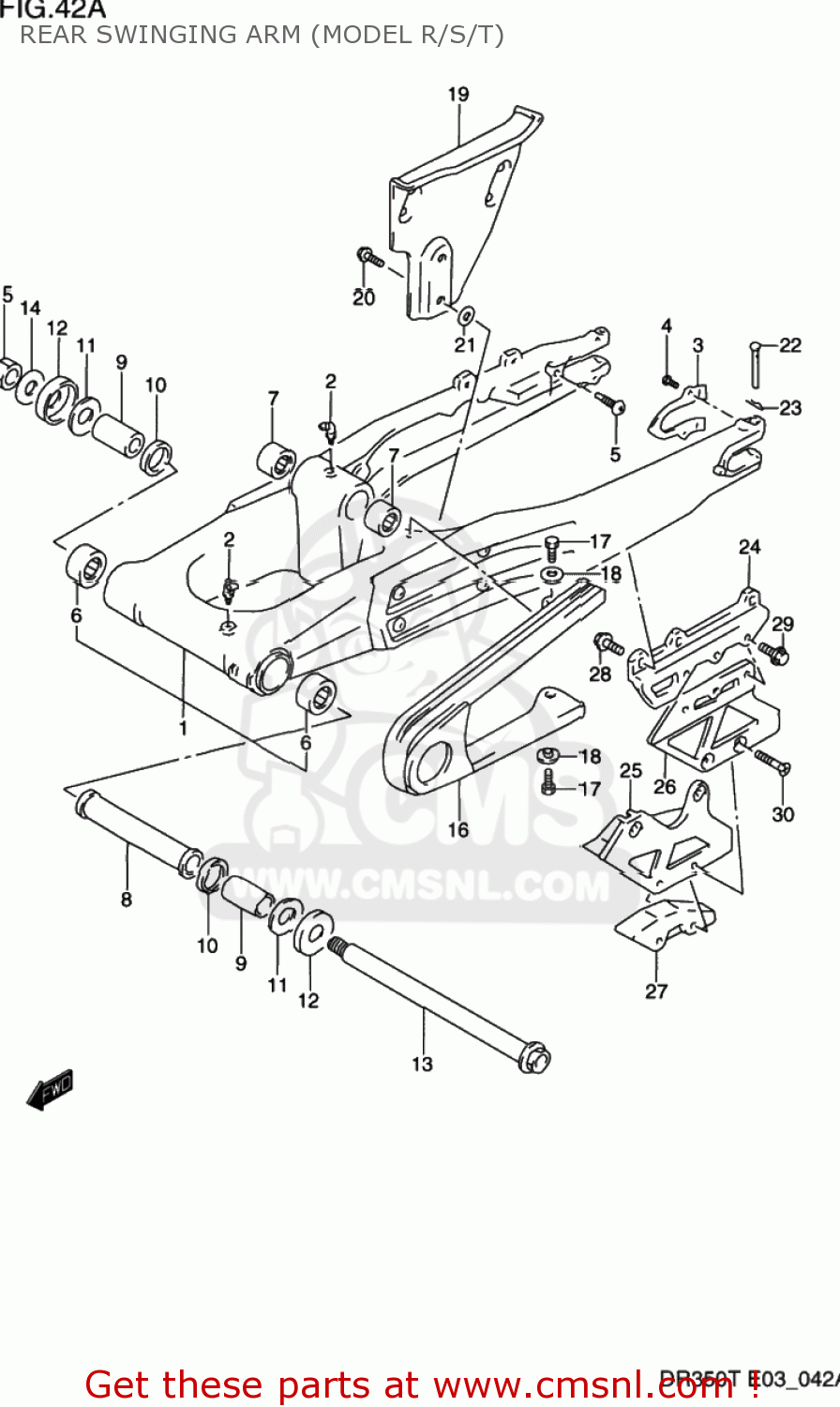

Rear swinging arm (model r/s/t) diagram DR350 1996 (T) USA (E03)
REAR SWINGING ARM (MODEL R/S/T) DR350 1996 (T) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6100014D50
ref: 1
SWINGINGARM ASSY,RR
€ 892.50
2
0835131008
ref: 2
08351-3100A
NIPPLE,GREASE
€ 10.50
3
6112814D00
ref: 3
PLATE,SWING ARM RR
€ 8.00
4
0912505072
ref: 4
09125-05072-XC0
SCREW (5X8)
€ 2.50
5
0913910001
ref: 5
SCREW (M10X21)
€ 6.50
6
0926322017
ref: 6
BEARING(22X29X30)
€ 18.50
7
0926320071
ref: 7
BEARING(20X27X23.5)
€ 21.50
8
0918017097
ref: 8
SPACER,SWING ARM PIVOT,CENTER
€ 12.50
9
6125114D00
ref: 9
SPACER,SWGARM PIVOT BRG
€ 11.00
10
0928522001
ref: 10
SEAL,OIL(22X29X4)
€ 5.00
11
0821117341
ref: 11
WASHER
€ 2.00
12
6126228C10
ref: 12
COVER,SWINGINGARM PIVOT
€ 4.50
13
6121114D00
ref: 13
SHAFT,SWINGING ARM PIVOT
€ 49.50
14
0832201163
ref: 14
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
15
0915916007
ref: 15
NUT
€ 10.50
16
6127314D00
ref: 16
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
17
0150006163
ref: 17
01500-0616A
BOLT
€ 2.00
18
0916906057
ref: 18
WASHER
€ 4.00
19
6131014D10
ref: 19
GUARD,CHAIN
€ 35.50
20
0155006163
ref: 20
01550-0616A
BOLT
€ 2.50
21
0916006115
ref: 21
09160-06131
WASHER
€ 2.50
22
0920006065
ref: 22
PIN
€ 4.00
23
0938506012
ref: 23
CLIP
€ 2.00
24
6115414D10
ref: 24
BRACKET,CHAIN GUIDE
€ 37.00
25
6134127C20
ref: 25
GUIDE,CHAIN
€ 30.50
26
6134228E00
ref: 26
PLATE,CHAIN GUIDE OUTER
€ 39.00
27
6134827C20
ref: 27
DEFENSE,CHAIN GUIDE
€ 26.50
28
0155006163
ref: 28
01550-0616A
BOLT
€ 2.50
29
0154706203
ref: 29
01547-0620B
SCREW
€ 2.50
30
0912606013
ref: 30
SCREW(6X40)
€ 5.00
