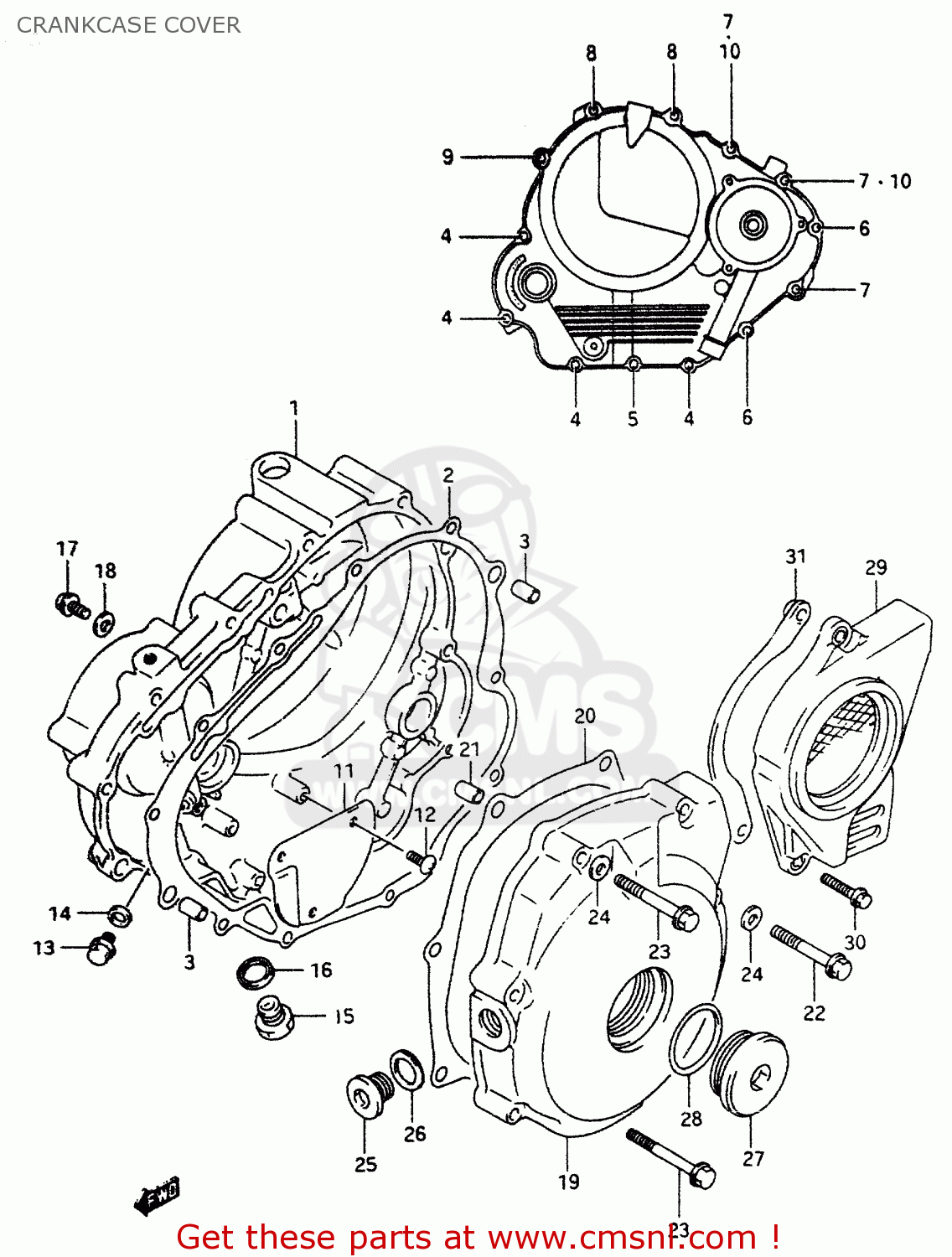

CRANKCASE COVER

ref

part #

description

quantity

1

1134114D06
ref: 1

COVER,CLUTCH

€ 261.00

2

1148214D03
ref: 2

GASKET,CLUTCH COVER (NAS)

€ 24.50

3

0421109149
ref: 3

PIN

€ 2.00

4

0154706253
ref: 4

SCREW

€ 2.50

5

0154706303
ref: 5

BOLT,G/S SWITC

€ 3.00

6

0154706353
ref: 6

BOLT

€ 3.00

7

0154706403
ref: 7

BOLT

€ 3.00

8

0154706603
ref: 8

BOLT

€ 3.50

9

0154706653
ref: 9

BOLT

€ 2.00

10

0916806024
ref: 10

GASKET(5.8X11X1.2) (NAS)

€ 2.00

11

1134914D00
ref: 11

SEPARATOR,OIL RETURN

€ 4.50

12

0214205103
ref: 12

SCREW

€ 2.50

13

0910306078
ref: 13

BOLT(6X8)

€ 2.00

14

0916806004
ref: 14

GASKET(6.2X11X1).2 (NAS)

€ 1.50

15

0924810007
ref: 15

PLUG(10X6.8)

€ 4.50

16

0916810002
ref: 16

GASKET(10X14X3.6) (NAS)

€ 2.00

17

0912806043
ref: 17

SCREW (6X10)

€ 2.00

18

0916806024
ref: 18

GASKET(5.8X11X1.2) (NAS)

€ 2.00

19

1135114D10
ref: 19

COVER,MAGNETO

€ 189.00

20

1148314D03
ref: 20

GASKET,MAGNETO COVER (NAS)

€ 23.00

21

0421109149
ref: 21

PIN

€ 2.00

22

0154706353
ref: 22

BOLT

€ 3.00

23

0154706453
ref: 23

BOLT

€ 3.00

24

0916806024
ref: 24

GASKET(5.8X11X1.2) (NAS)

€ 2.00

25

0924814005
ref: 25

PLUG,14X12

€ 5.00

26

0916814002
ref: 26

GASKET(13.8X18.8X4.8) (NAS)

€ 2.50

27

092593601620H
ref: 27

PLUG(SILVER)

€ 10.50

28

0928033004
ref: 28

O RING(D:3.1,ID:32.7)

€ 2.50

29

1136014D01
ref: 29

COVER,ENGINE SPROCKET

€ 84.00

30

0154706253
ref: 30

SCREW

€ 2.50

31

2764014D10
ref: 31

PLATE,FR CHAIN GUIDE

€ 14.50
