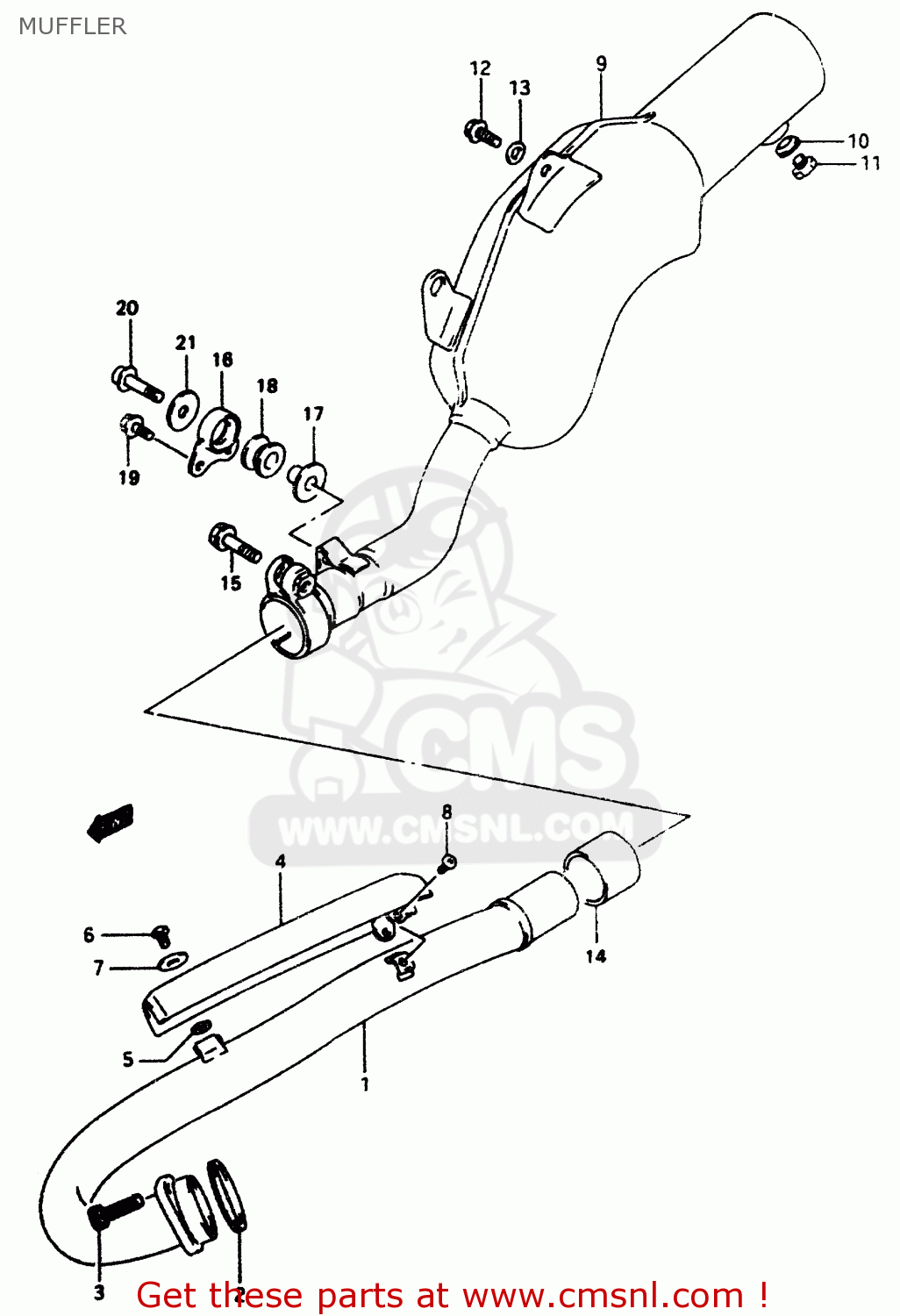

MUFFLER

ref

part #

description

quantity

1

1415014E00
ref: 1

PIPE,EXHAUST

€ 143.00

2

1418140C00
ref: 2

GASKET,EXHAUST PIPE (NAS)

€ 6.50

3

0713008253
ref: 3

BOLT

€ 3.50

4

1418014D10
ref: 4

COVER,EXHAUST PIPE

€ 57.00

5

0916806120
ref: 5

GASKET(5.8X13X1.4) (NAS)

€ 2.00

6

0913906076
ref: 6

SCREW(6X10)

€ 2.50

7

0916006056
ref: 7

WASHER(6.5X18X1)

€ 2.00

8

0214205083
ref: 8

SCREW

€ 2.00

9

1431014D43H01
ref: 9

BODY,MUFFLER

€ 707.00

10

0916812002
ref: 10

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

11

0924712103
ref: 11

PLUG(12X9)

€ 3.50

12

0910308286
ref: 12

BOLT(8X20)

€ 3.50

13

0916008053
ref: 13

WASHER (8.5X19X2.3)

€ 2.00

14

1477113E00
ref: 14

CONNECTOR,MUFFLER

€ 12.00

15

0155008353
ref: 15

BOLT

€ 3.50

16

1477014D01
ref: 16

DAMPER,MUFFLER SUPPORT JOINT

€ 15.00

17

0918008151
ref: 17

SPACER(8.6X12X17.5)

€ 6.00

18

0932012043
ref: 18

CUSHION

€ 8.00

19

0910306083
ref: 19

BOLT 6X12

€ 2.50

20

0910308197
ref: 20

BOLT(8X30)

€ 2.00

21

0916008057
ref: 21

WASHER (8.5X20X1.6)

€ 2.00

all assemblies
