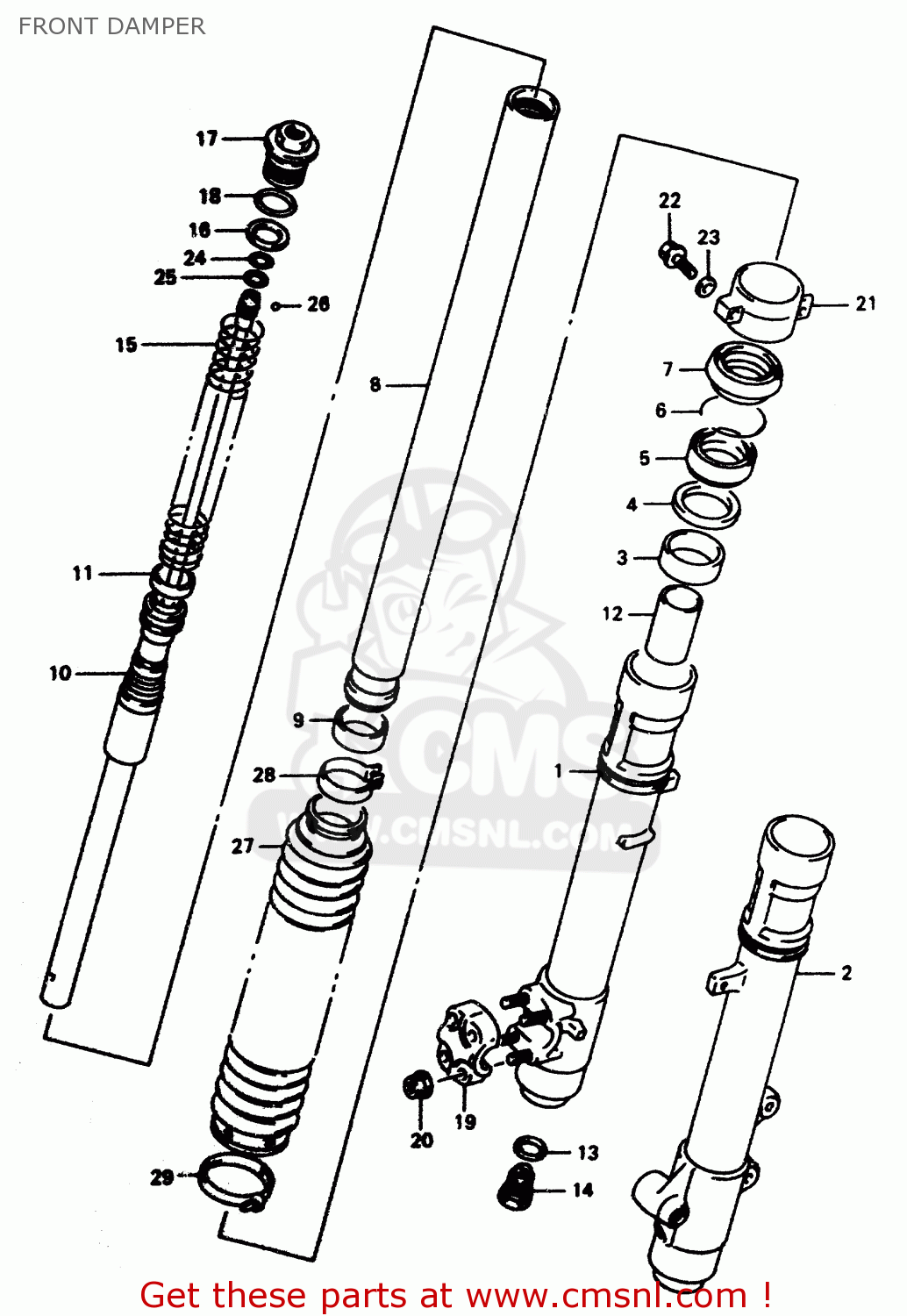

FRONT DAMPER

ref

part #

description

quantity

0

5110314E90
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 1,336.00

0

5110414E90
ref: 0

DAMPER ASSEMBLY,FRONT FORK

€ 1,336.00

1

5113013E00
ref: 1

TUBE,OUTER,RIGHT

€ 459.50

2

5114013E00
ref: 2

TUBE,OUTER,LEFT

€ 459.50

3

5115213E00
ref: 3

BUSH,GUIDE

€ 23.50

4

5116817C00
ref: 4

SPACER,SEAL

€ 5.00

5

5115314D00
ref: 5

SEAL,OIL

€ 20.50

6

5155638B00
ref: 6

CIRCLIP,FORK OIL SEAL

€ 4.50

7

5117314D00
ref: 7

DUST SEAL

€ 19.50

8

5111014E90
ref: 8

TUBE,INNER

€ 327.00

9

5112113E00
ref: 9

BUSH,SLIDE

€ 18.00

10

5119014E90
ref: 10

ROD,FR DAMPER

€ 362.00

11

5119714E30
ref: 11

BUSH,SLIDE

€ 8.50

12

5119514E90
ref: 12

PIECE,OIL LOCK

€ 21.00

13

5114808D00
ref: 13

GASKET (NAS)

€ 5.50

14

5117014E90
ref: 14

BOLT,CTR

€ 89.50

15

5117114E90
ref: 15

SPRING,FRONT

€ 90.50

16

5118617C00
ref: 16

SEAT,SPRING LWR

€ 4.50

17

5135114E90
ref: 17

BOLT,FORK

€ 45.50

18

5111717C00
ref: 18

O RING

€ 3.50

19

5113213E00
ref: 19

HOLDER,AXLE

€ 26.50

20

0831931067
ref: 20

NUT

€ 2.50

21

5120313E00
ref: 21

HOLDER

€ 29.00

22

0713005207
ref: 22

BOLT

€ 2.00

23

0916005034
ref: 23

WASHER (5.3X10X1.0)

€ 1.50

24

0928014003
ref: 24

O-RING (D:2.4 ID:13.8)

€ 3.50

25

5183617C00
ref: 25

EXPANDER

€ 3.50

26

5183517C00
ref: 26

BALL

€ 3.00

27

5157114D00163
ref: 27

BOOT

€ 62.50

28

5157514D00
ref: 28

BAND,BOOT UPR

€ 8.50

29

5157614D00
ref: 29

BAND,BOOT LWR

€ 10.00
