HEADLAMP

DR350 1997 (V)

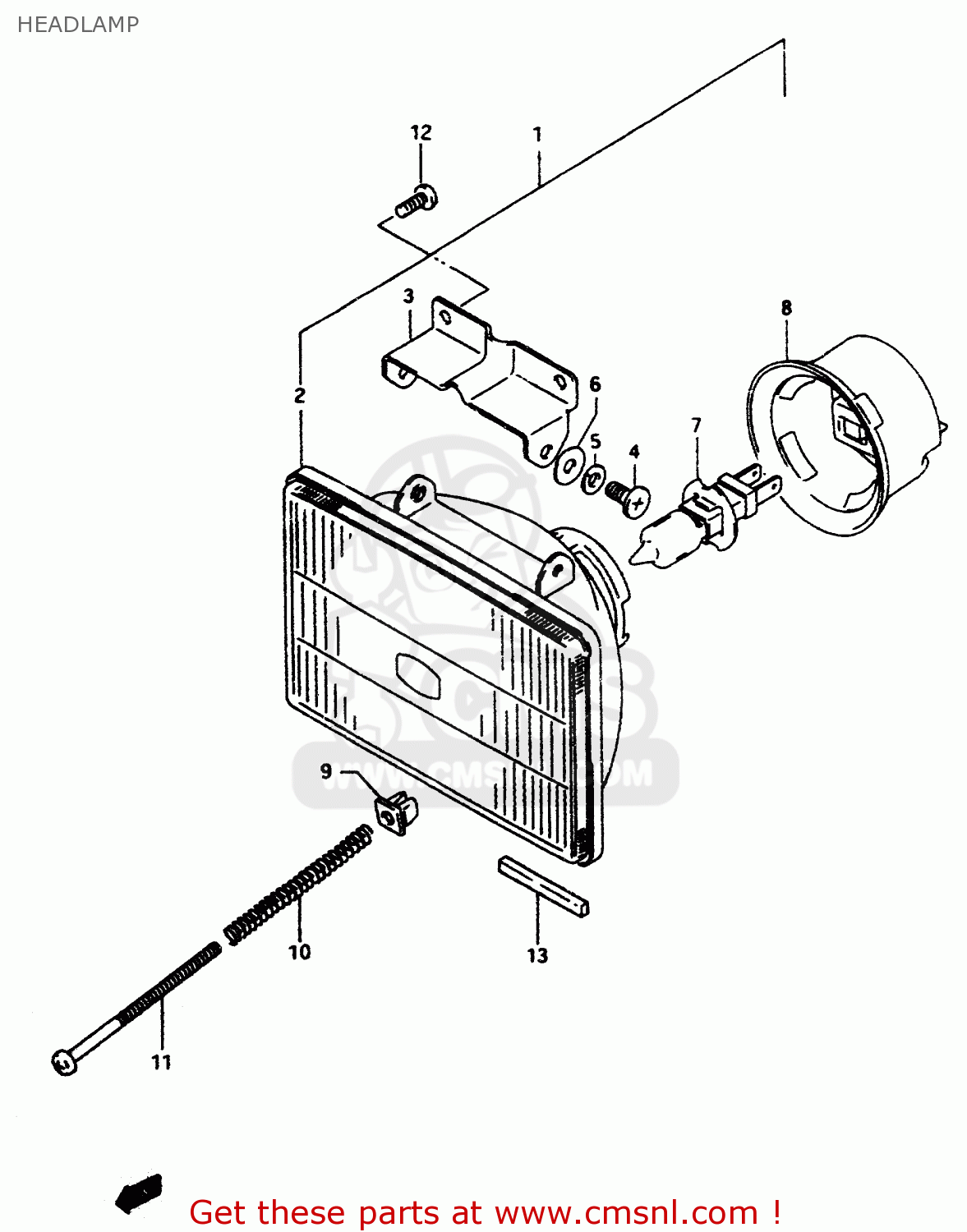

Headlamp diagram DR350 1997 (V)

HEADLAMP DR350 1997 (V)

HEADLAMP DR350 1997 (V)

prices are in EUR

ref

part #

description

quantity

1

3510005D10
ref: 1

HEADLAMP ASSY

€ 150.00

2

3512105D00
ref: 2

UNIT,LAMP

€ 80.00

3

3523005D00
ref: 3

BRACKET,LAMP

€ 9.00

4

3513616700
ref: 4

SCREW

€ 3.00

5

0832101057
ref: 5

WASHER,LOCK

€ 2.00

6

3513805D00
ref: 6

WASHER

€ 1.50

7

0947112160
ref: 7

BULB(12V55W)

€ 24.50

8

3517305D00
ref: 8

COVER,SOCKET

€ 15.00

9

3513512E20
ref: 9

NUT,ADJUSTING

€ 2.50

10

3515430B00
ref: 10

SPRING,HEAD LAMP ADJUSTER

€ 1.50

11

0912504501
ref: 11

SCREW(4X45)

€ 3.00

12

0351104103
ref: 12

SCREW

€ 1.50

13

3365220C00
ref: 13

PROTECTOR(50X50X5)

€ 2.50

14

3595014A00
ref: 14
E28

REFLECTOR,REFLEX FR

€ 15.00
