CAM CHAIN

DR350 1998 (W)

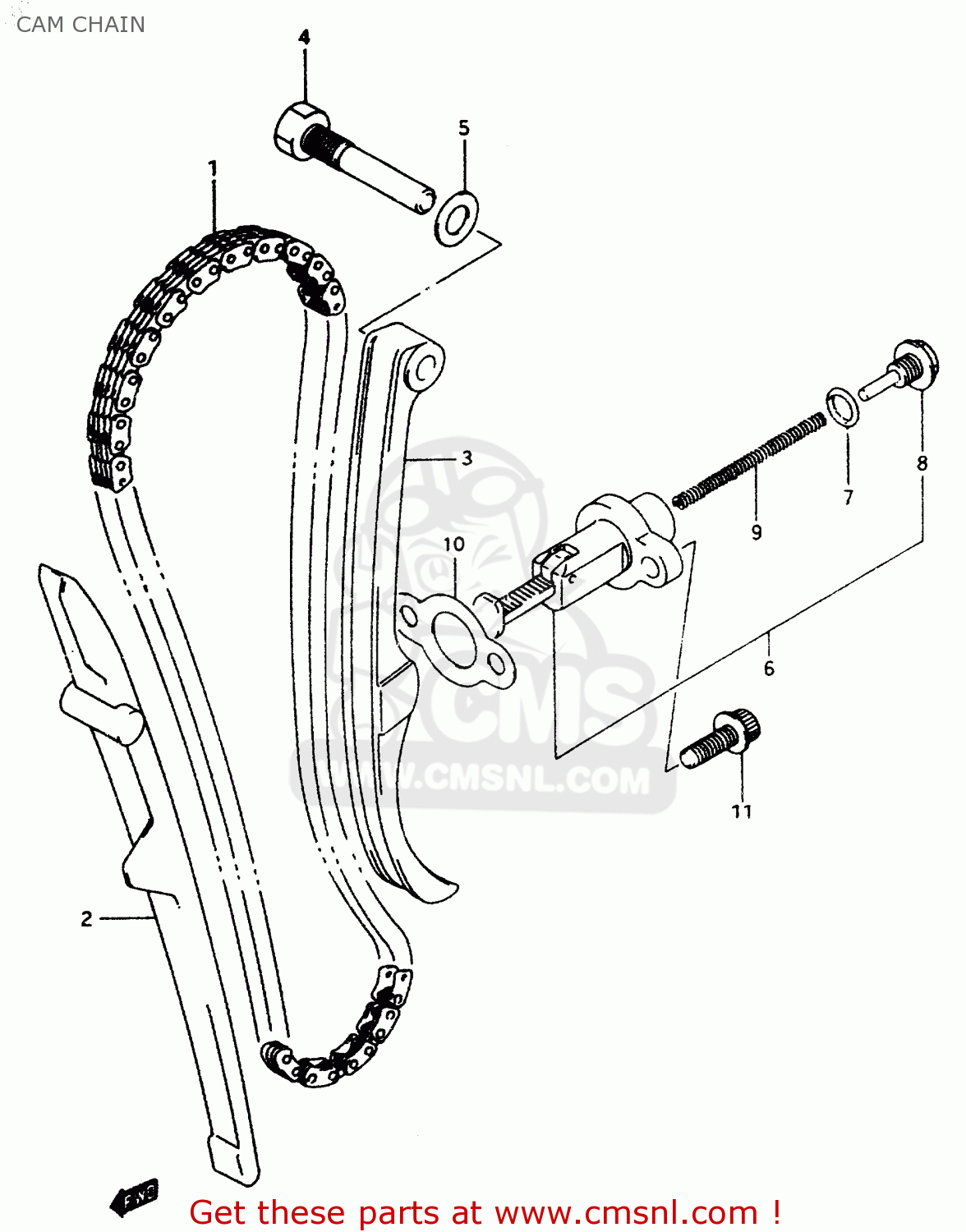

Cam chain diagram DR350 1998 (W)

CAM CHAIN DR350 1998 (W)

CAM CHAIN DR350 1998 (W)

prices are in EUR

ref

part #

description

quantity

1

1276019B71
ref: 1
108LE

CHAIN,CAMSHAFT DRIVE

€ 59.50

2

1277114D10
ref: 2

GUIDE,CAM CHAIN

€ 38.50

3

1281114D10
ref: 3

TENSIONER,CAM CHAIN

€ 30.00

4

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

5

0916808008
ref: 5

GASKET 8.2X14X1 (NAS)

€ 1.00

6

1283029B11
ref: 6

ADJUSTER ASSY,TENSIONER

€ 72.50

7

1283202A00
ref: 7

O RING

€ 2.00

8

1283426B00
ref: 8

PLUG,ADJUSTER

€ 8.00

9

1283329B00
ref: 9

SPRING

€ 2.50

10

1283719B10
ref: 10

GASKET,TENSIONER ADJUSTER (NAS)

€ 3.00

11

0712006203
ref: 11

BOLT

€ 3.50
