SEAT

DR350 1998 (W)

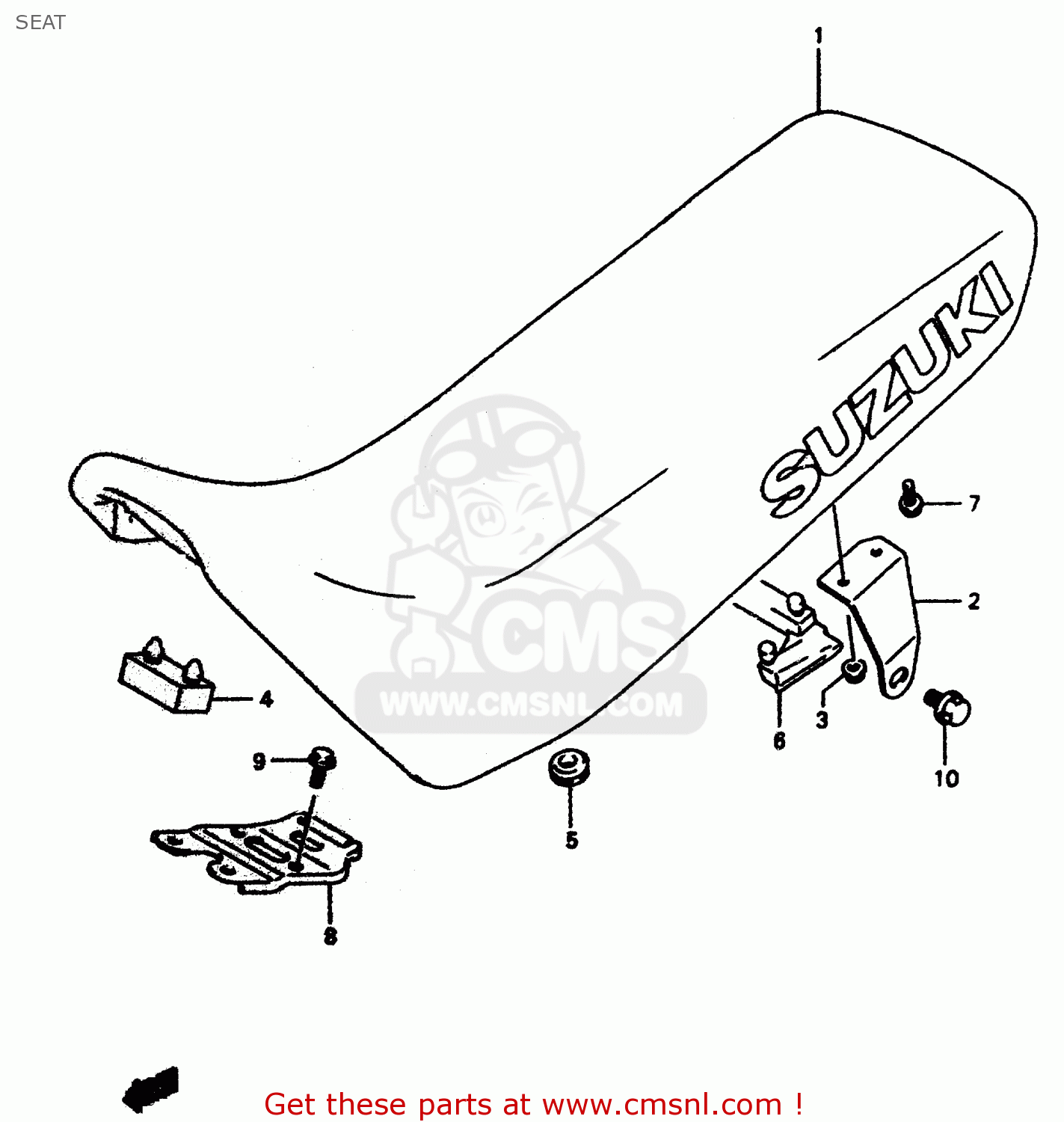

Seat diagram DR350 1998 (W)

SEAT DR350 1998 (W)

SEAT DR350 1998 (W)

prices are in EUR

ref

part #

description

quantity

1

4510014D30F4A
ref: 1

SEAT SET

€ 0.00

2-1

4511614D00
ref: 2-1

BRACKET,SEAT,R

€ 8.00

2-2

4511714D00
ref: 2-2

BRACKET,SEAT,L

€ 8.00

3

0831610063
ref: 3

NUT

€ 2.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932008013
ref: 5

CUSHION

€ 4.00

6

4525514D00
ref: 6

CUSHION

€ 30.00

7

0155006103
ref: 7

BOLT

€ 2.50

8

4512014D00
ref: 8

PLATE,SEAT FR HOOK

€ 12.00

9

0155008123
ref: 9

BOLT

€ 3.50

10

0155008123
ref: 10

BOLT

€ 3.50
