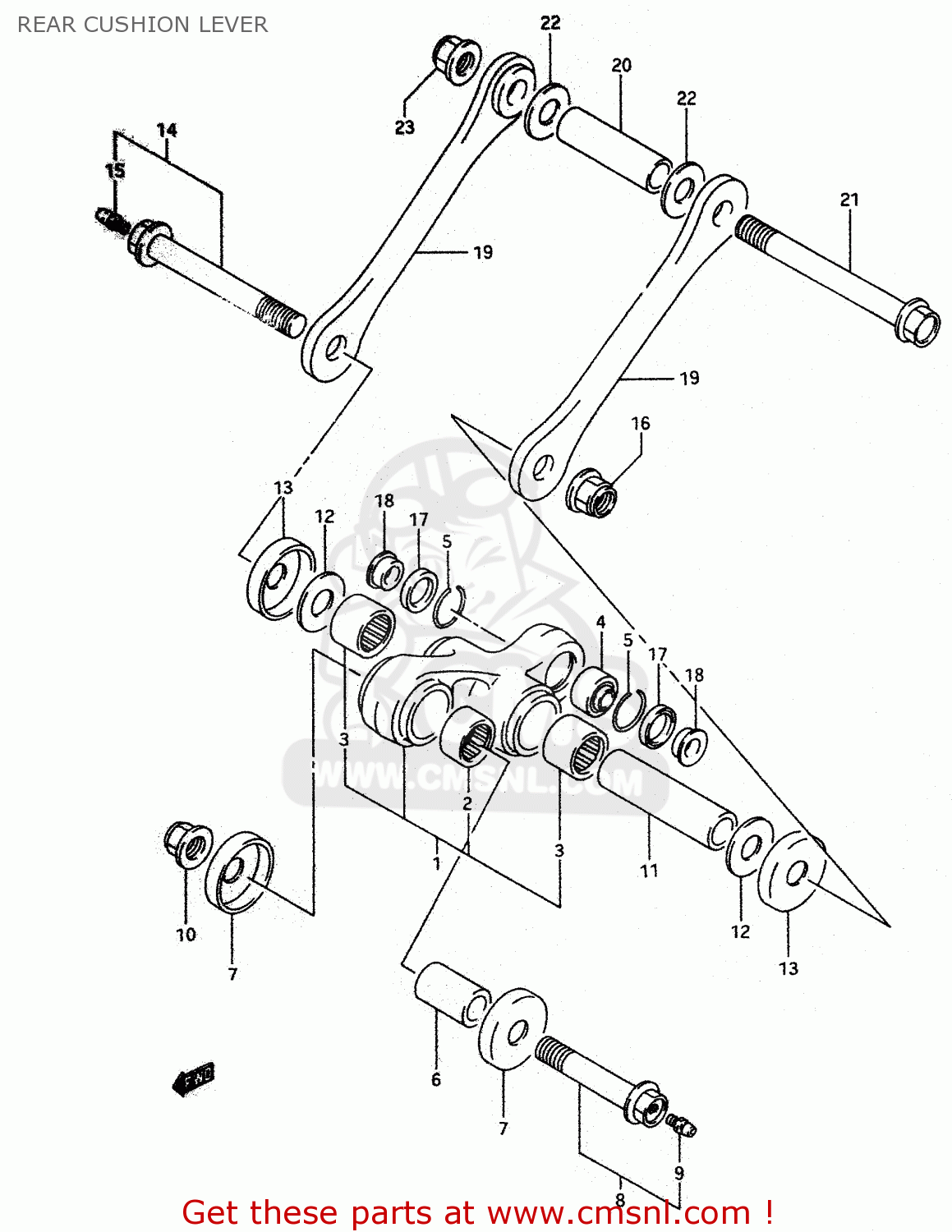

REAR CUSHION LEVER

ref

part #

description

quantity

1

6260214850
ref: 1

LEVER SET,RR CUSHION

€ 282.00

2

0926320074
ref: 2

BEARING(20X27X32)

€ 25.00

3

0926320071
ref: 3

BEARING(20X27X23.5)

€ 21.50

4

6217500B00
ref: 4

BEARING,RR CUSHION LEVER

€ 66.00

5

6265734A01
ref: 5

RING,STOPPER

€ 1.50

6

6231705D00
ref: 6

SPACER,RR CUSHION LEVER FR

€ 18.50

7

6216228E00
ref: 7

SEAL,RR CUSHION LEVER FR DUST

€ 6.50

8

6265014D00
ref: 8

BOLT,RR CUSHION LEVER FR

€ 12.50

9

0835121008
ref: 9

GREASE NIPPLE

€ 13.50

10

0831931128
ref: 10

NUT 12MM

€ 4.00

11

6262614D00
ref: 11

SPACER,RR CUSHION LEVER CTR

€ 20.00

12

0821114321
ref: 12

WASHER

€ 4.00

13

6268327C00
ref: 13

SEAL,RR CUSHION LEVER

€ 7.00

14

6262014D00
ref: 14

BOLT,RR CUSHION LEVER CTR

€ 26.50

15

0835121008
ref: 15

GREASE NIPPLE

€ 13.50

16

0831931148
ref: 16

NUT

€ 9.00

17

0928517D01
ref: 17

SEAL,REAR DUST

€ 0.00

18

6268427C10
ref: 18

COLLAR

€ 9.00

19

6264014D00
ref: 19

ROD,RR CUSHION

€ 44.50

20

6264614D00
ref: 20

SPACER,RR CUSHION ROD

€ 17.00

21

6262214D10
ref: 21

BOLT,RR CUSHION ROD

€ 29.50

22

0821114323
ref: 22

WASHER

€ 3.50

23

0831931148
ref: 23

NUT

€ 9.00
