HANDLEBAR

DR350 1998 (W)

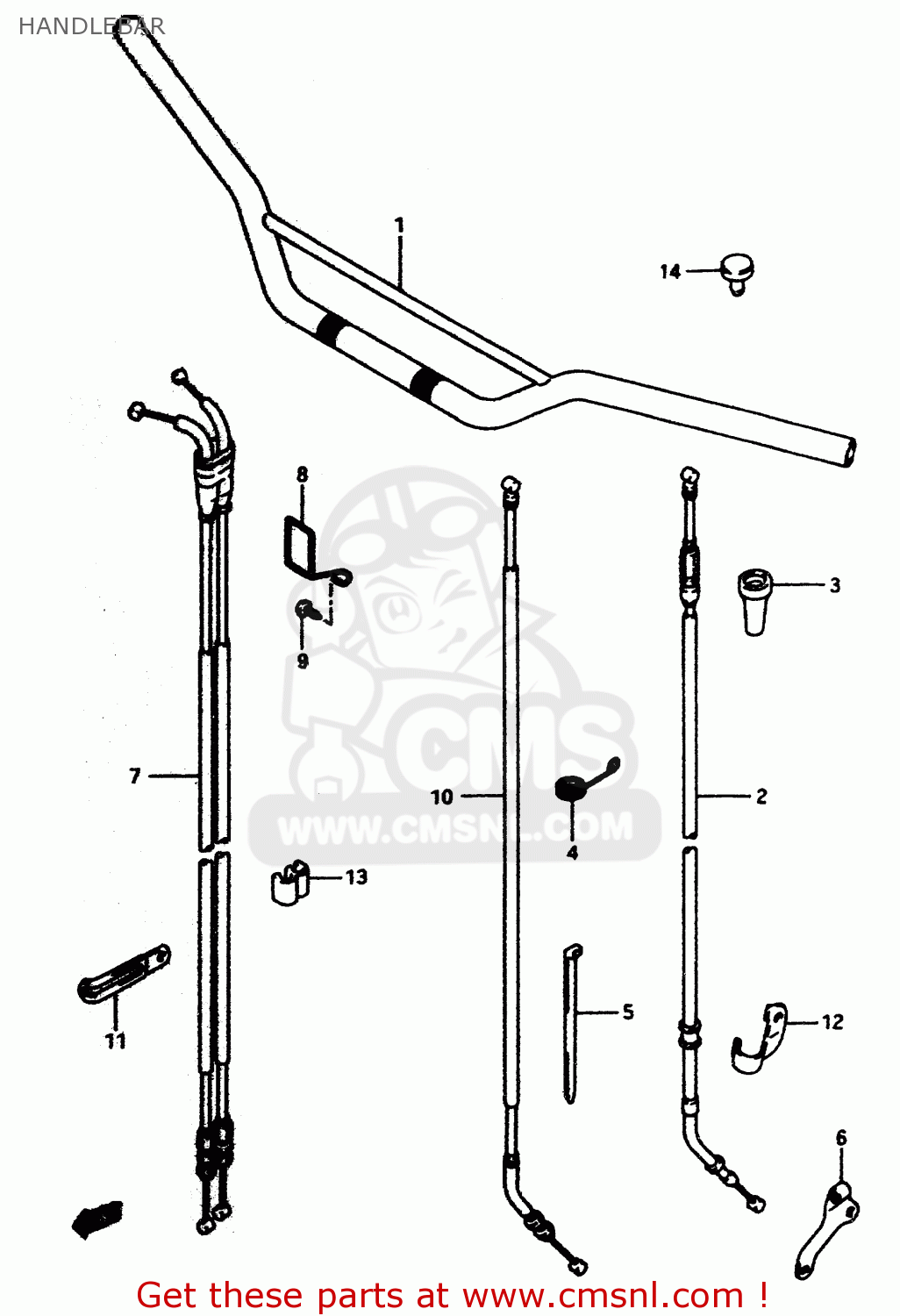

Handlebar diagram DR350 1998 (W)

HANDLEBAR DR350 1998 (W)

HANDLEBAR DR350 1998 (W)

prices are in EUR

ref

part #

description

quantity

1

5611014D50291
ref: 1

HANDLEBAR(BLACK)

€ 89.50

2

5820014D01
ref: 2

CABLE ASSY,CLUTCH

€ 63.50

3

5827331000
ref: 3

BOOT,CLUTCH CABLE

€ 2.50

4

5829415D00
ref: 4

GUIDE,CLUTCH CABLE

€ 6.50

5

0940714407
ref: 5

CLAMP(L:145)

€ 4.00

6

5863414D00
ref: 6

STOPPER,CLUTCH CABLE

€ 4.00

7

5830114D02
ref: 7

CABLE SET,THROTTLE

€ 82.00

8

5829414D00
ref: 8

GUIDE,CABLE

€ 7.50

9

0155006103
ref: 9

BOLT

€ 2.50

10

5890014D10
ref: 10

CABLE ASSY,DECOMP

€ 34.50

11

0940406431
ref: 11

CLAMP(L:65)

€ 2.50

12

5828514D01
ref: 12

CLAMP,CLUTCH CABLE

€ 7.00

13

0940800066
ref: 13

CLIP

€ 1.50
