FUEL COCK

DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

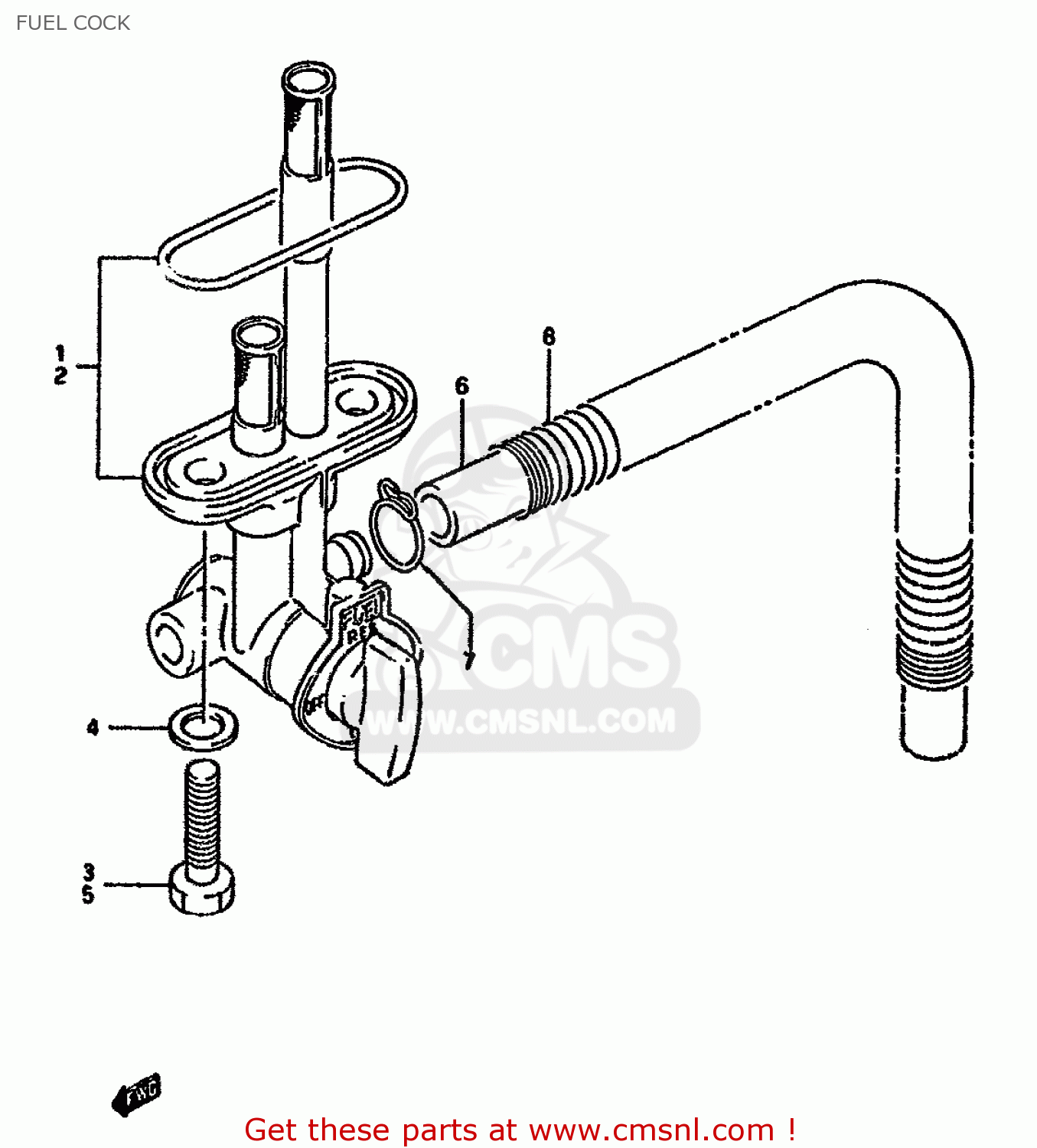

Fuel cock diagram DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

FUEL COCK DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

FUEL COCK DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

prices are in EUR

ref

part #

description

quantity

1-1

4430015D00
ref: 1-1
MODEL L/M/N

COCK ASSY,FUEL

€ 79.00

1-2

4430015D20
ref: 1-2
MODEL P/R

COCK ASSY,FUEL

€ 79.00

2

4430014D00
ref: 2
E24

COCK ASSY,FUEL

€ 81.00

3

0912806006
ref: 3

BOLT(6X20)

€ 2.00

4

0916806026
ref: 4

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

5

0211236168
ref: 5
E24

SCREW

€ 2.00

6-1

0935270103300
ref: 6-1

HOSE

€ 8.00

6-2

0935270103300
ref: 6-2
E24

HOSE

€ 8.00

7

0940110401
ref: 7

CLIP

€ 1.50

8-1

0944013016
ref: 8-1

SPRING

€ 14.50

8-2

0944013031
ref: 8-2
E24

SPRING

€ 2.50

all assemblies
