REAR CUSHION LEVER

DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

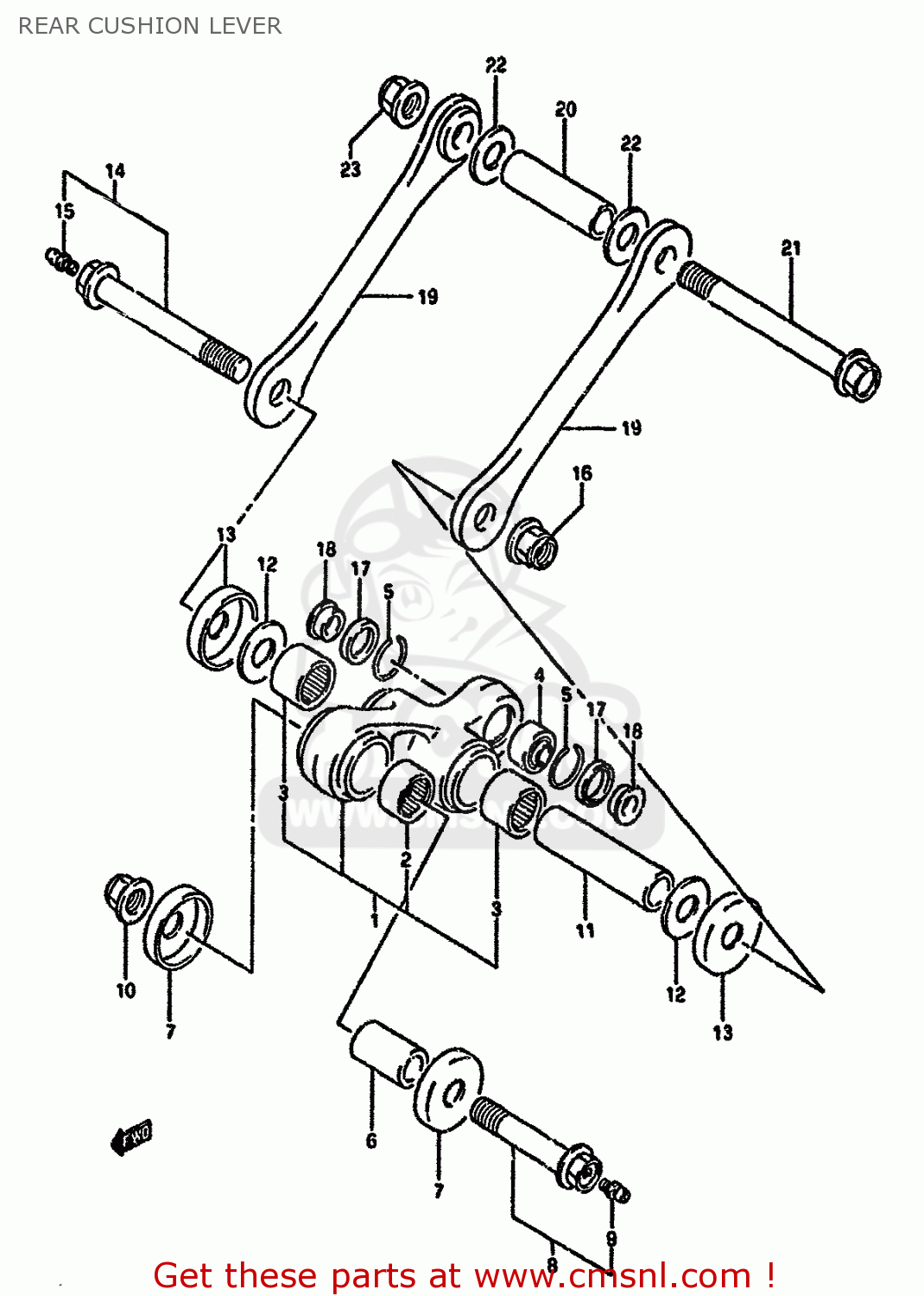

Rear cushion lever diagram DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)

REAR CUSHION LEVER DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)
REAR CUSHION LEVER DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)
REAR CUSHION LEVER DR350S 1990 (L) (E02 E04 E15 E17 E21 E22 E25 E34)
prices are in EUR
ref
part #
description
quantity
1-1
6260214850
ref: 1-1
DR350SL/SM/SN/SP/SR
LEVER SET,RR CUSHION
€ 282.00
1-2
6260015830
ref: 1-2
DR350SHN/SHP/SHR
LEVER SET,REAR CUSHION
€ 290.50
2
0926320074
ref: 2
BEARING(20X27X32)
0926320074
€ 25.00
3
0926320071
ref: 3
BEARING(20X27X23.5)
0926320071
€ 21.50
4
6217527C00
ref: 4
BEARING,REAR SHOCK ABSORBER
€ 66.00
5
6265734A01
ref: 5
RING,STOPPER
6265734A01
€ 1.50
6
6231705D00
ref: 6
SPACER,RR CUSHION LEVER FR
6231705D00
€ 18.50
7
6216228C01
ref: 7
SEAL,REAR CUSHION LEVER
€ 6.50
8
6265014D00
ref: 8
BOLT,RR CUSHION LEVER FR
6265014D00
€ 12.50
9
0835121008
ref: 9
GREASE NIPPLE
0835121008
€ 13.50
10
0831931128
ref: 10
NUT 12MM
0831931128
€ 4.00
11
6262614D00
ref: 11
SPACER,RR CUSHION LEVER CTR
6262614D00
€ 20.00
12
0821114321
ref: 12
WASHER
0821114321
€ 4.00
13
6268327C00
ref: 13
SEAL,RR CUSHION LEVER
6268327C00
€ 7.00
14
6262014D00
ref: 14
BOLT,RR CUSHION LEVER CTR
6262014D00
€ 26.50
15
0835121008
ref: 15
GREASE NIPPLE
0835121008
€ 13.50
16
0831931148
ref: 16
NUT
0831931148
€ 9.00
17
0928517001
ref: 17
SEAL,OIL(17X24X3)
0928517001
€ 3.50
18
6268427C10
ref: 18
COLLAR
6268427C10
€ 9.00
19-1
6264014D00
ref: 19-1
DR350SL/SM/SN/SP/SR
ROD,RR CUSHION
6264014D00
€ 44.50
19-2
6264015D50
ref: 19-2
DR350SHN/SHP/SHR
ROD,REAR CUSHION
€ 0.00
20
6264614D00
ref: 20
SPACER,RR CUSHION ROD
6264614D00
€ 17.00
21-1
6262214D00
ref: 21-1
DR350SL,DR350SHN/SHP
BOLT,REAR CUSHION ROD
€ 9.50
21-2
6262214D10
ref: 21-2
DR350SM/SN/SP/SR
BOLT,RR CUSHION ROD
6262214D10
€ 29.50
22
0821114323
ref: 22
WASHER
0821114323
€ 3.50
23
0831931148
ref: 23
NUT
0831931148
€ 9.00
