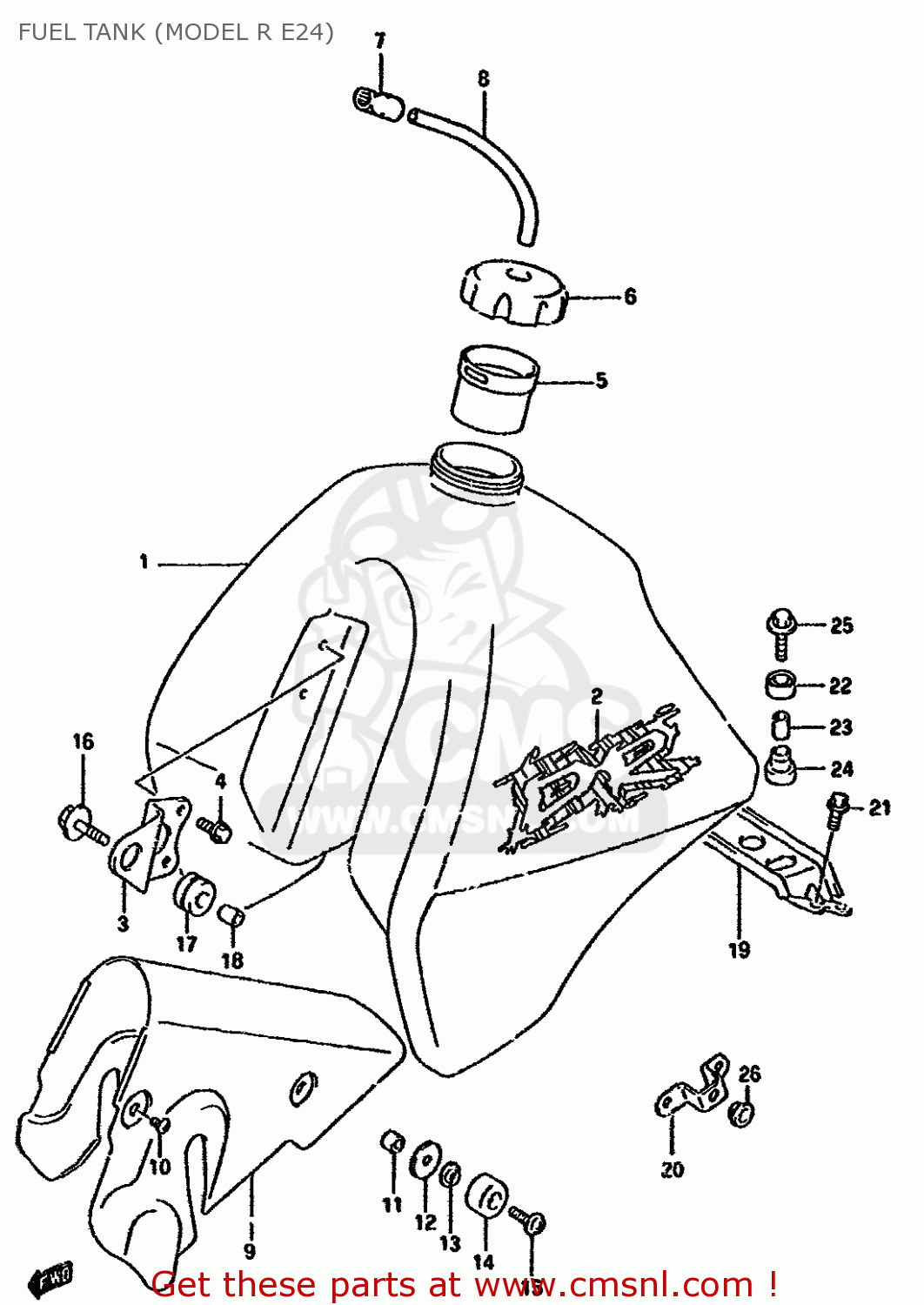

FUEL TANK (MODEL R E24)

ref

part #

description

quantity

1-1

4410014EA030H
ref: 1-1
FOR C3P

TANK ASSY,FUEL(WHITE)

€ 573.50

1-2

4410014EA028X
ref: 1-2
FOR C3K

TANK ASSY,FUEL (WHITE)

€ 0.00

2-1

6811015E30C58
ref: 2-1
FOR 30H

TAPE SET,FUEL TANK

€ 0.00

2-2

6811015E301WN
ref: 2-2
FOR 28X

TAPE SET,FUEL TANK

€ 0.00

3

4413114D10
ref: 3

BRACKET,FUEL TANK,FRONT

€ 23.00

4

0154706123
ref: 4

BOLT

€ 2.00

5

4419919A00
ref: 5

TUBE,FILLER INLET

€ 4.00

6

4420019A01
ref: 6

CAP ASSY,FUEL TANK

€ 40.00

7

4448632101
ref: 7

CLAMP,FUEL TANK BREATHER HOSE

€ 3.50

8

0935250823300
ref: 8

HOSE

€ 13.00

9

4913114D00
ref: 9

HEAT SHIELD,FUEL TANK

€ 16.00

10

0156005103
ref: 10

BOLT

€ 0.00

11

0918006122
ref: 11

SPACER(6.1X14X7.2)

€ 3.00

12

0916006096
ref: 12

WASHER (6.5X26X2.3)

€ 1.50

13

0916906040
ref: 13

WASHER

€ 2.00

14

4514914D00
ref: 14

CUSHION

€ 3.00

15

0211206303
ref: 15

SCREW 6X30

€ 2.50

16

0911808119
ref: 16

BOLT(8X25)

€ 3.00

17

0932012053
ref: 17

CUSHION

€ 7.50

18

0918008147
ref: 18

SPACER (8.8X12X12.5)

€ 4.00

19

4415114D00
ref: 19

BRACKET,FUEL TANK RR

€ 8.00

20

4416414D00
ref: 20

PLATE,FUEL TANK STOPPER

€ 3.50

21

0155006103
ref: 21

BOLT

€ 2.50

22

0932014013
ref: 22

CUSHION

€ 3.00

23

0918006072
ref: 23

SPACER

€ 2.00

24

0932010020
ref: 24

CUSHION

€ 4.00

25

0911606078
ref: 25

BOLT

€ 2.50

26

0932110018
ref: 26

CUSHION

€ 5.00

25

0932014013
ref: 25

CUSHION

€ 3.00

26

0918006072
ref: 26

SPACER

€ 2.00

27

0932010020
ref: 27

CUSHION

€ 4.00

28

0911606078
ref: 28

BOLT

€ 2.50

29

0932110018
ref: 29

CUSHION

€ 5.00

all assemblies
