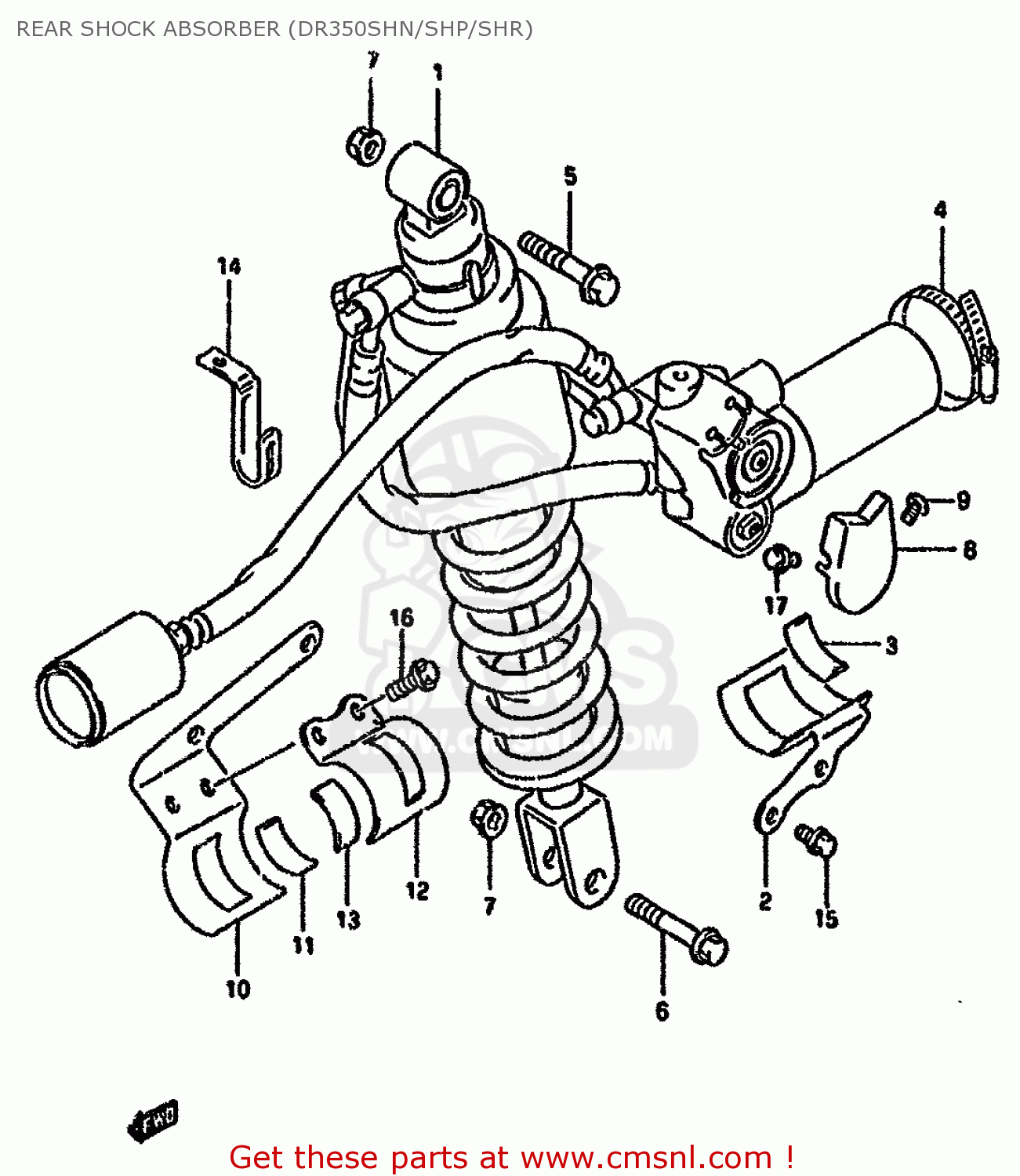

REAR SHOCK ABSORBER (DR350SHN/SHP/SHR)

ref

part #

description

quantity

1-1

6210014D5028W
ref: 1-1
DR350SHN/SHP FOR 30H

ABSORBER ASSY,REAR SHOCK (WHITE)

€ 2,518.50

1-2

6210014D501TS
ref: 1-2
DR350SHR FOR C3P,C3K

ABSORBER ASSY,REAR SHOCK (WHITE)

€ 2,518.50

2

6242115D50
ref: 2

BRACKET,RESERVER TANK

€ 0.00

3

6242301C00
ref: 3

CUSHION,REAR SHOCK ABSORBER

€ 4.50

4

0940257501
ref: 4

CLAMP

€ 8.50

5

6231128C00
ref: 5

BOLT,REAR SHOCK ABSORBER

€ 4.00

6

6264814500
ref: 6

BOLT,RR CUSHION ROD UPR

€ 3.00

7

0915910058
ref: 7

NUT

€ 4.00

8

6244215050
ref: 8

COVER,CHAMBER CAP

€ 0.00

9-1

0214205084
ref: 9-1
DR350SHN/SHP

SCREW

€ 2.00

9-2

0214205083
ref: 9-2
DR350SHR

SCREW

€ 2.00

10

6244515D50
ref: 10

BRACKET,JOINT NO.1

€ 0.00

11

6242301C00
ref: 11

CUSHION,REAR SHOCK ABSORBER

€ 4.50

12

6244615D50
ref: 12

BRACKET,JOINT NO.2

€ 0.00

13

6242301C00
ref: 13

CUSHION,REAR SHOCK ABSORBER

€ 4.50

14

0940315303
ref: 14

CLAMP

€ 0.00

15-1

0151706105
ref: 15-1
DR350SHN/SHP

BOLT

€ 2.50

15-2

0155006103
ref: 15-2
DR350SHR

BOLT

€ 2.50

16-1

0151708128
ref: 16-1
DR350SHN/SHP

BOLT 8X12

€ 3.50

16-2

0155008123
ref: 16-2
DR350SHR

BOLT

€ 3.50

17-1

0151705088
ref: 17-1
DR350SHN/SHP

BOLT

€ 2.50

17-2

0155005083
ref: 17-2
DR350SHR

BOLT

€ 2.50
