REAR FENDER (MODEL L/M/N/P)

DR350SE 1991 (M) USA (E03)

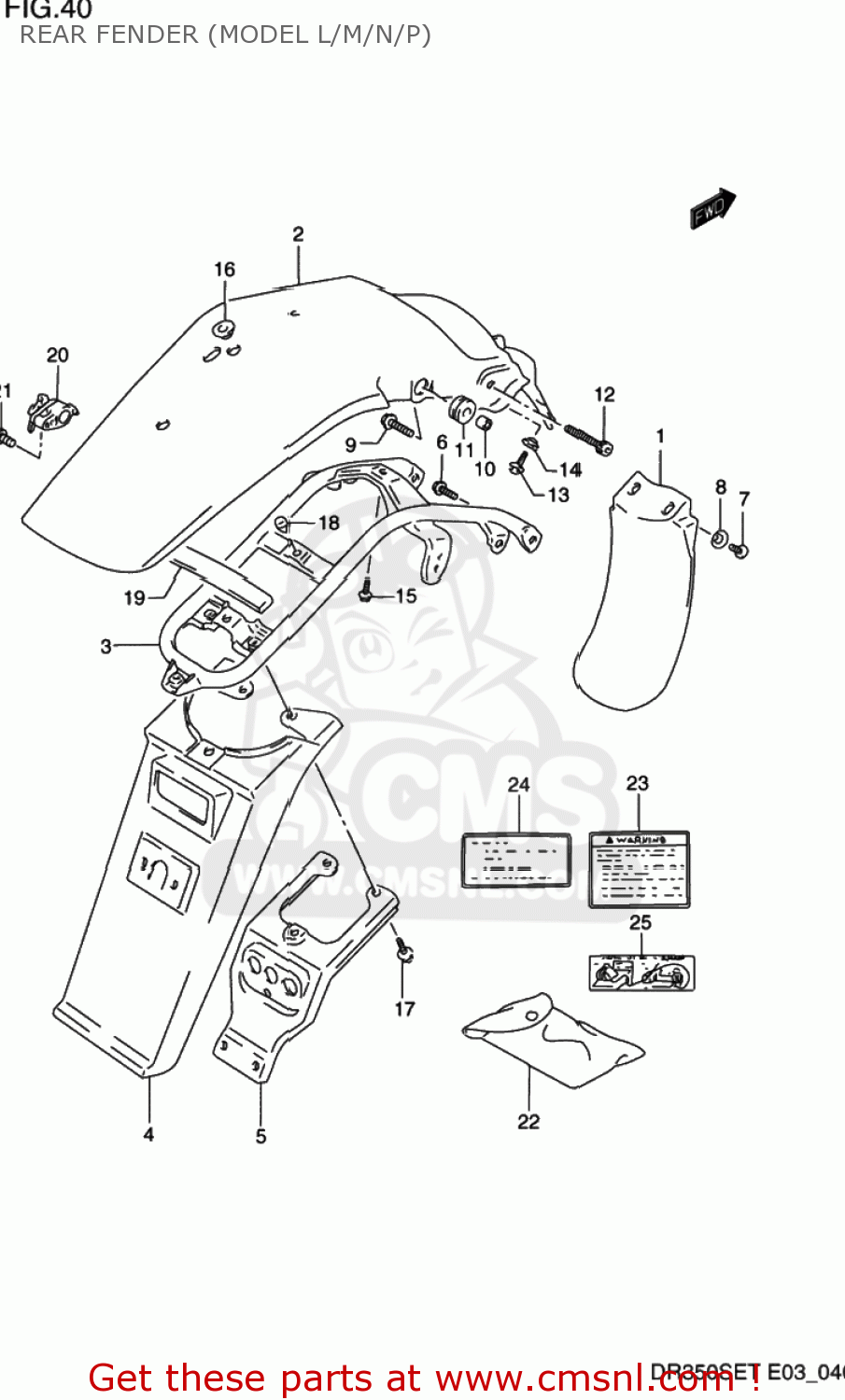

Rear fender (model l/m/n/p) diagram DR350SE 1991 (M) USA (E03)

REAR FENDER (MODEL L/M/N/P) DR350SE 1991 (M) USA (E03)
REAR FENDER (MODEL L/M/N/P) DR350SE 1991 (M) USA (E03)
REAR FENDER (MODEL L/M/N/P) DR350SE 1991 (M) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6311214D00
ref: 1
BODY,RR FENDER FR
6311214D00
€ 19.00
2-1
6311314D2030H
ref: 2-1
63113-14D23-30H
FENDER,REAR
€ 112.50
2-1
6311314D2030H
ref: 2-1
63113-14D23-30H
FENDER,REAR
€ 112.50
2-1
6311314D2030H
ref: 2-1
63113-14D23-30H
FENDER,REAR
€ 112.50
2-1
6311314D2030H
ref: 2-1
63113-14D23-30H
FENDER,REAR
€ 112.50
2-2
6311314D2130H
ref: 2-2
63113-14D23-30H
FENDER,REAR
€ 112.50
2-2
6311314D2130H
ref: 2-2
63113-14D23-30H
FENDER,REAR
€ 112.50
2-3
6311314D2230H
ref: 2-3
63113-14D23-30H
FENDER,REAR
€ 112.50
2-3
6311314D2230H
ref: 2-3
63113-14D23-30H
FENDER,REAR
€ 112.50
3-1
6312014D10
ref: 3-1
63120-14D11
REINFORCEMENT,REAR FENDER
€ 104.50
3-2
6312014D11
ref: 3-2
REINF,RR FENDER
€ 104.50
4
6331103D20
ref: 4
EXTENSION,RR FENDER
€ 0.00
5-1
6332003D02
ref: 5-1
63320-03D03
REINFORCMENT,REAR FENDER
€ 44.00
5-2
6332003D03
ref: 5-2
REINFORCEMENT,RR FENDER EXT
€ 44.00
6
0910308291
ref: 6
09103-08382
BOLT
€ 3.00
7
0214206125
ref: 7
02142-0612A
SCREW 6X12
0214206125
€ 2.00
8
0916906051
ref: 8
09169-06055
WASHER
€ 2.50
9
0910308292
ref: 9
BOLT(8X30)
€ 3.00
10
0918008030
ref: 10
09180-08187
SPACER (8.8X12X7)
0918008030
€ 3.50
11-1
6319114D00
ref: 11-1
09320-12011
CUSHION,REAR FENDER
€ 3.00
11-1
6319114D00
ref: 11-1
09320-12011
CUSHION,REAR FENDER
€ 3.00
11-2
0932012011
ref: 11-2
CUSHION
0932012011
€ 3.00
12
0910608105
ref: 12
BOLT(8X30)
0910608105
€ 3.00
13
0155006167
ref: 13
BOLT
0155006167
€ 1.50
14
0916906038
ref: 14
WASHER
0916906038
€ 2.50
15-1
0911806102
ref: 15-1
BOLT 6X16
€ 0.00
15-2
0158008167
ref: 15-2
BOLT
0158008167
€ 3.00
16-1
0916012004
ref: 16-1
09160-12088
WASHER (12.5X24X1.6)
0916012004
€ 2.00
16-2
0916014032
ref: 16-2
WASHER(14.2X26X1.2)
€ 1.50
17
0158006163
ref: 17
01580-0616A
BOLT
0158006163
€ 2.50
18
0932106013
ref: 18
CUSHION
0932106013
€ 2.50
19
6319214D00
ref: 19
63191-44A00
CUSHION,REAR FENDER
6319214D00
€ 4.00
20
9570003810
ref: 20
95700-03811
LOCK SET,HELMET
9570003810
€ 59.50
21
0211205125
ref: 21
02112-0512A
SCREW
0211205125
€ 1.50
22
0980020039
ref: 22
09800-21034
TOOL SET
€ 55.00
23
6831915D00
ref: 23
68319-33E01
LABEL
€ 8.00
24
6839314D10
ref: 24
LABEL,STARTING CAUTION
€ 4.50
25
6838715D00
ref: 25
LABEL,PIPING DIAG
€ 0.00
26
6833214D00
ref: 26
LABEL (TIRE AIR PRESSURE)
€ 0.00
27-1
9901114D7003A
ref: 27-1
MANUAL, OWNER'S
€ 0.00
27-2
9901114D7103A
ref: 27-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
27-3
9901114D7203A
ref: 27-3
NO PRODUCT DESCRIPTION AVAILABLE
€ 9.50
27-4
9901114D7303A
ref: 27-4
MANUAL, OWNER'S (MODEL PDRAWING NOT SHOWN)
€ 0.00
27-4
9901114D7303A
ref: 27-4
MANUAL, OWNER'S (MODEL PDRAWING NOT SHOWN)
€ 0.00
