SPEEDOMETER
DR350SE 1991 (M) USA (E03)

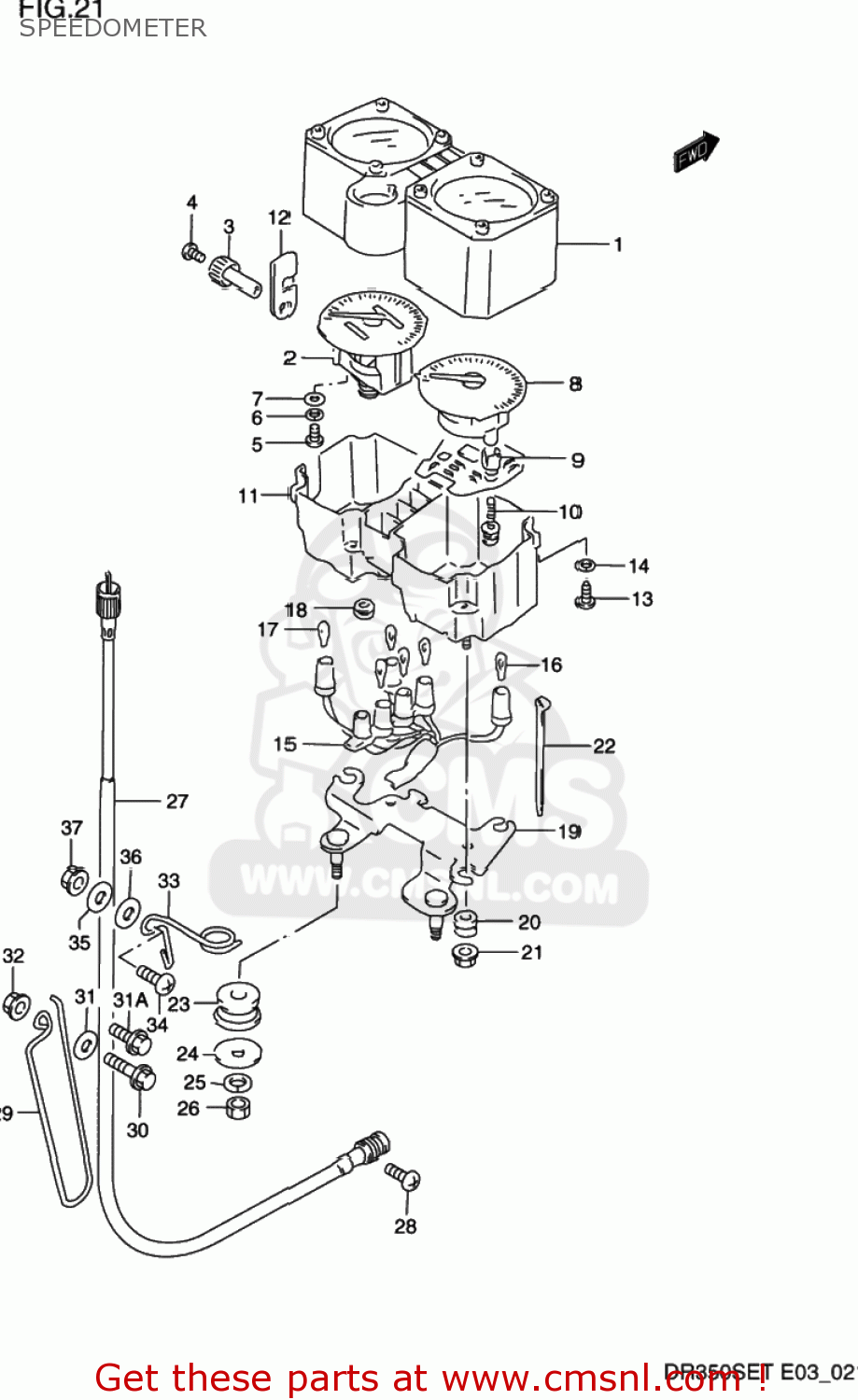

Speedometer diagram DR350SE 1991 (M) USA (E03)
SPEEDOMETER DR350SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3415044B40
ref: 1
34150-14D20
HOOD,METER
€ 99.50
2
3411014D00
ref: 2
SPEEDOMETER(MILE/KILO)
€ 359.00
3
3412444B30
ref: 3
KNOB,TRIP
€ 7.00
4
3418412D00
ref: 4
SCREW,TRIP KNOB
€ 2.00
5
0211203103
ref: 5
02112-0310B
SCREW
€ 1.50
6
0832121033
ref: 6
08321-2103B
WASHER,LOCK
€ 1.50
7
0832201033
ref: 7
08322-0103B
WASHER
€ 1.50
8
3421014D00
ref: 8
TACHOMETER
€ 313.50
9
3418714A00
ref: 9
SPACER
€ 4.50
10
3428314A00
ref: 10
02112-74253
SCREW
€ 2.00
11
3411144B10
ref: 11
CASE,METER
€ 54.00
12
3419614A00
ref: 12
CUSHION,METER
€ 11.50
13-1
0311205129
ref: 13-1
03111-0512A
SCREW
€ 1.50
13-2
0311205123
ref: 13-2
03111-0512A
SCREW
€ 1.50
14
0832101057
ref: 14
08321-0105A
WASHER,LOCK
€ 2.00
15
3417014D00
ref: 15
34170-44B11
SOCKET,METER
€ 78.00
16
0947112085
ref: 16
BULB(12V3W,WB371,T7)
€ 3.00
17
0947112100
ref: 17
BULB(12V1.7W,WB372,T7)
€ 2.00
18
3419414A00
ref: 18
CAP
€ 8.00
19
3495014D00
ref: 19
BRACKET
€ 99.50
20
3499643410
ref: 20
CUSHION,METER
€ 3.00
21-1
3418514A00
ref: 21-1
08310-0005A
NUT
€ 5.50
21-2
0831000053
ref: 21-2
08310-0005A
NUT
€ 2.50
22-1
3495416730
ref: 22-1
09404-10417
CLAMP
€ 2.50
22-2
0940410417
ref: 22-2
CLAMP(L:97)
€ 2.50
23
3495631001
ref: 23
CUSHION,METER BRACKET
€ 4.50
24
0916008057
ref: 24
09160-08135
WASHER (8.5X20X1.6)
€ 2.00
25-1
0832121084
ref: 25-1
08321-0108A
WASHER,LOCK,8.
€ 2.50
25-2
0916208008
ref: 25-2
WASHER,LOCK
€ 2.00
26-1
0831012085
ref: 26-1
08310-0008A
NUT ,8MM
€ 1.50
26-2
0831000083
ref: 26-2
08310-0008A
NUT
€ 1.50
27-1
3491014D11
ref: 27-1
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
27-2
3491014D12
ref: 27-2
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
27-3
3491014D13
ref: 27-3
34910-12E00
CABLE ASSEMBLY,SPEEDOMETER
€ 40.50
28-1
0211205164
ref: 28-1
SCREW
€ 2.00
28-2
0211205163
ref: 28-2
02112-0516A
SCREW
€ 2.00
29
3493814D30
ref: 29
GUIDE,METER CABLE NO.2
€ 8.00
30-1
0155006207
ref: 30-1
BOLT
€ 2.50
30-2
0155006203
ref: 30-2
01550-0620A
BOLT
€ 2.50
31A
0911606167
ref: 31A
BOLT(6X20)
€ 2.00
31-1
0916006020
ref: 31-1
09160-06066
WASHER
€ 2.00
31-2
0916006066
ref: 31-2
WASHER(6.5X20X1.6)
€ 2.00
32-1
0915906017
ref: 32-1
08319-31067
NUT
€ 2.50
32-2
0831610063
ref: 32-2
08316-1006B
NUT
€ 2.50
33
3493814D20
ref: 33
34938-14D21
GUIDE,METER CABLE NO.3
€ 6.50
34-1
0214206167
ref: 34-1
SCREW
€ 2.00
34-2
0214206163
ref: 34-2
02142-0616A
SCREW
€ 2.50
35
0916006057
ref: 35
09160-06109
WASHER
€ 2.00
36
0916906053
ref: 36
WASHER
€ 2.00
37-1
0831000067
ref: 37-1
NUT
€ 2.50
37-2
0831000063
ref: 37-2
08310-0006A
NUT 6MM
€ 2.00
