REAR MASTER CYLINDER
DR350SE 1991 (M) USA (E03)

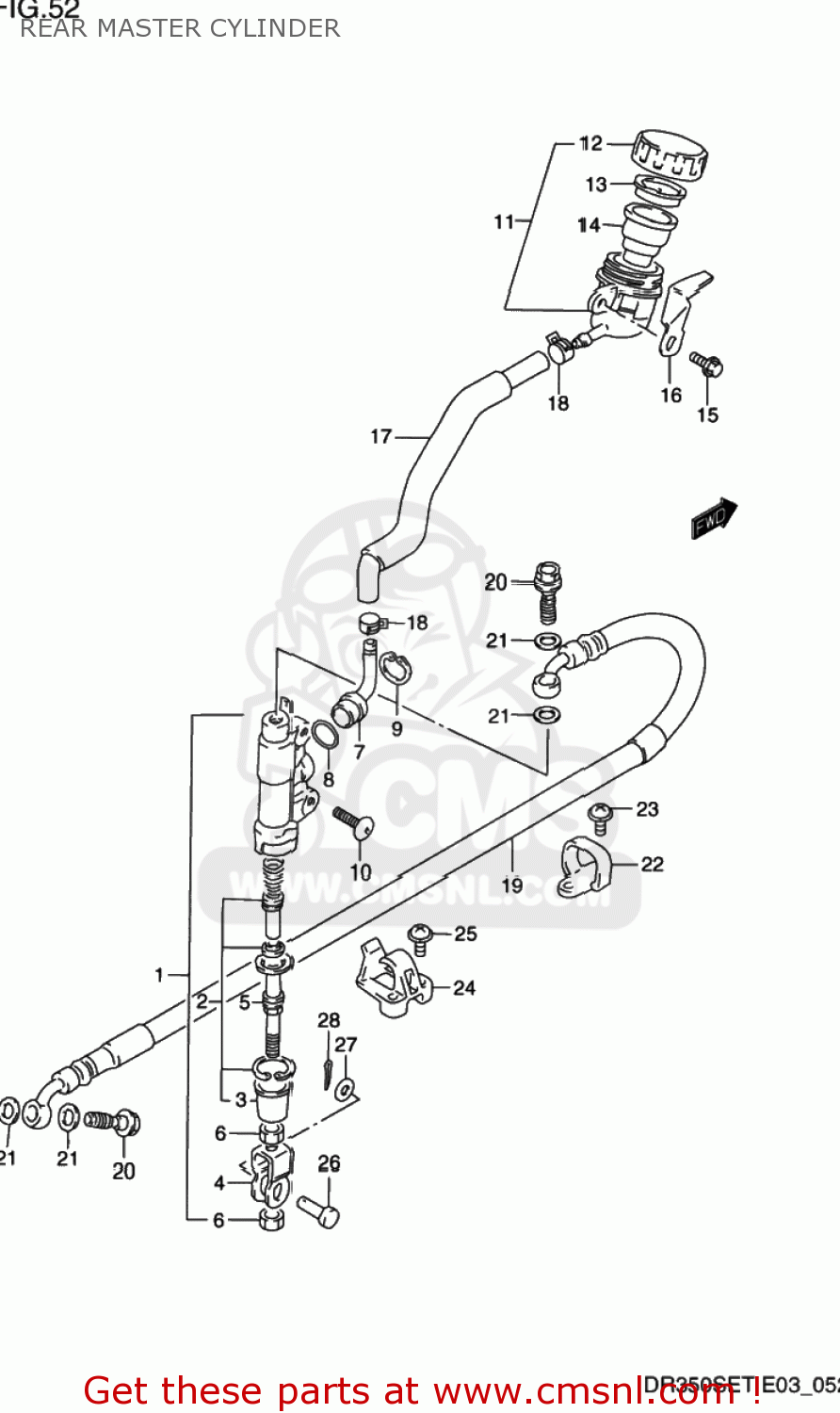

Rear master cylinder diagram DR350SE 1991 (M) USA (E03)
REAR MASTER CYLINDER DR350SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960014D00
ref: 1
69600-14D01
CYLINDER ASSEMBLY,REAR MASTER
€ 167.00
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969200B21
ref: 4
YOKE
€ 13.50
5
6967048B00
ref: 5
ROD,PUSH
€ 20.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
5967217C00
ref: 7
CONNECTOR
€ 8.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10-1
0913906024
ref: 10-1
09139-06067
SCREW
€ 3.00
10-2
0913906067
ref: 10-2
SCREW(6X16)
€ 3.00
11
6974003D00
ref: 11
TANK ASSY,RR BRAKE RESERVOIR
€ 40.50
12
6966903D00
ref: 12
CAP
€ 11.00
13
6966800B20
ref: 13
PLATE
€ 4.00
14
6966700B20
ref: 14
DIAPHRAGM
€ 9.50
15-1
0151706164
ref: 15-1
01550-0616A
BOLT
€ 2.50
15-2
0155006163
ref: 15-2
01550-0616A
BOLT
€ 2.50
16
6974314D10
ref: 16
GUARD,RSVR TANK CAP
€ 4.50
17
6973014D00
ref: 17
HOSE COMP,RESERVOIR TANK
€ 26.00
18-1
0940112402
ref: 18-1
09401-12404
CLAMP
€ 2.50
18-2
0940112404
ref: 18-2
CLIP
€ 2.50
19
6948014D00
ref: 19
HOSE,RR BRAKE
€ 65.00
20-1
0936010017
ref: 20-1
BOLT UNION
€ 6.50
20-2
0936010039
ref: 20-2
09360-10061
BOLT UNION
€ 6.50
20-2
0936010039
ref: 20-2
09360-10061
BOLT UNION
€ 6.50
20-3
0936010040
ref: 20-3
09360-10062
BOLT UNION
€ 5.00
20-3
0936010040
ref: 20-3
09360-10062
BOLT UNION
€ 5.00
21
0916110009
ref: 21
WASHER(10X15X1.5)
€ 2.00
22
6119600B21
ref: 22
GUIDE,RR BRAKE HOSE
€ 6.00
23-1
0912505042
ref: 23-1
SCREW(5X10)
€ 2.50
23-2
0214205103
ref: 23-2
02142-0510B
SCREW
€ 2.50
24
6119603D00
ref: 24
GUIDE,RR BRAKE HOSE
€ 3.00
25-1
0211235168
ref: 25-1
02112-35167
SCREW
€ 2.50
25-2
0211235163
ref: 25-2
02112-3516A
SCREW
€ 2.50
26
0920008048
ref: 26
PIN(8X20)
€ 3.00
27
0916008074
ref: 27
WASHER(8.5X13X1.6)
€ 2.50
28
0411125158
ref: 28
04111-2515A
PIN 20X15
€ 1.50
