REAR SWINGING ARM (MODEL R/S/T)
DR350SE 1991 (M) USA (E03)

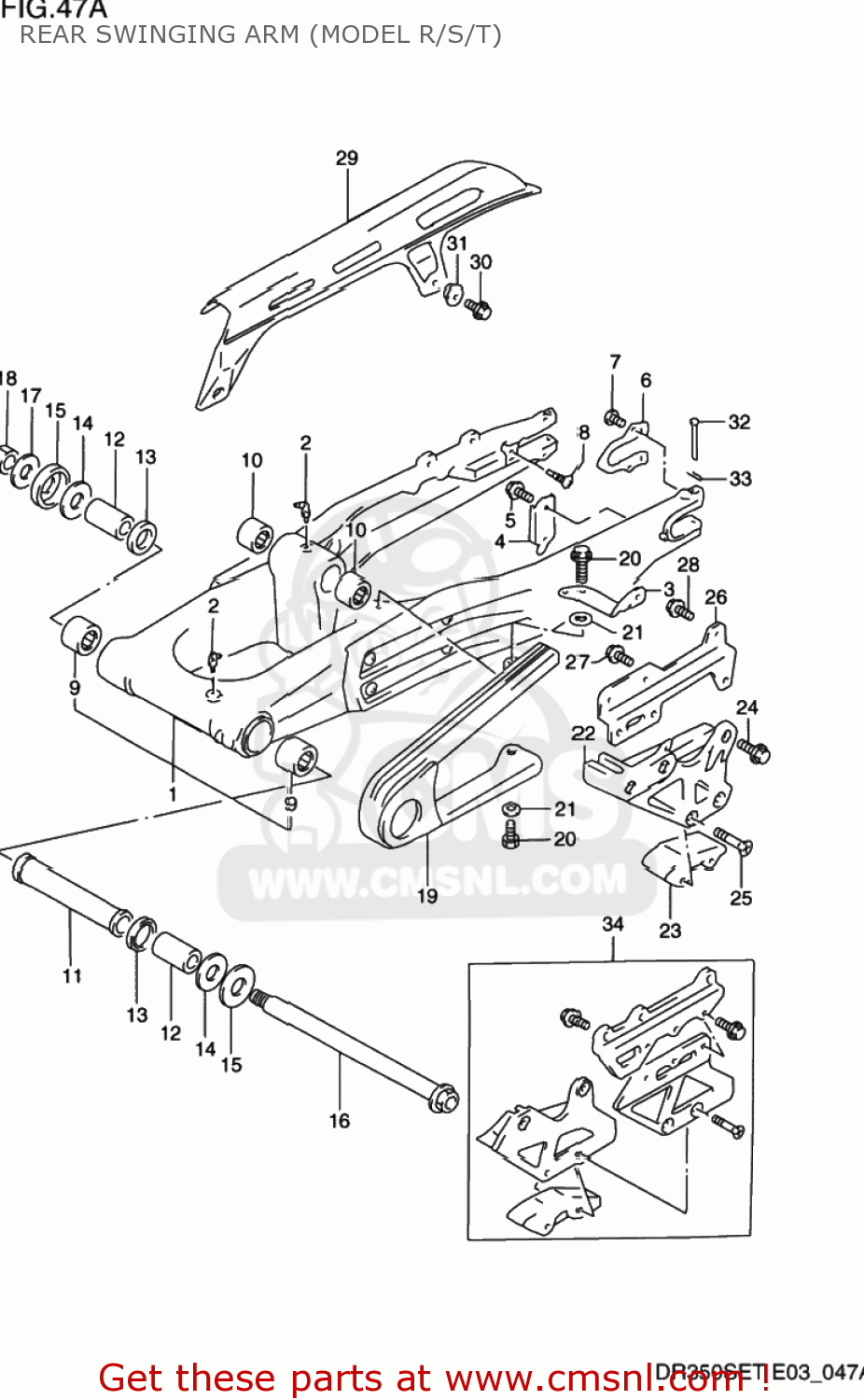

Rear swinging arm (model r/s/t) diagram DR350SE 1991 (M) USA (E03)
REAR SWINGING ARM (MODEL R/S/T) DR350SE 1991 (M) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100015D50
ref: 1-1
61000-14D50
SWING ARM ASSEMBLY,REAR
€ 892.50
1-2
6100014D50
ref: 1-2
SWINGINGARM ASSY,RR
€ 892.50
2
0835131008
ref: 2
08351-3100A
NIPPLE,GREASE
€ 10.50
3
6114015D10
ref: 3
PLATE,CHAIN CASE FTG FR
€ 10.00
4
6114415D10
ref: 4
PLATE,CHAIN CASE FTG RR
€ 17.50
5
0910305013
ref: 5
BOLT
€ 1.50
6
6112814D00
ref: 6
PLATE,SWING ARM RR
€ 8.00
7
0912505072
ref: 7
09125-05072-XC0
SCREW (5X8)
€ 2.50
8
0913910001
ref: 8
SCREW (M10X21)
€ 6.50
9
0926322017
ref: 9
BEARING(22X29X30)
€ 18.50
10
0926320071
ref: 10
BEARING(20X27X23.5)
€ 21.50
11
0918017097
ref: 11
SPACER,SWING ARM PIVOT,CENTER
€ 12.50
12
6125114D00
ref: 12
SPACER,SWGARM PIVOT BRG
€ 11.00
13
0928522001
ref: 13
SEAL,OIL(22X29X4)
€ 5.00
14
0821117341
ref: 14
WASHER
€ 2.00
15
6126228C10
ref: 15
COVER,SWINGINGARM PIVOT
€ 4.50
16
6121114D00
ref: 16
SHAFT,SWINGING ARM PIVOT
€ 49.50
17
0832201163
ref: 17
08322-0116A
WASHER, FIXED DRIVE FACE
€ 2.00
18
0915916007
ref: 18
NUT
€ 10.50
19
6127314D00
ref: 19
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
20
0150006163
ref: 20
01500-0616A
BOLT
€ 2.00
21
0916906057
ref: 21
WASHER
€ 4.00
22
6134015E00
ref: 22
GUIDE,CHAIN
€ 39.50
23
6134815E00
ref: 23
DEFENSE,CHAIN GUIDE
€ 14.50
24
0155006163
ref: 24
01550-0616A
BOLT
€ 2.50
25
0212206503
ref: 25
02122-0650B
SCREW
€ 3.00
26
6115414D00
ref: 26
BRACKET,CHAIN GUIDE
€ 39.00
27
0155006163
ref: 27
01550-0616A
BOLT
€ 2.50
28
0155006123
ref: 28
01550-0612A
BOLT
€ 2.50
29
6131014A00
ref: 29
CASE,CHAIN
€ 49.00
30
0155006103
ref: 30
01550-0610A
BOLT
€ 2.50
31
0916906026
ref: 31
WASHER
€ 2.00
32
0920006065
ref: 32
PIN
€ 4.00
33
0938506012
ref: 33
CLIP
€ 2.00
34
6130014810
ref: 34
61300-14811
GUIDE SET,CHAIN
€ 123.50
