FRONT MASTER CYLINDER
DR350SE 1994 (R) USA (E03)

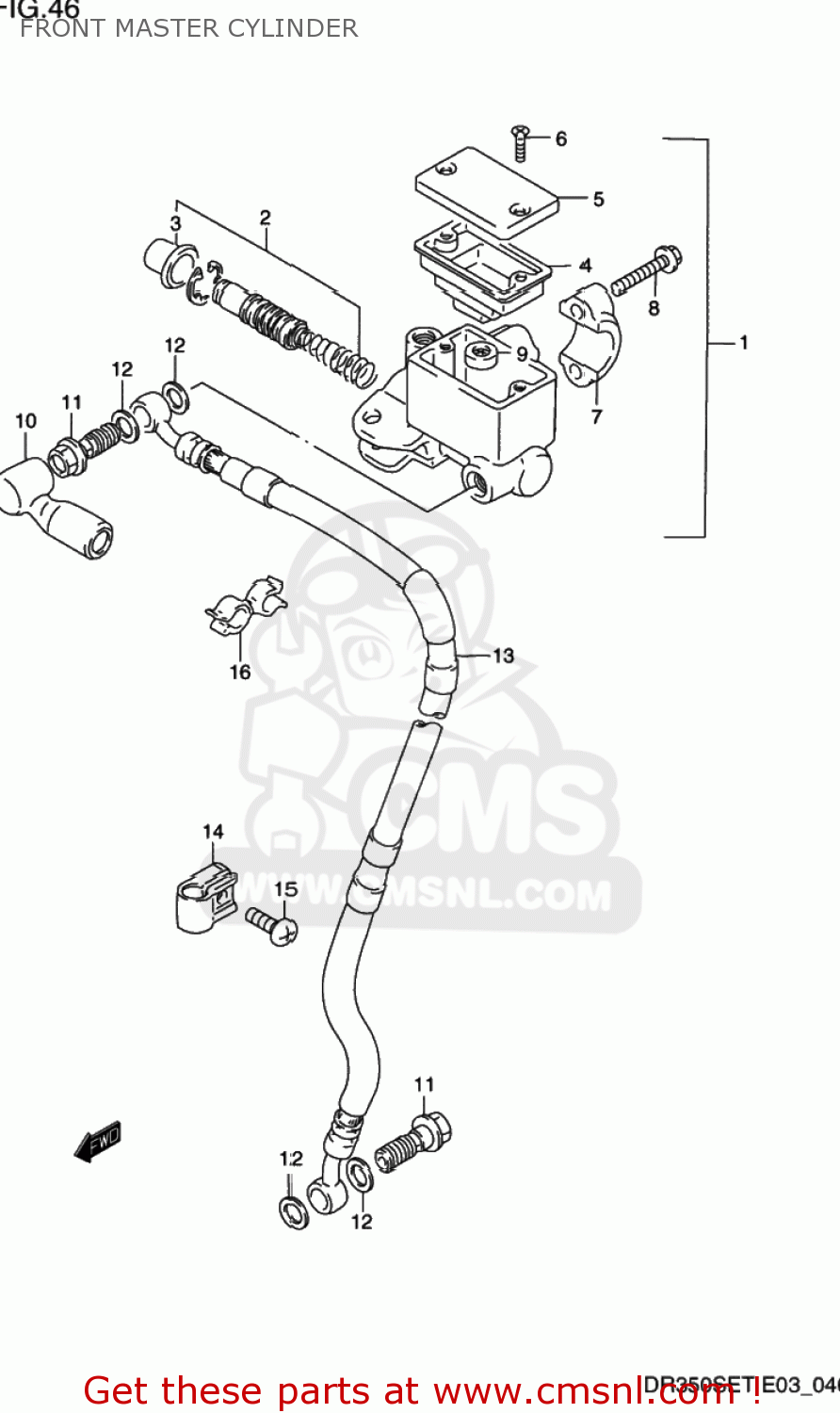

Front master cylinder diagram DR350SE 1994 (R) USA (E03)
FRONT MASTER CYLINDER DR350SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5960003D00
ref: 1
59600-03D01
CYLINDER ASSEMBLY,FRONT MASTER
€ 175.50
2
6960038810
ref: 2
PISTON/CUP SET
€ 42.50
3
5966644300
ref: 3
BOOT
€ 6.00
4
5966744B00
ref: 4
DIAPHRAGM
€ 8.00
5
5966903D00
ref: 5
CAP
€ 14.00
6
0212204123
ref: 6
02122-0412A
SCREW
€ 2.00
7
5967103D00
ref: 7
HOLDER
€ 13.00
8
5967527C00
ref: 8
BOLT
€ 2.50
9
5974814500
ref: 9
SEPARATOR
€ 6.00
10
5971104700
ref: 10
BOOT,MASTER CYLINDER
€ 14.50
11-1
0936010017
ref: 11-1
BOLT UNION
€ 6.50
11-2
0936010039
ref: 11-2
09360-10061
BOLT UNION
€ 6.50
12
0916110009
ref: 12
WASHER(10X15X1.5)
€ 2.00
13
5948015D01
ref: 13
HOSE,FR BRAKE
€ 155.00
14
5862107A10
ref: 14
58621-07A20
CLAMP,BRAKE HOSE
€ 3.50
15-1
0211216165
ref: 15-1
02112-1616A
SCREW
€ 2.00
15-2
0214206163
ref: 15-2
02142-0616A
SCREW
€ 2.50
16
0940800145
ref: 16
CLIP
€ 3.50
