REAR WHEEL (MODEL L/M/N/P/R/S)

DR350SE 1994 (R) USA (E03)

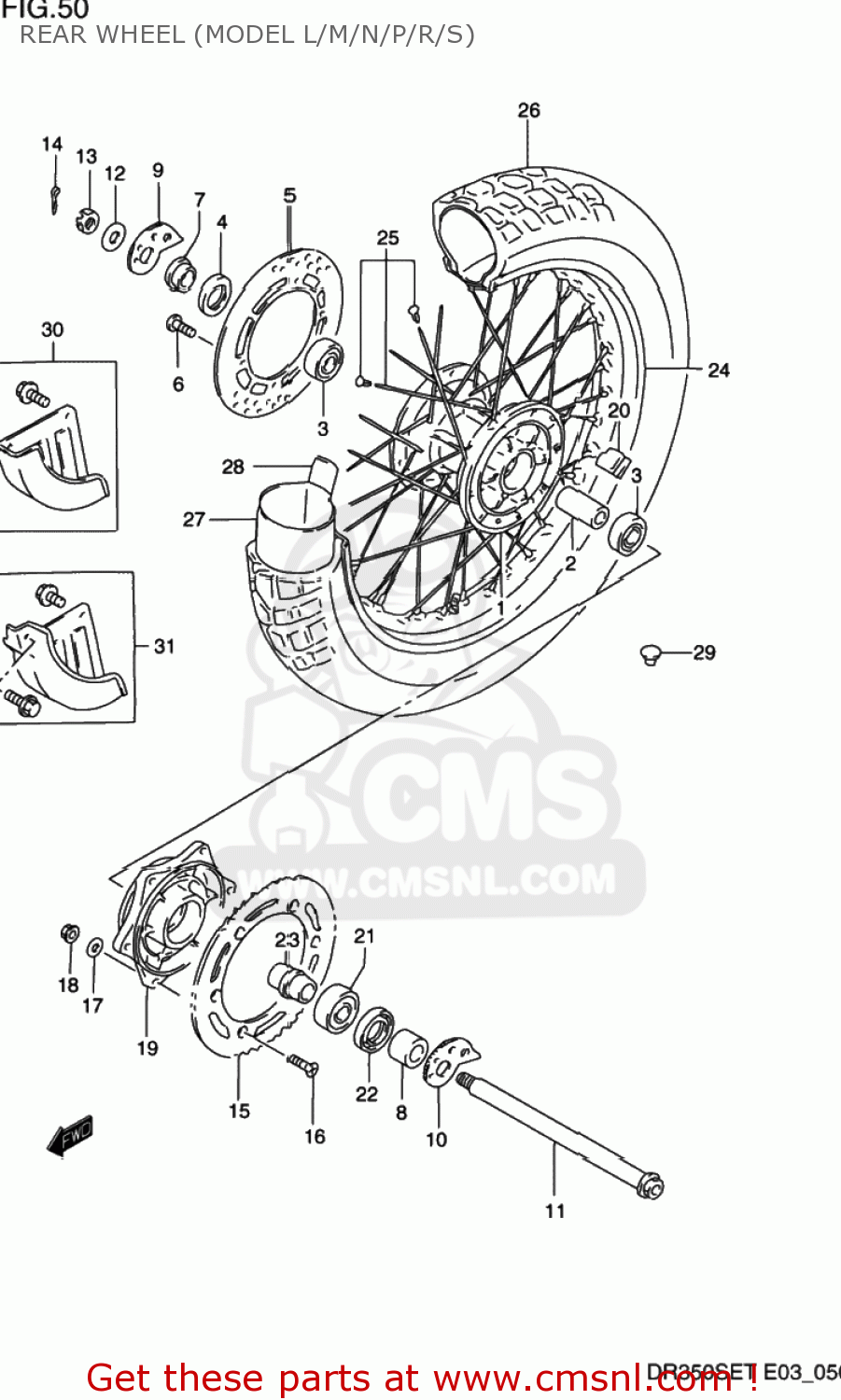

Rear wheel (model l/m/n/p/r/s) diagram DR350SE 1994 (R) USA (E03)

REAR WHEEL (MODEL L/M/N/P/R/S) DR350SE 1994 (R) USA (E03)
REAR WHEEL (MODEL L/M/N/P/R/S) DR350SE 1994 (R) USA (E03)
REAR WHEEL (MODEL L/M/N/P/R/S) DR350SE 1994 (R) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
6411115D00
ref: 1
HUB,RR WHEEL
6411115D00
€ 307.50
2
6473115D00
ref: 2
SPACER,RR HUB BEARING
6473115D00
€ 14.00
3
0812362047
ref: 3
BEARING
0812362047
€ 17.00
4
0928326019
ref: 4
SEAL,OIL(26X47X5)
0928326019
€ 9.50
5
6921103D01
ref: 5
DISC,RR BRAKE
6921103D01
€ 160.00
6-1
0910608091
ref: 6-1
09106-08128
BOLT
€ 4.00
6-2
0910608111
ref: 6-2
09106-08128
BOLT
€ 4.00
7
6474105D00
ref: 7
SPACER,RR AXLE,R
6474105D00
€ 9.00
8
6475115D00
ref: 8
SPACER,RR AXLE,L
6475115D00
€ 17.50
9-1
6141014D00
ref: 9-1
61420-05D00
ADJUSTER,CHAIN
6141014D00
€ 26.50
9-2
6141014D10
ref: 9-2
ADJUSTER,CHAIN,R
6141014D10
€ 31.50
10-1
6142114D00
ref: 10-1
ADJUSTER,CHAIN,LEFT
6142114D00
€ 12.00
10-2
6142114D10
ref: 10-2
ADJUSTER,CHAIN,L
6142114D10
€ 15.00
11-1
6471115D01
ref: 11-1
64710-14D20
AXLE,REAR
€ 72.00
11-2
6471115D50
ref: 11-2
AXLE,RR
€ 70.00
12
0916019022
ref: 12
WASHER(19X32X3.2)
0916019022
€ 5.00
13-1
0831441188
ref: 13-1
08314-40187
NUT 18MM
€ 6.00
13-2
0831440183
ref: 13-2
08314-4018A
NUT
0831440183
€ 4.50
14
0411140308
ref: 14
04111-4030A
PIN,COTTER
0411140308
€ 1.50
15-1
6451114D11
ref: 15-1
64511-22D11
SPROCKET,REAR
6451114D11
€ 78.50
15-1
6451114D11
ref: 15-1
64511-22D11
SPROCKET,REAR
6451114D11
€ 78.50
15-2
6451122D10
ref: 15-2
64511-22D11
SPROCKET,REAR
€ 78.50
15-3
6451115D50
ref: 15-3
SPROCKET,RR(NT:41)
6451115D50
€ 60.00
16
0912008010
ref: 16
BOLT(8X30.5)
0912008010
€ 2.50
17-1
0832211088
ref: 17-1
08322-01087
WASHER
0832211088
€ 2.00
17-2
0832201083
ref: 17-2
08322-0108A
WASHER
0832201083
€ 1.50
18
0831931087
ref: 18
NUT
0831931087
€ 2.50
19
6461115D00
ref: 19
64611-15D01
DRUM,REAR SPROCKET MOUNT
€ 75.50
20
6465115D00
ref: 20
ABSORBER,RR HUB SHOCK
6465115D00
€ 9.00
21
0926225061
ref: 21
BEARING(25X52X15)
0926225061
€ 27.50
22
0928334003
ref: 22
SEAL,OIL(34X52X6)
0928334003
€ 9.00
23
6473315D00
ref: 23
RETAINER,RR SPROCKET DRUM
6473315D00
€ 23.00
24
6531115D00
ref: 24
RIM,REAR WHEEL (18X2.15)
€ 250.50
25
6532015D00
ref: 25
SPOKE SET,RR WHEEL
6532015D00
€ 54.50
26-1
6511015D00
ref: 26-1
65110-08D10
TIRE
€ 201.00
26-1
6511015D00
ref: 26-1
65110-08D10
TIRE
€ 201.00
26-2
6511008D10
ref: 26-2
TIRE,REAR 110/90-18
€ 201.00
26-2
6511008D10
ref: 26-2
TIRE,REAR 110/90-18
€ 201.00
26-3
6511015D50
ref: 26-3
TIRE,RR(110/90 18)
€ 0.00
26-3
6511015D50
ref: 26-3
TIRE,RR(110/90 18)
€ 0.00
27
6520042AA0
ref: 27
TUBE ASSEMBLY,WHEEL,INNER
€ 34.00
28
6526115D00
ref: 28
PROTECTOR,WHL INR TUBE
6526115D00
€ 5.50
29
0925008013
ref: 29
CAP(OD:12)
0925008013
€ 2.00
30
6920027C00
ref: 30
COVER SET,REAR BRAKE DRUM
€ 27.00
30
6920027C00
ref: 30
COVER SET,REAR BRAKE DRUM
€ 27.00
30
6920027C00
ref: 30
COVER SET,REAR BRAKE DRUM
€ 27.00
31
6920028C00
ref: 31
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
31
6920028C00
ref: 31
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
31
6920028C00
ref: 31
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
31
6920028C00
ref: 31
COVER SET,RR BRAKE DISC
6920028C00
€ 29.50
