REAR SWINGING ARM (MODEL L/M/N/P)
DR350SE 1994 (R) USA (E03)

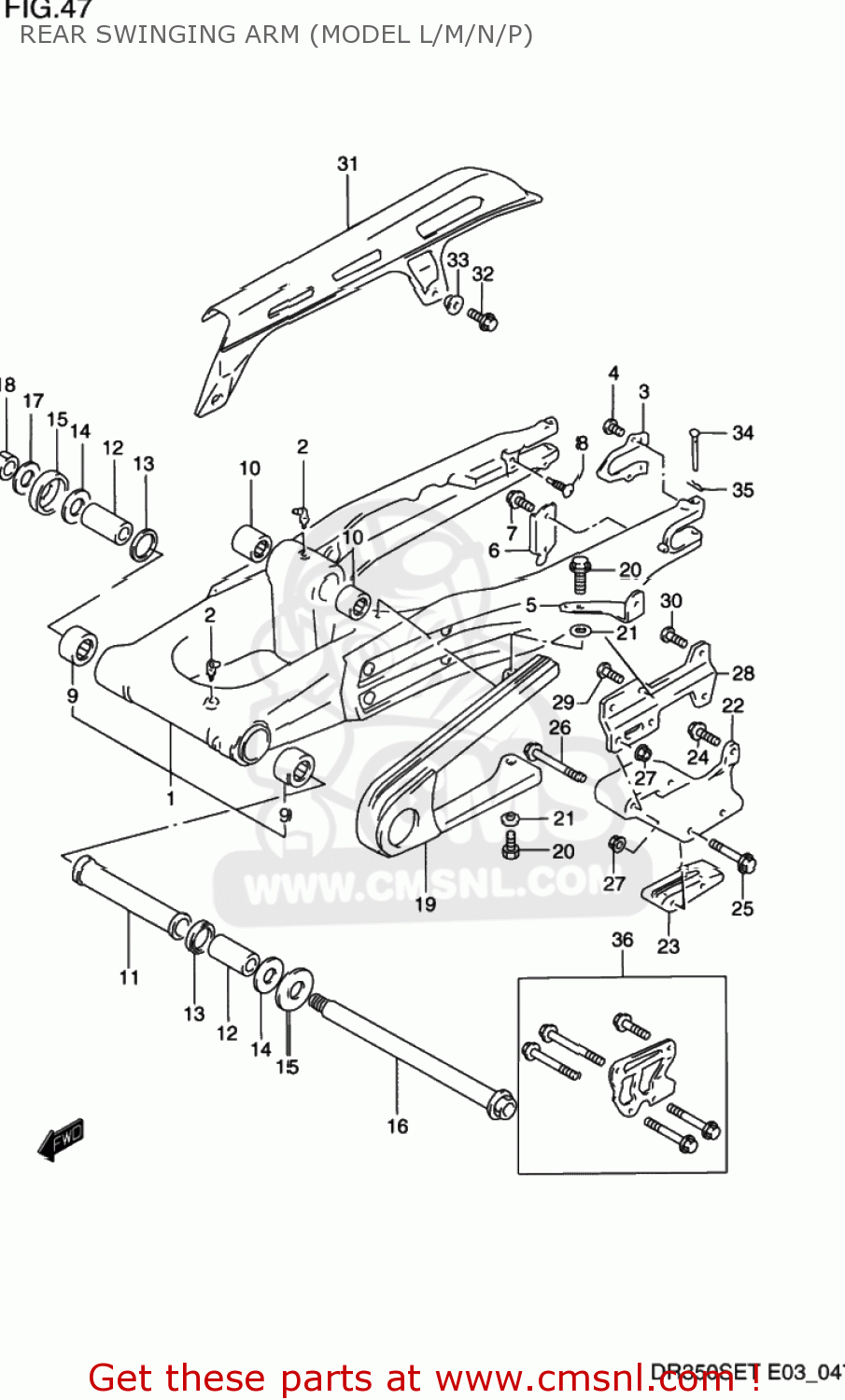

Rear swinging arm (model l/m/n/p) diagram DR350SE 1994 (R) USA (E03)
REAR SWINGING ARM (MODEL L/M/N/P) DR350SE 1994 (R) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6100014D11
ref: 1-1
SWING ARM ASSEMBLY,REAR
€ 892.50
1-2
6100014D20
ref: 1-2
SWING ARM ASSEMBLY,REAR
€ 892.50
2
0835131008
ref: 2
08351-3100A
NIPPLE,GREASE
€ 10.50
3
6112814D00
ref: 3
PLATE,SWING ARM RR
€ 8.00
4
0912505072
ref: 4
09125-05072-XC0
SCREW (5X8)
€ 2.50
5
6114215D00
ref: 5
PLATE,CHAIN CASE FTG FR
€ 24.50
6-1
6114415D00
ref: 6-1
PLATE,CHAIN CASE FTG RR
€ 4.50
6-2
6114415D10
ref: 6-2
PLATE,CHAIN CASE FTG RR
€ 17.50
7
0910305013
ref: 7
BOLT
€ 1.50
8
0913910001
ref: 8
SCREW (M10X21)
€ 6.50
9
0926322017
ref: 9
BEARING(22X29X30)
€ 18.50
10
0926320071
ref: 10
BEARING(20X27X23.5)
€ 21.50
11
0918017097
ref: 11
SPACER,SWING ARM PIVOT,CENTER
€ 12.50
12
6125114D00
ref: 12
SPACER,SWGARM PIVOT BRG
€ 11.00
13
0928522001
ref: 13
SEAL,OIL(22X29X4)
€ 5.00
14
0821117341
ref: 14
WASHER
€ 2.00
15
6126228C10
ref: 15
COVER,SWINGINGARM PIVOT
€ 4.50
16
6121114D00
ref: 16
SHAFT,SWINGING ARM PIVOT
€ 49.50
17
0832211168
ref: 17
08322-01167
WASHER
€ 2.00
18
0915916007
ref: 18
NUT
€ 10.50
19
6127314D00
ref: 19
BUFFER,CHAIN TOUCH DEFENSE
€ 34.00
20
0110706167
ref: 20
01500-06167
BOLT
€ 3.00
21
0916906057
ref: 21
WASHER
€ 4.00
22
6134127C00
ref: 22
GUIDE,CHAIN
€ 20.00
23
6134814D00
ref: 23
DEFENSE,CHAIN GUIDE
€ 17.50
24
0151706257
ref: 24
01550-06257
BOLT 6X25
€ 2.50
25
0151706458
ref: 25
01550-06457
BOLT,UNDER
€ 2.50
26
0151706557
ref: 26
01550-06557
BOLT
€ 2.50
27
0831931067
ref: 27
NUT
€ 2.50
28
6115414D00
ref: 28
BRACKET,CHAIN GUIDE
€ 39.00
29-1
0913906024
ref: 29-1
09139-06067
SCREW
€ 3.00
29-2
0151706167
ref: 29-2
01550-06167
BOLT 6X16
€ 1.50
30-1
0913906062
ref: 30-1
SCREW(6X12)
€ 3.00
30-2
0151706128
ref: 30-2
01550-06127
BOLT
€ 2.50
31
6131014A00
ref: 31
CASE,CHAIN
€ 49.00
32
0151706105
ref: 32
01550-0610A
BOLT
€ 2.50
33
0916906026
ref: 33
WASHER
€ 2.00
34
0920006065
ref: 34
PIN
€ 4.00
35
0938506012
ref: 35
CLIP
€ 2.00
36
6130014D00
ref: 36
PLATE SET,CHAIN GUIDE
€ 18.50
