FRAME COVER (MODEL G)

DR600RU 1987 (H)

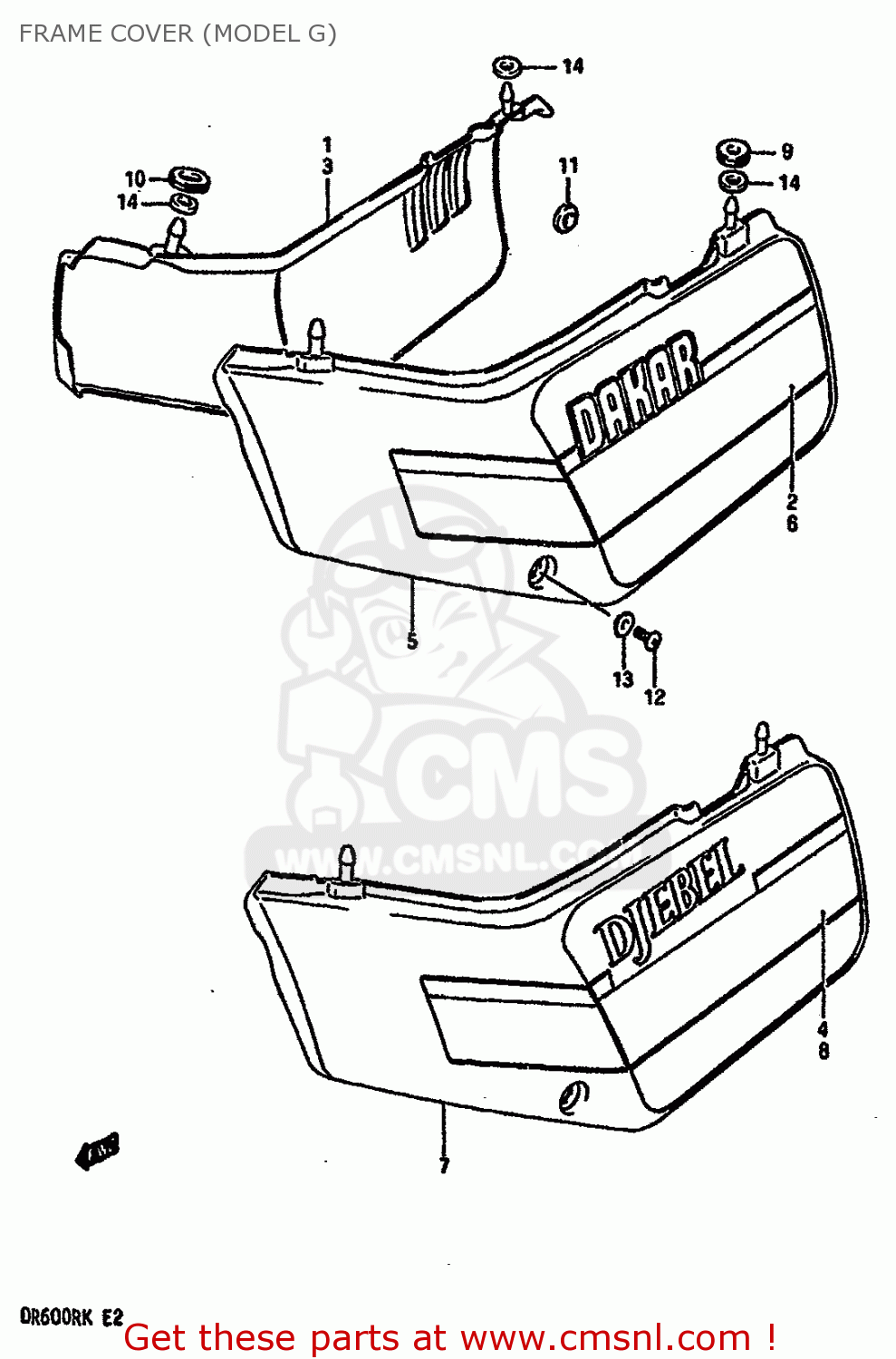

Frame cover (model g) diagram DR600RU 1987 (H)

FRAME COVER (MODEL G) DR600RU 1987 (H)

FRAME COVER (MODEL G) DR600RU 1987 (H)

prices are in EUR

ref

part #

description

quantity

1

4711014A0010V
ref: 1

COVER, FRAME RH (WHITE)

€ 69.00

2

6813014A208LC
ref: 2

TAPE SET, FRAME COVER RH

€ 21.00

3

4711014A2010V
ref: 3
E4

COVER,FRAME RH (WHITE)

€ 69.00

4

6813014A409BJ
ref: 4
E4

TAPE SET,SIDE COVER RH

€ 26.00

5

4721014A0010V
ref: 5

COVER, FRAME LH (WHITE)

€ 59.00

6

6814014A208LC
ref: 6

TAPE SET, FRAME COVER LH

€ 18.50

7

4721014A2010V
ref: 7
E4

COVER,FRAME LH (WHITE)

€ 59.00

8

6814014A409BJ
ref: 8
E4

TAPE SET,SIDE COVER LH

€ 0.00

9

0932008018
ref: 9

CUSHION

€ 4.00

10

0932908003
ref: 10

CUSHION

€ 3.50

11

0932110013
ref: 11

CUSHION

€ 5.00

12

0214206125
ref: 12

SCREW 6X12

€ 2.00

13

0916906041
ref: 13

WASHER

€ 2.00

14

4716114A00
ref: 14

CUSHION,SIDE COVER BOSS

€ 2.50
