GEAR SHIFTING
DR600RU 1987 (H)

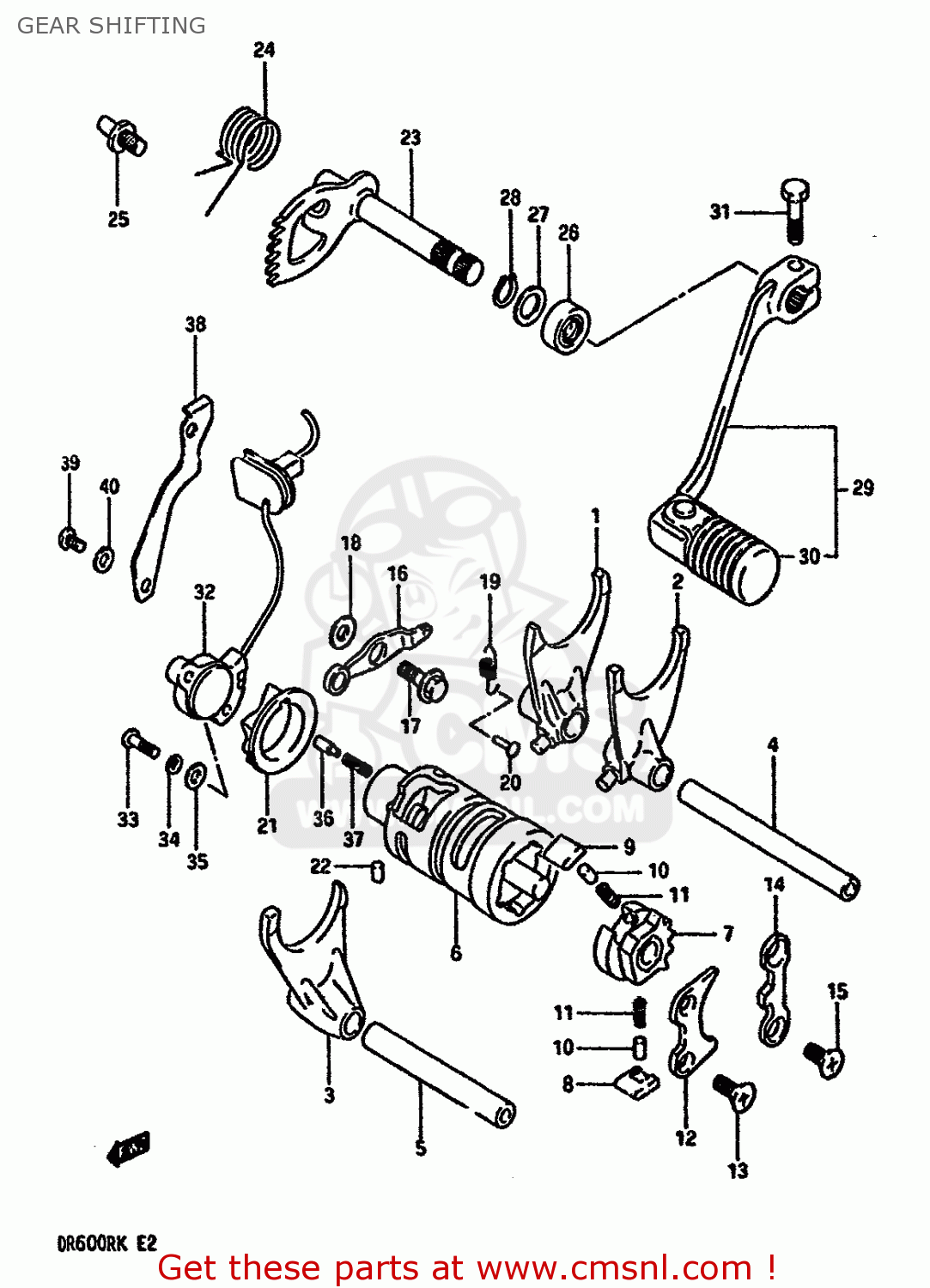

Gear shifting diagram DR600RU 1987 (H)
GEAR SHIFTING DR600RU 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
2521137400
ref: 1
FORK,GEAR SHIFT NO.1
€ 58.50
2
2522137400
ref: 2
FORK,GEAR SHIFT NO.2
€ 58.50
3
2523114A00
ref: 3
FORK,GEAR SHIFT NO.3
€ 54.50
4
2541114500
ref: 4
L:95
SHAFT,GEAR SHIFT FORK
€ 14.50
5
2542114A00
ref: 5
L:75
SHAFT,GEAR SHIFT FORK
€ 14.50
6
2531037400
ref: 6
CAM,GEAR SHIFT
€ 91.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533114A00
ref: 12
LIFTER,GEAR SHAFT PAWL
€ 6.00
13
0212206128
ref: 13
SCREW
€ 3.00
14
2534140001
ref: 14
STOPPER,GEAR SHIFT POLE
€ 6.50
15
0212206128
ref: 15
SCREW
€ 3.00
16
2535037400
ref: 16
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106019
ref: 17
BOLT
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19
0944308040
ref: 19
SPRING
€ 2.00
20
0922304001
ref: 20
RIVET
€ 1.50
21
2538137400
ref: 21
PLATE,SHIFT CAM STOPPER
€ 10.50
22
0621104063
ref: 22
PIN 4X6
€ 2.00
23
2551014A02
ref: 23
SHAFT,GEAR SHIFT
€ 64.00
24
0944426012
ref: 24
SPRING
€ 3.50
25
2567101000
ref: 25
STOPPER,GEAR SHIFT CAM
€ 3.00
26
0928512002
ref: 26
OIL SEAL
€ 7.00
27
0821212201
ref: 27
WASHER
€ 1.50
28
0833131128
ref: 28
CIRCLIP
€ 2.00
29
2560014A03
ref: 29
LEVER ASSEMBLY,GEAR SHIFTING
€ 95.50
30
2565214A00
ref: 30
RUBBER,GEAR SHIFT PEDAL
€ 9.50
31
0910006100
ref: 31
BOLT
€ 2.00
32-1
3772014A00
ref: 32-1
MODEL G/H
TERMINAL BASE,NEUTRAL
€ 50.50
32-2
3772014A10
ref: 32-2
MODEL J/K
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 72.50
33
0211205166
ref: 33
SCREW
€ 2.00
34
0832121056
ref: 34
LOCK WASHER
€ 3.00
35
0832221056
ref: 35
WASHER
€ 2.50
36
0920905011
ref: 36
PIN(5X15.5)
€ 2.00
37
0944004010
ref: 37
SPRING
€ 1.50
38
3772114A00
ref: 38
CLAMP,LEAD WIRE
€ 3.50
39
0211206106
ref: 39
SCREW
€ 1.50
40
0832121066
ref: 40
WASHER,LOCK
€ 2.00
