REAR MASTER CYLINDER (MODEL K)
DR600RU 1987 (H)

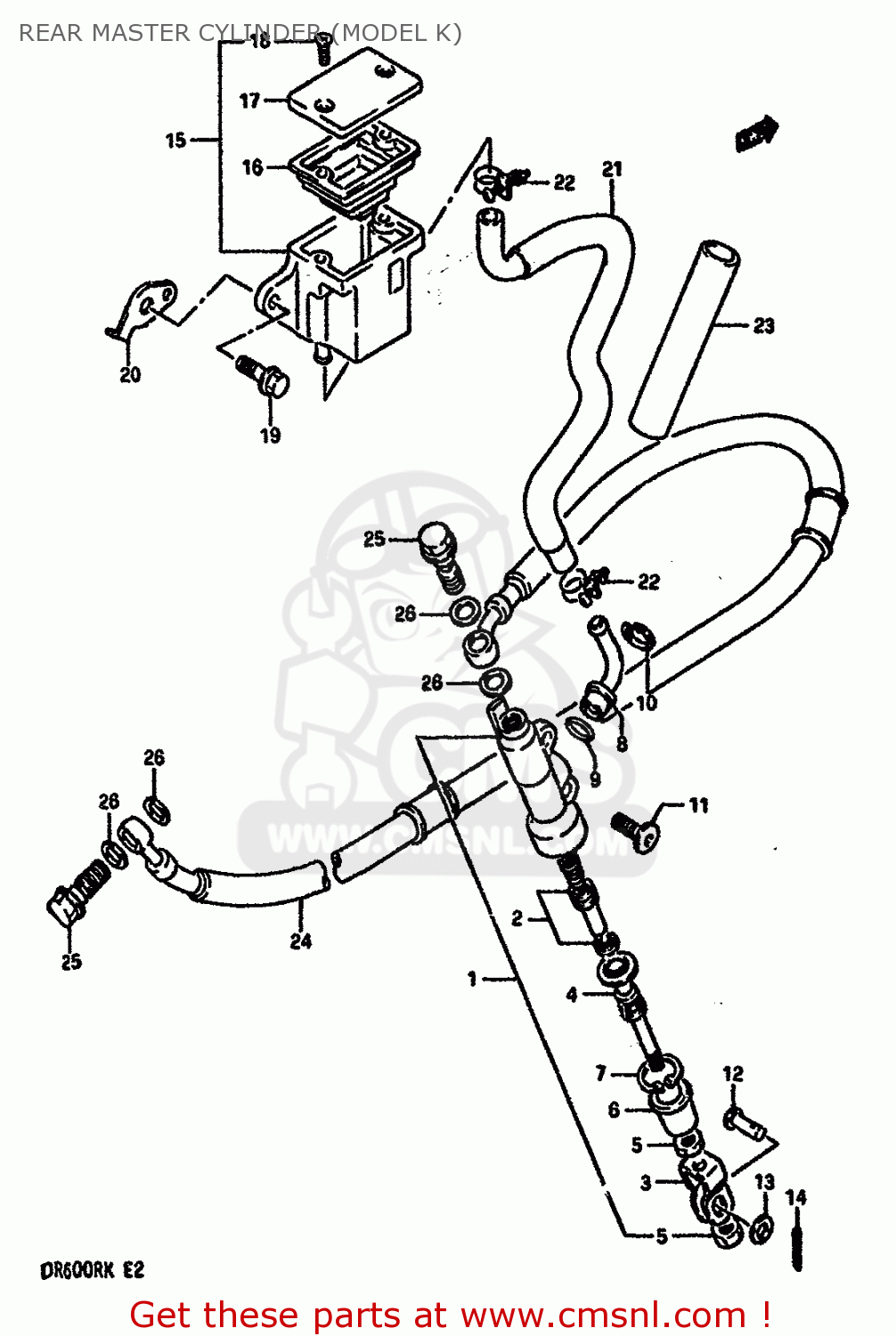

Rear master cylinder (model k) diagram DR600RU 1987 (H)
REAR MASTER CYLINDER (MODEL K) DR600RU 1987 (H)
×
prices are in EUR
ref
part #
description
quantity
1
6960014A51
ref: 1
CYLINDER ASSY,RR MASTER
€ 168.50
2
6960034810
ref: 2
PISTON/CUP SET
€ 36.50
3
6969227A30
ref: 3
YOKE
€ 12.50
4
6967000B21
ref: 4
ROD,PUSH
€ 24.00
5
6969305A00
ref: 5
NUT
€ 1.50
6
6969100A00
ref: 6
BOOT
€ 3.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
6967200B20
ref: 8
CONNECTOR
€ 5.00
9
6968634200
ref: 9
O RING
€ 3.50
10
6967400B20
ref: 10
CIRCLIP
€ 3.00
11
0910606064
ref: 11
BOLT(6X18)
€ 6.00
12
0920006037
ref: 12
PIN
€ 5.00
13
0832221067
ref: 13
WASHER
€ 2.00
14
0411120158
ref: 14
PIN
€ 1.50
15
6974038B20
ref: 15
TANK ASSEMBLY,RESERVOIR
€ 85.50
16
5966704700
ref: 16
DIAPHRAGM
€ 8.00
17
6966924A00
ref: 17
CAP
€ 12.00
18
6968904A00
ref: 18
SCREW
€ 2.00
19
0151706258
ref: 19
BOLT
€ 2.50
20
6975114A01
ref: 20
PLATE,RESERVOIR TANK
€ 0.00
21
6973114A01
ref: 21
HOSE,RESERVOIR TANK
€ 0.00
22
0940014301
ref: 22
CLAMP
€ 3.00
23
6973214A00
ref: 23
SHIELD,HOSE
€ 10.50
24
6948014A01
ref: 24
HOSE,REAR BRAKE
€ 79.00
25
0936010017
ref: 25
BOLT UNION
€ 6.50
26
0916110009
ref: 26
WASHER(10X15X1.5)
€ 2.00
