REAR SHOCK ABSORBER

DR600RU 1987 (H)

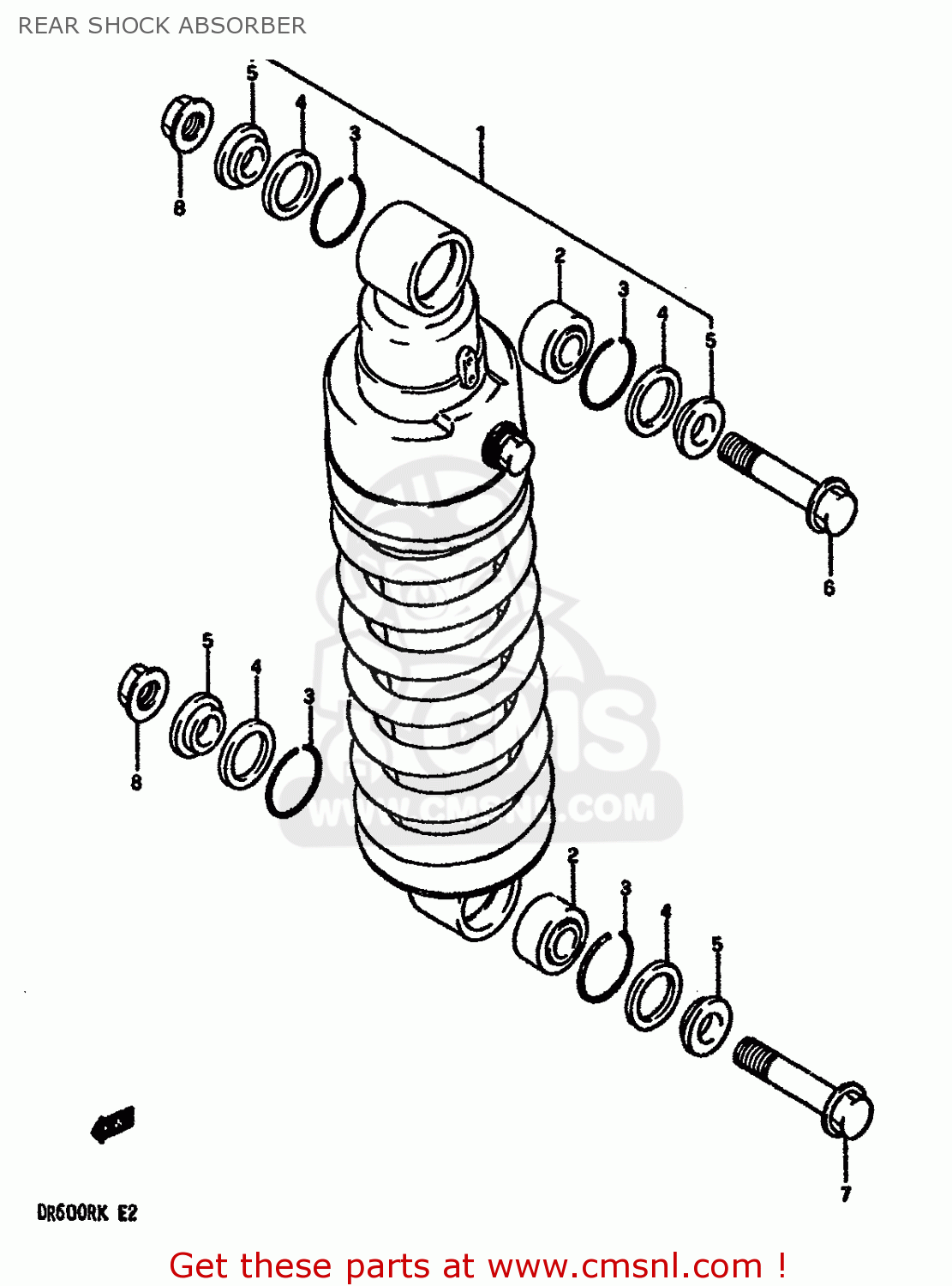

Rear shock absorber diagram DR600RU 1987 (H)

REAR SHOCK ABSORBER DR600RU 1987 (H)

REAR SHOCK ABSORBER DR600RU 1987 (H)

prices are in EUR

ref

part #

description

quantity

1-1

6210014A0219F
ref: 1-1
MODEL G

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

1-2

6210014A0234S
ref: 1-2
MODEL H/J/K

ABSORBER ASSY, REAR SHOCK (BLUE)

€ 724.00

2

6217543400
ref: 2

BEARING,REAR SHOCK ABSORBER

€ 66.00

3

6227714200
ref: 3

RING

€ 1.50

4

6222614520
ref: 4

SEAL,DUST RR SHOCK ABSORBER

€ 12.50

5

6268414520
ref: 5

COLLAR

€ 7.00

6

0910310040
ref: 6

BOLT(10X54)

€ 5.50

7

0910310030
ref: 7

BOLT(10X52)

€ 8.50

8

0831931107
ref: 8

NUT

€ 3.00
