CRANKSHAFT

DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

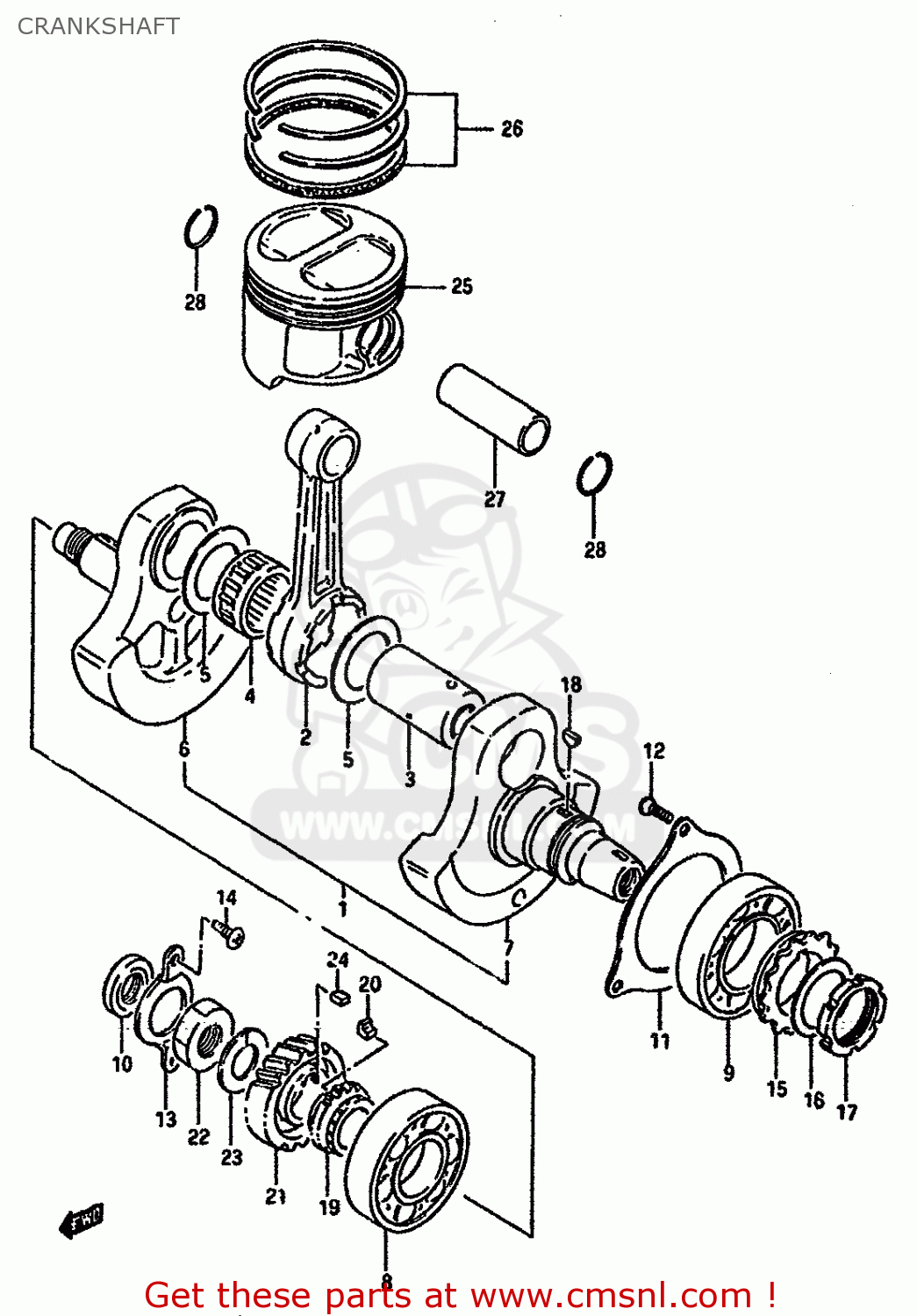

Crankshaft diagram DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

CRANKSHAFT DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
CRANKSHAFT DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
CRANKSHAFT DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
prices are in EUR
ref
part #
description
quantity
1
1220014A02
ref: 1
CRANKSHAFT ASSEMBLY
€ 669.50
2
1216114A11
ref: 2
CONNECTING ROD
€ 165.00
3
1221014A01
ref: 3
PIN,CRANK
1221014A01
€ 48.00
4
0926337002
ref: 4
BEARING
€ 33.00
5
0916037006
ref: 5
WASHER(37X55X1)
0916037006
€ 8.50
6
1222114A01
ref: 6
CRANKSHAFT,RIGHT
1222114A01
€ 39.50
7
1226114A02
ref: 7
CRANKSHAFT,LEFT
€ 0.00
8
0926235009
ref: 8
BEARING(35X80X21)
0926235009
€ 68.50
9
0926245003
ref: 9
BEARING
0926245003
€ 50.00
10
0928216002
ref: 10
SEAL,OIL(16X30X6)
0928216002
€ 8.50
11
1254137400
ref: 11
RETAINER,CRANKSHAFT BEARING,L
1254137400
€ 13.50
12
0212206167
ref: 12
SCREW
0212206167
€ 2.00
13
1254837400
ref: 13
RETAINER,CRANKSHAFT BEARING,R
1254837400
€ 6.50
14
0211205088
ref: 14
SCREW
0211205088
€ 2.00
15
1266214A10
ref: 15
NT:31
SPROCKET,BALANCER DRIVE
€ 30.50
16
0916440003
ref: 16
WASHER
0916440003
€ 3.50
17
1266437401
ref: 17
NUT,FLYWHEEL
€ 26.00
18
0834131039
ref: 18
KEY
0834131039
€ 2.00
19
1273137400
ref: 19
SPROCKET,CAM CHAIN DRIVE
1273137400
€ 91.00
20
1274932400
ref: 20
KEY,SPROCKET
1274932400
€ 13.50
21
2111114A00
ref: 21
GEAR,PRIMARY DRIVE
€ 49.50
22
0914020008
ref: 22
NUT (20MM)
0914020008
€ 4.00
23
0916420003
ref: 23
WASHER
0916420003
€ 2.50
24
0942107002
ref: 24
KEY
0942107002
€ 4.00
25-1
1211114A02
ref: 25-1
PISTON (94.00MM)
1211114A02
€ 113.00
25-2
1211114A02050
ref: 25-2
OPT
PISTON (OS:0.5)
€ 164.50
25-3
1211114A02100
ref: 25-3
OPT
PISTON (OS:1.0)
1211114A02100
€ 152.50
26-1
1214014A40
ref: 26-1
RING SET,PISTON
1214014A40
€ 62.50
26-2
1214014A40050
ref: 26-2
OPT
RING SET,PISTON (OS:0.5)
€ 37.50
26-3
1214014A40100
ref: 26-3
OPT
RING SET,PISTON
1214014A40100
€ 33.00
27
1215114A01
ref: 27
PIN,PISTON
1215114A01
€ 18.00
28
0938123003
ref: 28
CIRCLIP
0938123003
€ 1.50
