REAR COMBINATION LAMP

DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

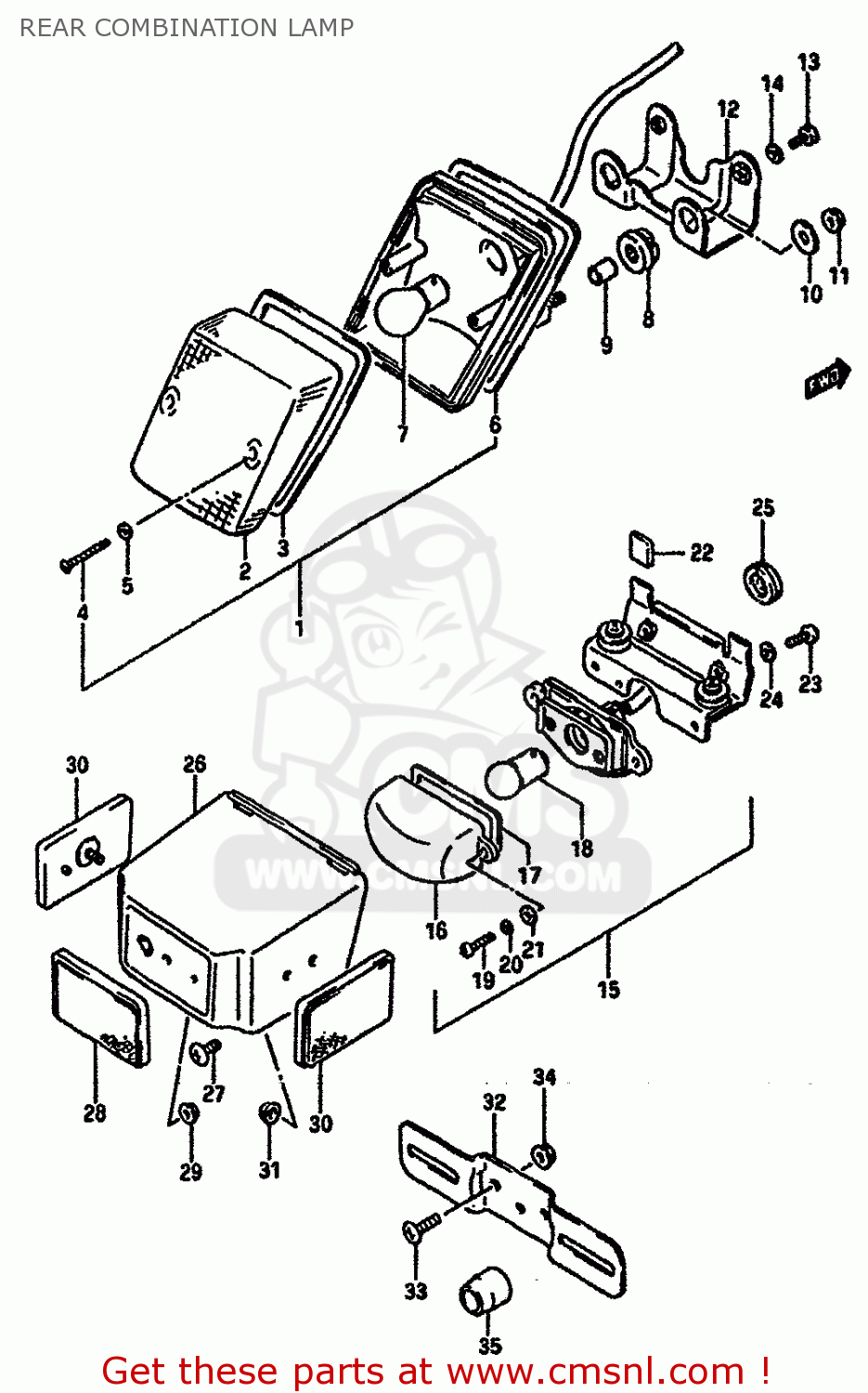

Rear combination lamp diagram DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

REAR COMBINATION LAMP DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
REAR COMBINATION LAMP DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
REAR COMBINATION LAMP DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
prices are in EUR
ref
part #
description
quantity
1-1
3571014A00999
ref: 1-1
E1,E6,E24
LAMP ASSY,REAR COMBINATION
€ 159.00
1-2
3571014A50
ref: 1-2
E2,E4,E15,E16,E17,E1
LAMP ASSY, REAR COMBINATION
3571014A50
€ 159.00
2
3571214A00
ref: 2
LENS,RR COMBI
3571214A00
€ 44.00
3
3571314A00
ref: 3
GASKET,REAR COMBINATION LAMP
€ 9.50
4
0321104258
ref: 4
SCREW TAPP.
0321104258
€ 2.00
5
3562743010
ref: 5
GASKET (NAS)
3562743010
€ 2.00
6
3573314A00
ref: 6
GASKET
€ 0.00
7-1
0947112083
ref: 7-1
E2,E4,E15,E16,E17,E1
BULB(12V21/5W)
0947112083
€ 6.00
7-2
0947112084
ref: 7-2
E1,E6,E24
BULB(12V23/8W,TOKAI DENSO)
0947112084
€ 6.00
8
0932009018
ref: 8
CUSHION
0932009018
€ 2.00
9
0918006030
ref: 9
SPACER (6.8X10X10)
0918006030
€ 2.00
10
0916006027
ref: 10
WASHER (6.5X20X1.2)
0916006027
€ 2.00
11
0831011066
ref: 11
NUT
€ 2.00
12
3572614A00
ref: 12
BRACKET,REAR COMBINATION LAMP
€ 7.00
13
0110706126
ref: 13
BOLT
€ 2.00
14
0832121066
ref: 14
WASHER,LOCK
0832121066
€ 2.00
15-1
3591014A00
ref: 15-1
E1,E6,E24
LAMP ASSEMBLY,LICENSE
3591014A00
€ 71.00
15-2
3591014A50
ref: 15-2
E2,E4,E15,E16,E17,E1
LAMP ASSY, LICENSE
3591014A50
€ 64.50
16-1
3591200A10
ref: 16-1
E1,E6,E24
LENS,LICENSE LAMP
3591200A10
€ 16.00
16-2
3591200A20
ref: 16-2
E2,E4,E15,E16,E17,E1
LENS,LICENSE LAMP
3591200A20
€ 24.00
17
3591304A00
ref: 17
GASKET,LICESE LAMP (NAS)
3591304A00
€ 4.00
18-1
0947112037
ref: 18-1
E1,E6,E24
BULB
€ 7.00
18-2
0947112140
ref: 18-2
E2,E4,E15,E16,E17,E1
BULB(12V5W,BF150-40160A)
€ 4.00
19
0211204167
ref: 19
SCREW
0211204167
€ 1.00
20
0832121047
ref: 20
WASHER,LOCK 4M
0832121047
€ 2.00
21
0832221047
ref: 21
WASHER 4MM
0832221047
€ 2.00
22
3593614A00
ref: 22
CAP,LICENSE
€ 0.00
23
0211206206
ref: 23
SCREW
0211206206
€ 2.00
24
0832121066
ref: 24
WASHER,LOCK
0832121066
€ 2.00
25
0930807011
ref: 25
GROMMET
0930807011
€ 3.50
26-1
3591714A00
ref: 26-1
COVER,LICENSE LAMP
€ 6.50
26-2
3591714A30
ref: 26-2
E39
COVER,LICENSE LAMP
3591714A30
€ 33.50
27
0214205164
ref: 27
SCREW
0214205164
€ 2.50
28-1
3597017300
ref: 28-1
E1,E6,E24
REFLEX REFLECTOR,RR
3597017300
€ 16.50
28-2
3597014A00
ref: 28-2
E2,E4,E15,E16,E17,E1
RR ASSY,RR
3597014A00
€ 15.50
29
0831626055
ref: 29
NUT
0831626055
€ 2.00
30
3595014A50
ref: 30
E39
REFLEX REFLECTOR, REAR SIDE
€ 0.00
31
0831626055
ref: 31
E39
NUT
0831626055
€ 2.00
32
3592714A00
ref: 32
BRACKET, LICENSE PLATE
€ 8.50
33
0214206164
ref: 33
SCREW
0214206164
€ 2.50
34
0831616066
ref: 34
NUT
€ 2.50
35
0932008035
ref: 35
CUSHION
€ 0.00
