MAGNETO (MODEL G/H/J/K)

DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

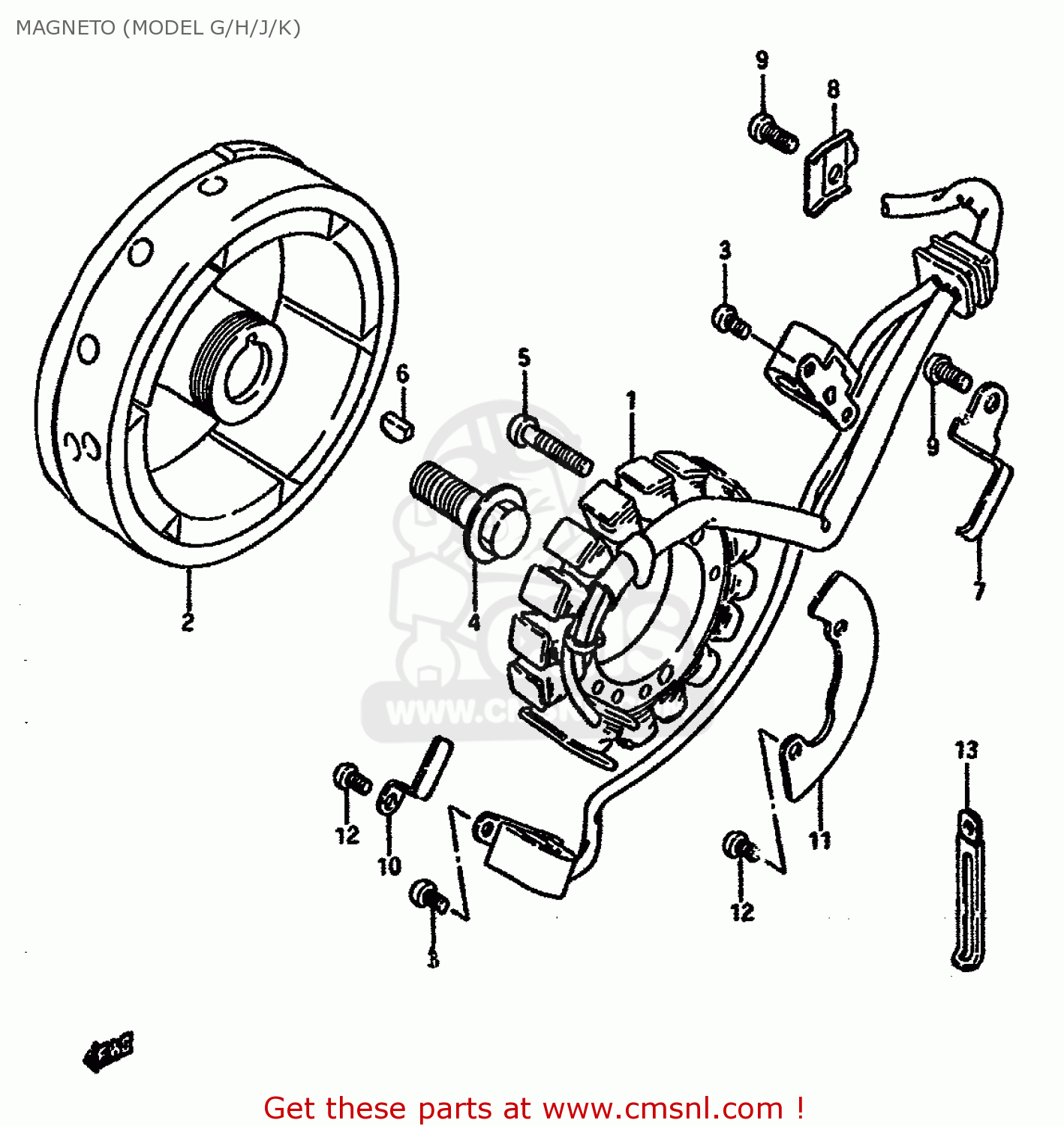

Magneto (model g/h/j/k) diagram DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

MAGNETO (MODEL G/H/J/K) DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

MAGNETO (MODEL G/H/J/K) DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

prices are in EUR

ref

part #

description

quantity

1

3210114A10
ref: 1

STATOR ASSY

€ 694.00

2

3210214A10
ref: 2

ROTOR,FLYWHEEL

€ 439.00

3

0211205128
ref: 3

SCREW

€ 2.50

4

0910314001
ref: 4

BOLT(14X43)

€ 7.00

5

0211206308
ref: 5

SCREW 6X30

€ 2.50

6

0834131049
ref: 6

KEY 4MM

€ 3.50

7

3237114A00
ref: 7

CLAMP,MAGNETO LEAD WIRE

€ 3.50

8

3237137410
ref: 8

CLAMP,MAGNETO LEAD WIRE

€ 1.50

9

0211206108
ref: 9

SCREW

€ 1.50

10

3237114A10
ref: 10

CLAMP

€ 0.00

11

3237114A20
ref: 11

CLAMP

€ 0.00

12

0211205107
ref: 12

SCREW

€ 2.00

13

0940406402
ref: 13

CLAMP

€ 2.50
