TRANSMISSION

DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

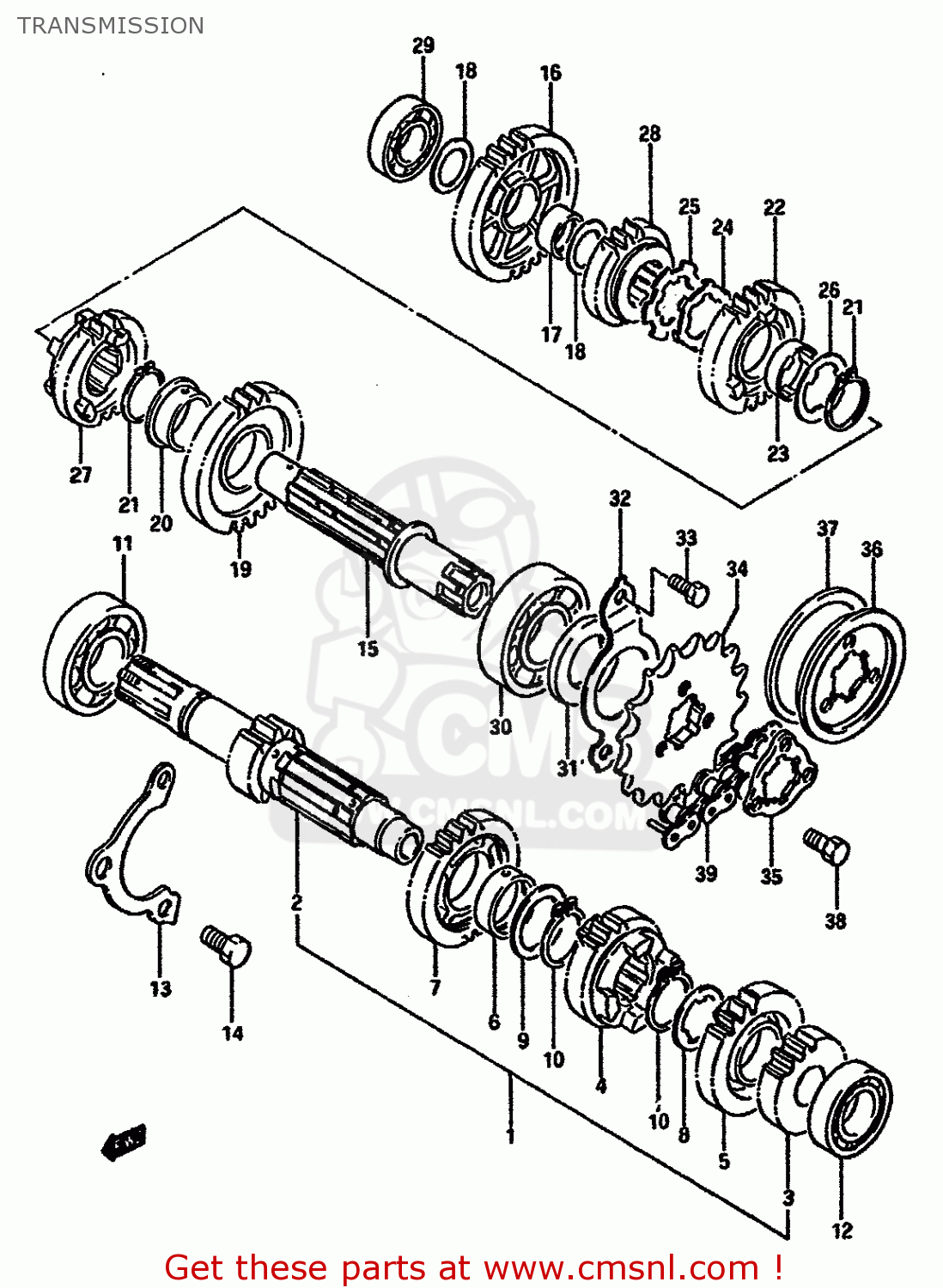

Transmission diagram DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25

TRANSMISSION DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
TRANSMISSION DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
TRANSMISSION DR600S 1985 (F) (E01 E02 E04 E06 E15 E16 E17 E18 E21 E22 E24 E25
prices are in EUR
ref
part #
description
quantity
1
2412014A00
ref: 1
SHAFT ASSEMBLY,COUNTER
€ 322.50
2
2412114A00
ref: 2
SHAFT,COUNTER
2412114A00
€ 185.50
3
2422114A00
ref: 3
GEAR,SECOND DRIVE
2422114A00
€ 66.50
4
2423114A00
ref: 4
GEAR,THIRD/FOURTH DRIVE (NT:
€ 146.50
5
2424114A00
ref: 5
GEAR,FOURTH DRIVE
€ 69.00
6
0930025023
ref: 6
BUSHING 25X29X10
€ 9.50
7
2425114A00
ref: 7
GEAR,5TH DRIVE
2425114A00
€ 105.00
8
0916725012
ref: 8
WASHER,LOCK
0916725012
€ 3.50
9
0821125341
ref: 9
WASHER
0821125341
€ 3.50
10
0938025003
ref: 10
RING,SNAP
0938025003
€ 3.00
11
0926222014
ref: 11
BEARING
0926222014
€ 59.50
12
0926217018
ref: 12
BEARING
0926217018
€ 25.00
13
2474114A00
ref: 13
RETAINER,CNTR SHAFT BEARING
2474114A00
€ 5.00
14
0110708166
ref: 14
BOLT, 8X1.25X1
€ 2.00
15
2413114A00
ref: 15
SHAFT,DRIVE
€ 121.00
16
2431114A00
ref: 16
GEAR,FIRST DRIVEN
€ 67.50
17
0930020032
ref: 17
BUSH(20X24X13)
0930020032
€ 10.00
18
0821120301
ref: 18
WASHER
0821120301
€ 3.00
19
2432114A00
ref: 19
GEAR,2ND DRIVEN
2432114A00
€ 118.00
20
0930125002
ref: 20
BUSH
0930125002
€ 10.50
21
0938025003
ref: 21
RING,SNAP
0938025003
€ 3.00
22
2433114A00
ref: 22
GEAR,THIRD DRIVEN
€ 329.50
23
2433224500
ref: 23
BUSHING
2433224500
€ 9.50
24
0916925001
ref: 24
WASHER
0916925001
€ 2.00
25
0916725013
ref: 25
WASHER,LOCK
0916725013
€ 2.50
26
0916725016
ref: 26
WASHER,LOCK
0916725016
€ 3.00
27
2434114A01
ref: 27
GEAR,FOURTH DRIVEN
€ 67.00
28
2435114A00
ref: 28
GEAR,FIFTH DRIVEN
€ 68.50
29
0926220059
ref: 29
BEARING(20X42X12)
0926220059
€ 14.50
30
0926225066
ref: 30
BEARING(25X62X17)
0926225066
€ 44.50
31
0928325076
ref: 31
SEAL,OIL(25X45X5)
0928325076
€ 9.00
32
2475114A00
ref: 32
RETAINER,DRIVESHAFT O
2475114A00
€ 7.50
33
0110706126
ref: 33
BOLT
€ 2.00
34
2751114A01
ref: 34
SPROCKET,ENGINE(NT:16)
2751114A01
€ 30.00
35
2751214A00
ref: 35
E15,E17 MODEL F/G/H/
PLATE,ENGINE SPROCKET
2751214A00
€ 9.50
36
2751214A11
ref: 36
E2,E4,E16,E18,E21,E2
PLATE,ENGINE SPROCKET
2751214A11
€ 9.50
37
2751714A00
ref: 37
E2,E4,E16,E18,E21,E2
DAMPER,ENGIN SPROCKET
2751714A00
€ 14.00
38
0911106039
ref: 38
BOLT(6X13)
0911106039
€ 6.00
39
2760038430
ref: 39
CHAIN ASSEMBLY,DRIVE
€ 119.50
